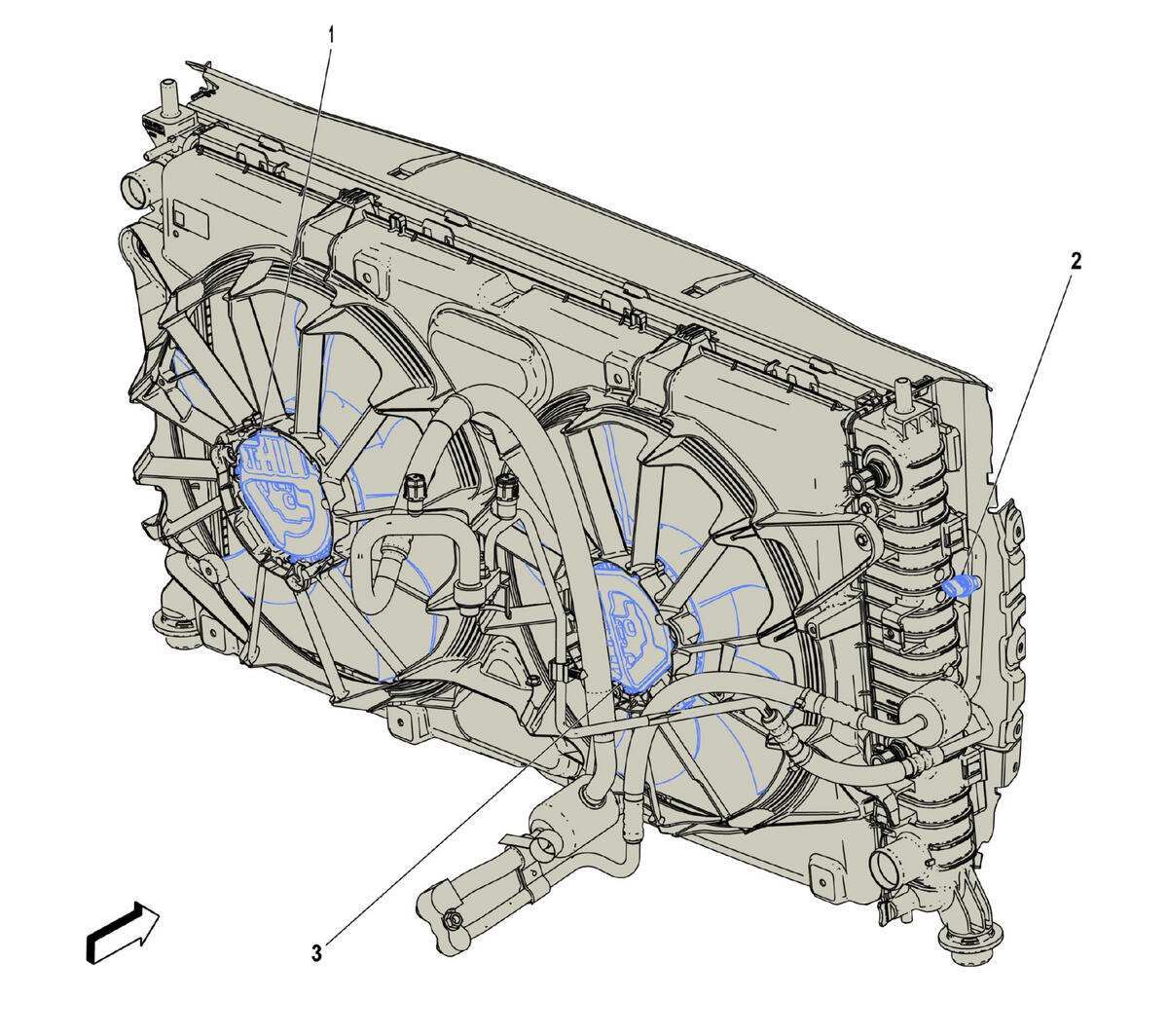

Radiator Components (L84/L87)
Radiator Components (L84/L87)
| Component Name | Callout |
|---|---|
| G10L Engine Cooling Fan Motor - Left G10L Engine Cooling Fan Motor - Left (L84/L87) | 1 |
| B1 Air Conditioning Refrigerant Pressure Sensor B1 Air Conditioning Refrigerant Pressure Sensor | 2 |
| G10R Engine Cooling Fan Motor - Right G10R Engine Cooling Fan Motor - Right (L84/L87) | 3 |
