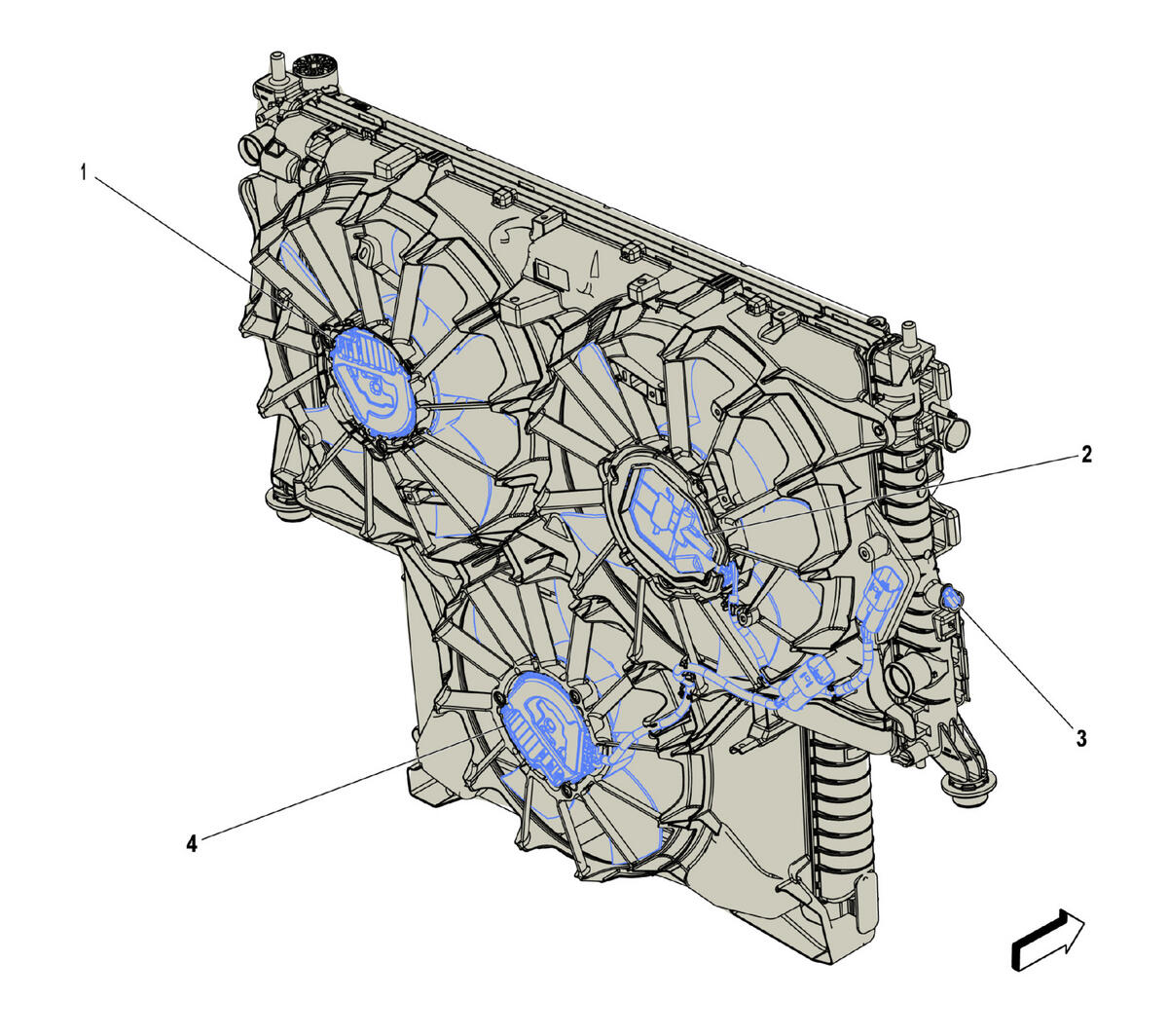

Radiator Components (LM2)
Radiator Components (LM2)
| Component Name | Callout |
|---|---|
| G10L Engine Cooling Fan Motor - Left G10L Engine Cooling Fan Motor - Left (LM2) | 1 |
| G10LW Engine Cooling Fan Motor - Lower (LM2) G10LW Engine Cooling Fan Motor - Lower (LM2) | 2 |
| B203 Radiator Coolant Temperature Sensor (LM2) B203 Radiator Coolant Temperature Sensor (LM2) | 3 |
| G10R Engine Cooling Fan Motor - Right G10R Engine Cooling Fan Motor - Right (LM2) | 4 |
