Installation Procedure

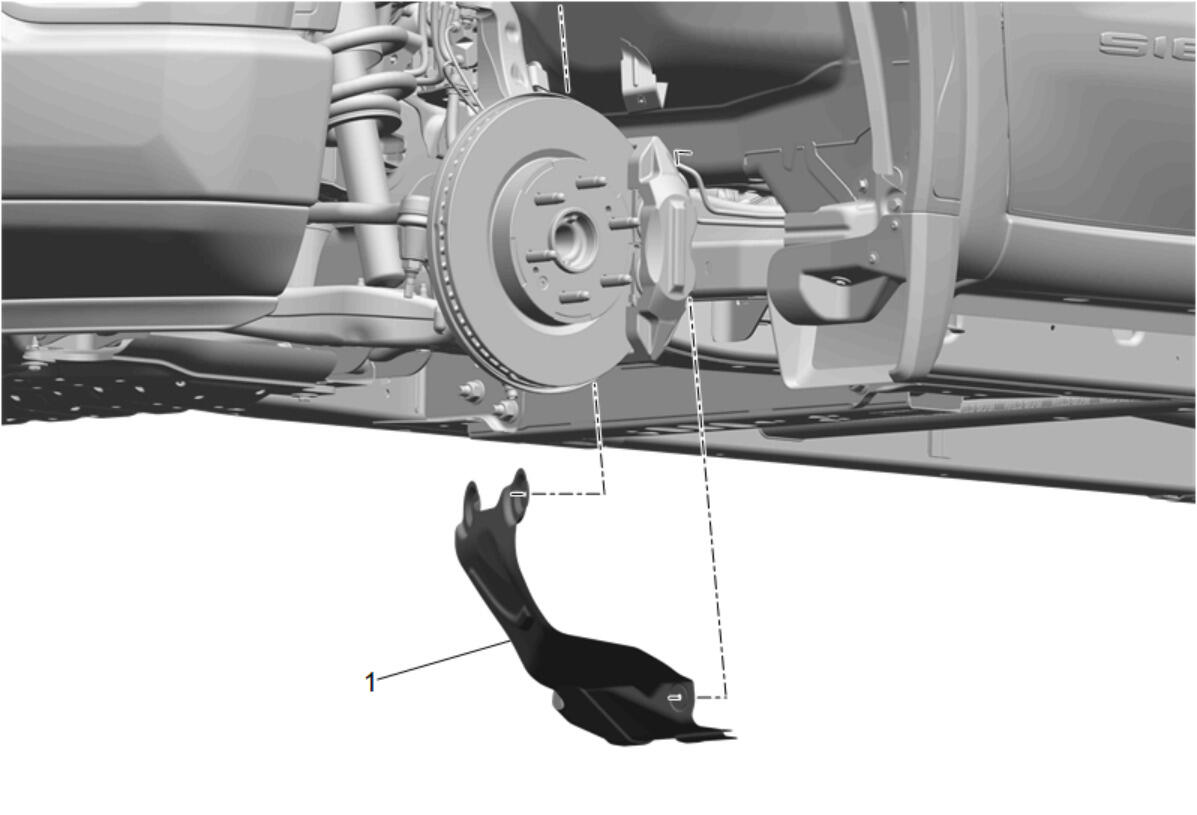

  1. GM5000535Courtesy of GENERAL MOTORS COMPANY

    Exhaust Heat Shield (1) - Install

  2. GM5000533Courtesy of GENERAL MOTORS COMPANY

    Exhaust Heat Shield Retainer (1) - Install

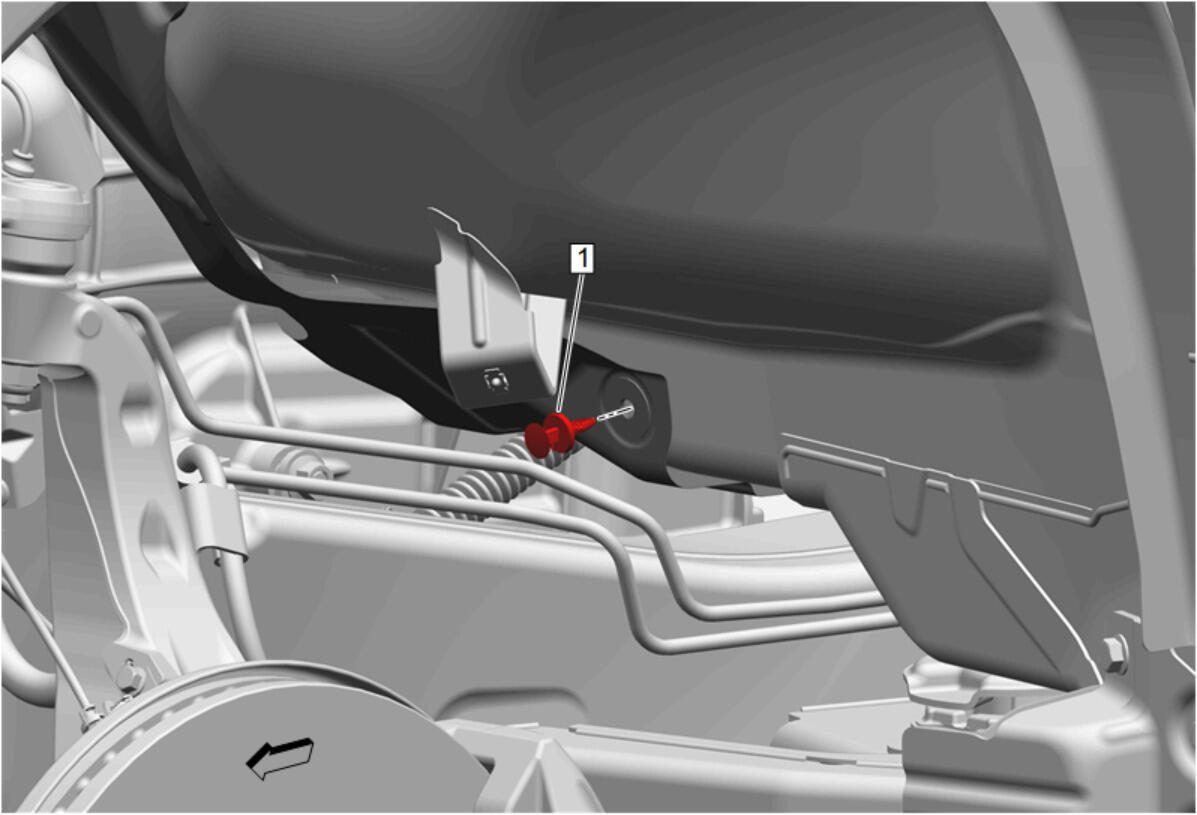

  3. GM5000480Courtesy of GENERAL MOTORS COMPANY

    Exhaust Heat Shield Retainer (1) - Install

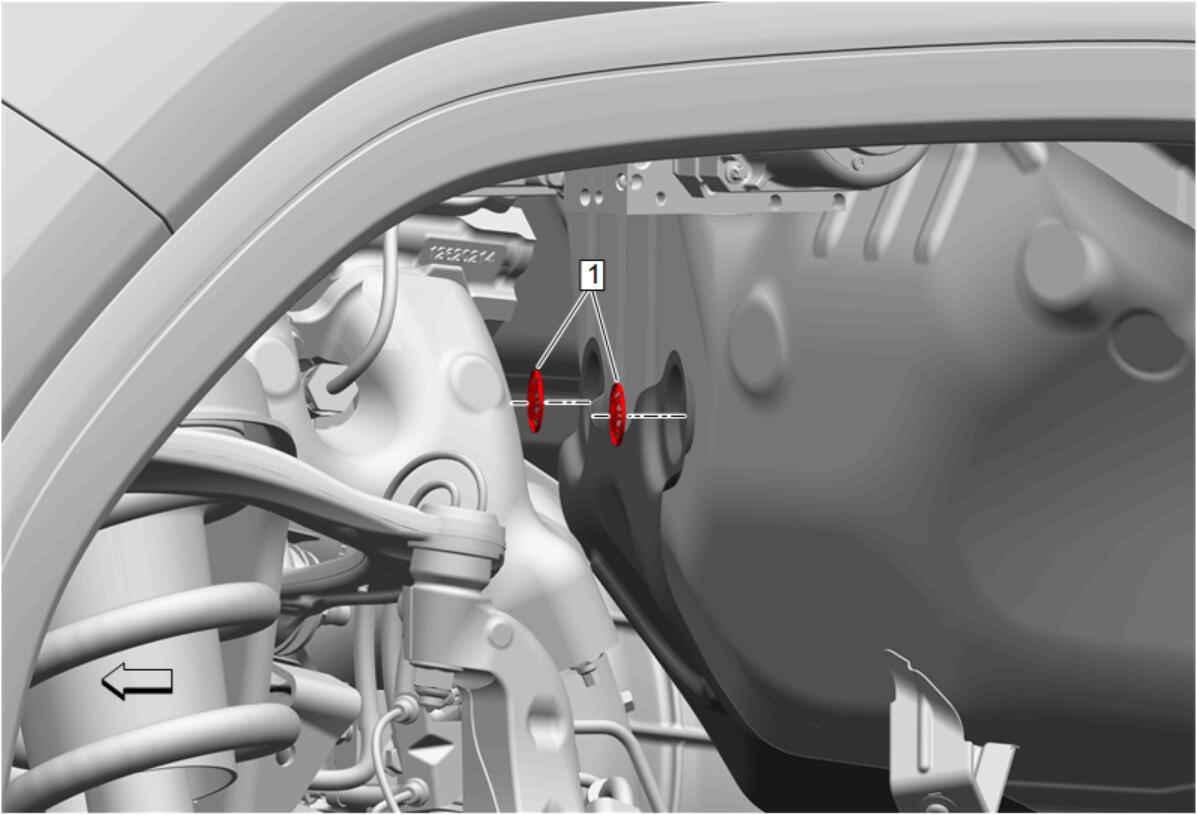

  4. GM5000477Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Exhaust Heat Shield Retainer (1) - Install and tighten [ 2x ] - Fastener Specifications

  5. Front Wheelhouse Liner-Left Side - Install - Front Wheelhouse Liner Replacement
