DTC P2B60 Engine Coolant Flow Control Valve Position Sensor Circuit Performance (PIP5791A)
Reference number: PIP5791A
Supersedes refnos: PIP5791
DTC P2B60 ENGINE COOLANT FLOW CONTROL VALVE POSITION SENSOR CIRCUIT PERFORMANCE
TECHNICAL SERVICE BULLETIN
SERVICE INFORMATION
| Brand: | Model: | Model Year: | VIN: | Engine: | Transmission: | ||
|---|---|---|---|---|---|---|---|
| from | to | from | to | ||||
| Cadillac | Escalade models | 2021 - 2022 | All | All | LM2 | All | |
| Chevrolet | Silverado | 2020-2022 | All | All | LM2 | All | |
| Chevrolet | Suburban | 2021 - 2022 | All | All | LM2 | All | |
| Chevrolet | Tahoe | 2021 - 2222 | All | All | LM2 | All | |
| GMC | Sierra | 2020 - 2022 | All | All | LM2 | All | |
| GMC | Yukon models | 2021 - 2022 | All | All | LM2 | All | |
| Involved Region or Country | North America |
| Condition | Customer concern with SES light on. DTC P2B60 may be set |
| Cause | This condition is currently under investigation by engineering |
CORRECTION

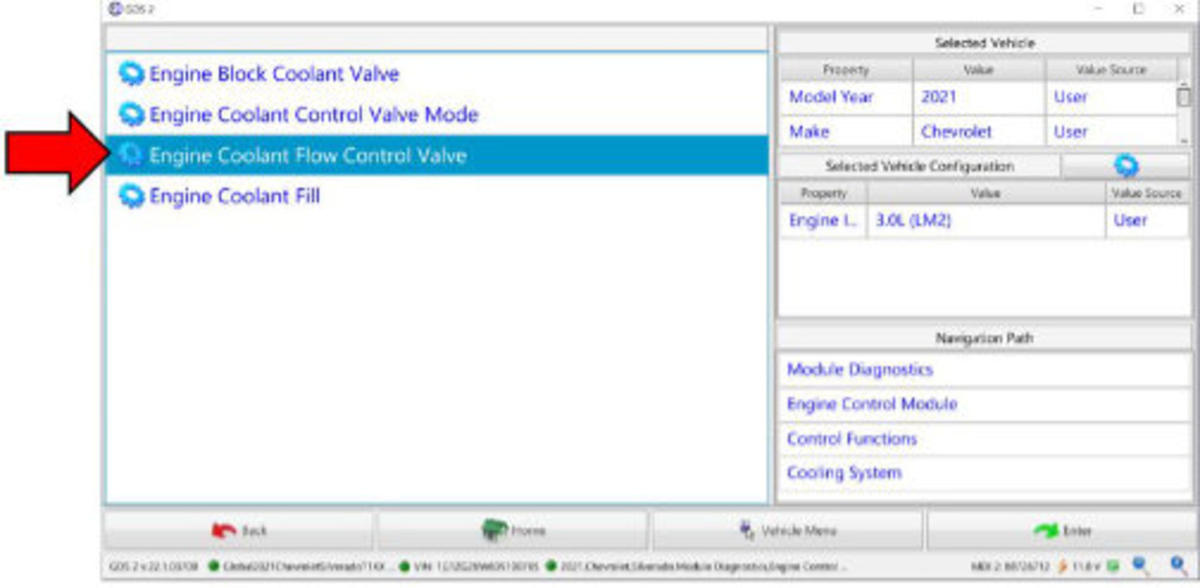

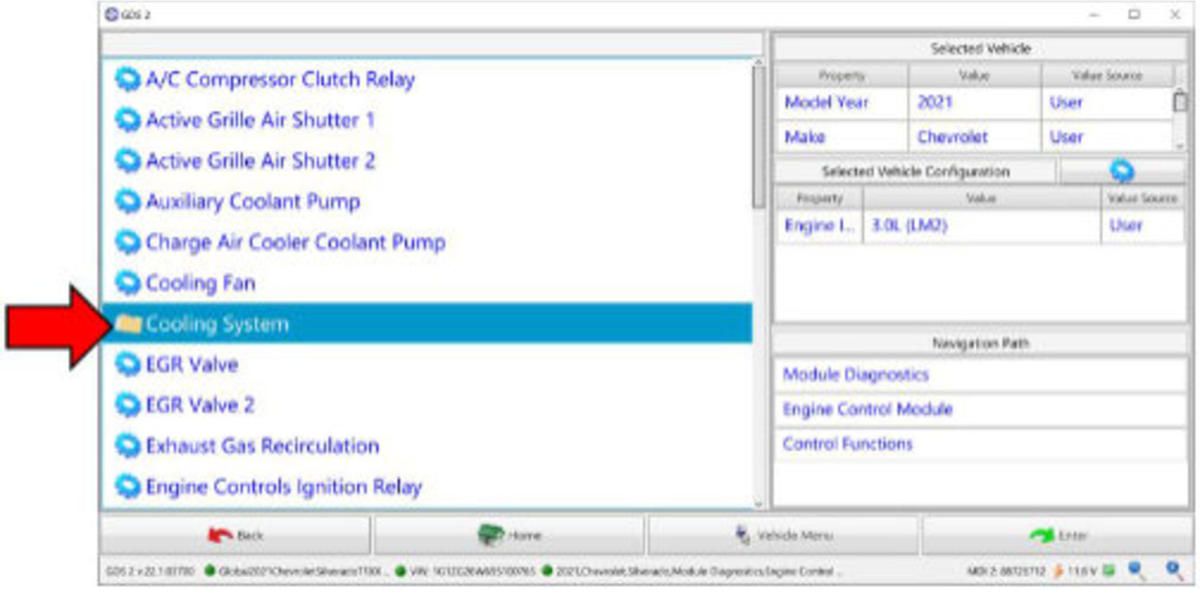

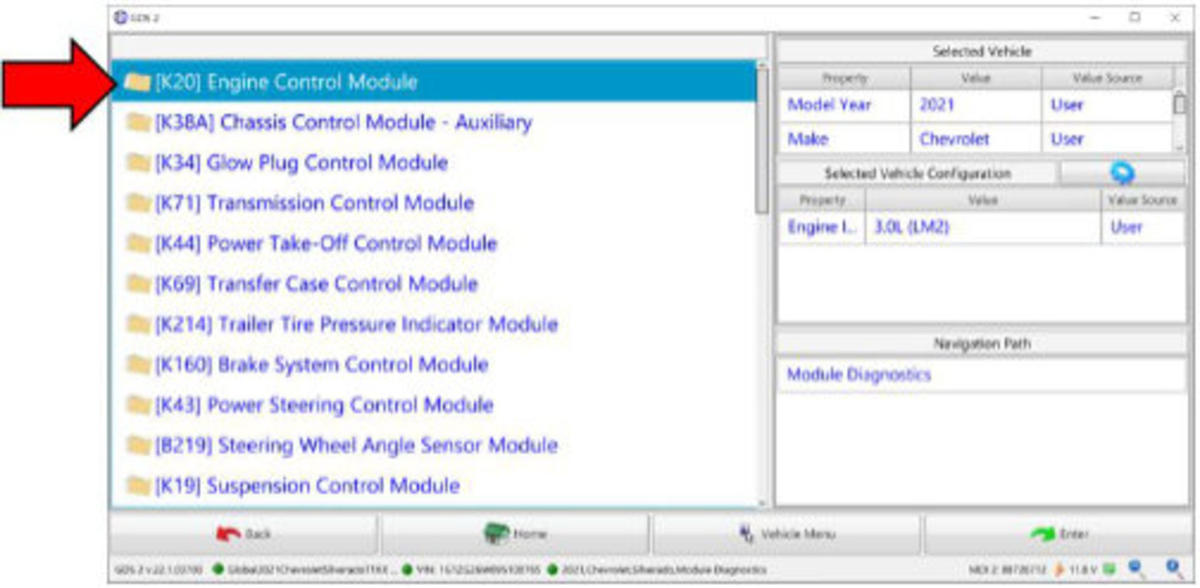

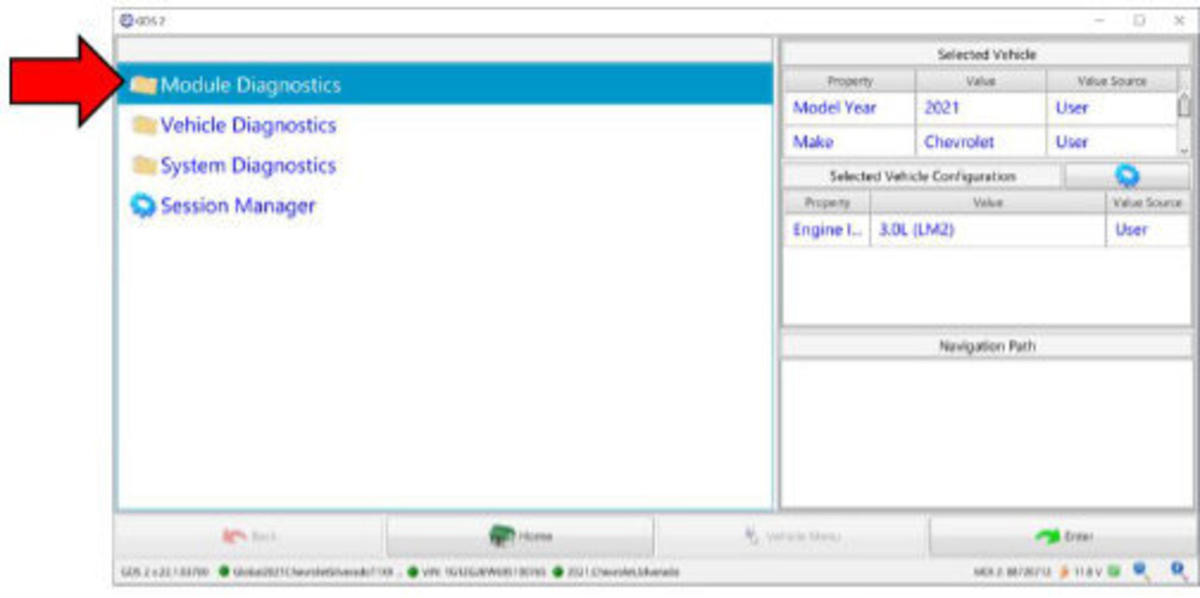

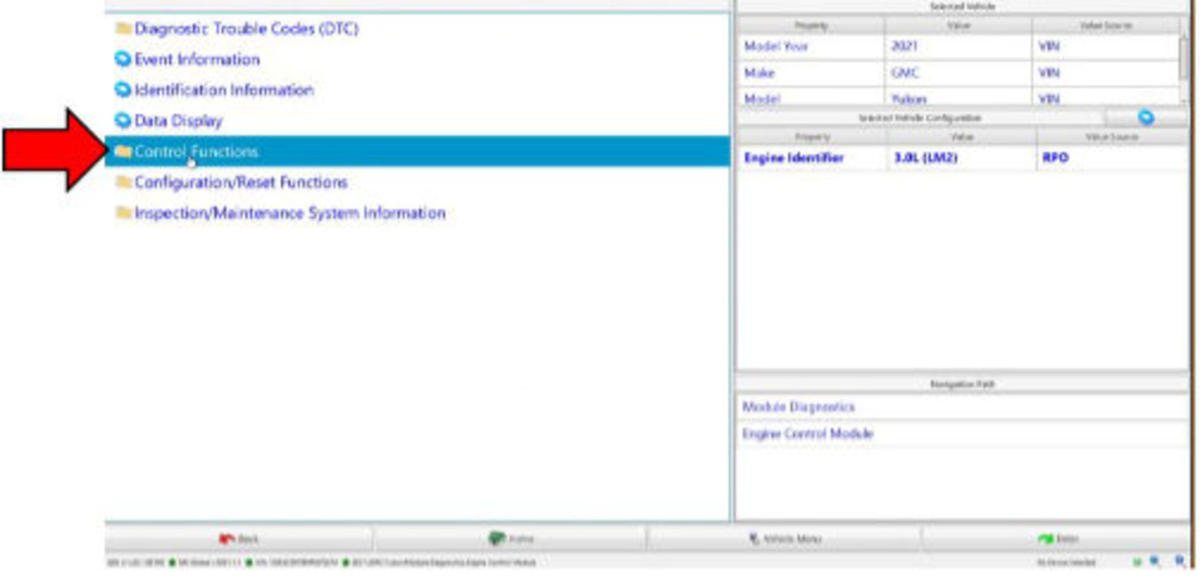

Using the GDS2 tool with software levels greater than GM Global v 2021.3.1 : Perform the following process to evaluate if the Engine Coolant Flow Control Valve is responding. With the ignition on and the engine NOT RUNNING, navigate to the Engine Coolant Flow Control Valve control function as illustrated below.

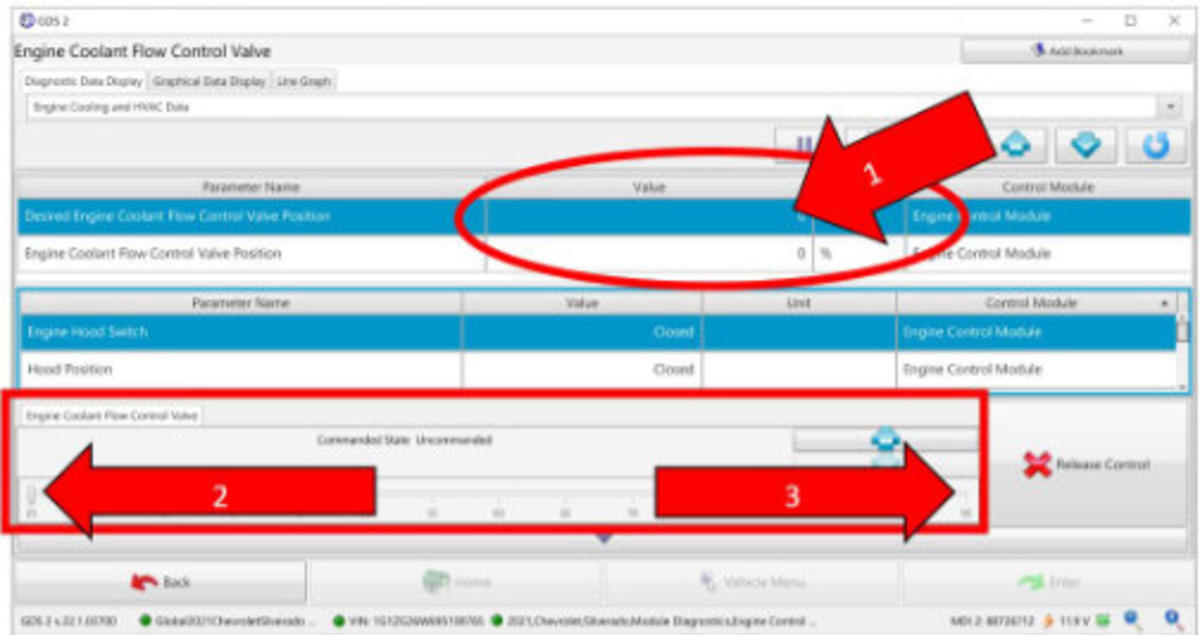

Slide the command from 25% (2) to 95% (3) (for Pickups), making sure to wait until the Engine Coolant Flow Control Position (1) indicates 95% and slide it back to 25% (2). Exercise the valve 3 times to verify it is functional. The "Engine Coolant Flow Control Valve Position" value should move to the desired value just commanded.

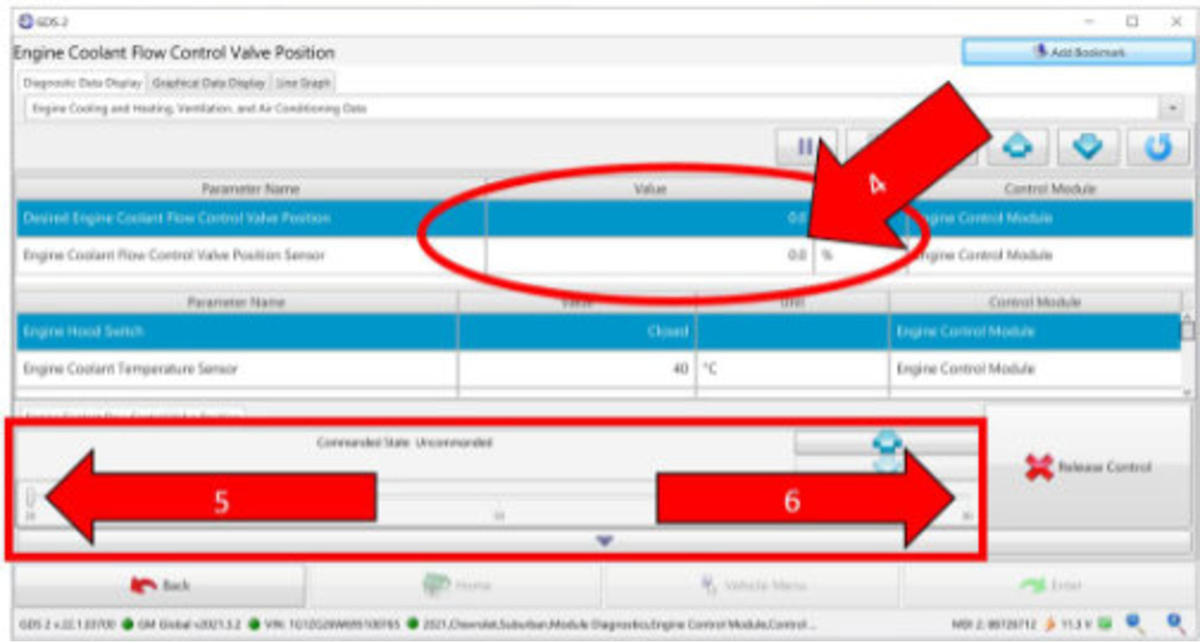

The GDS tool will have a slide range of only 20% - 80% (5 and 6) for an SUV. Please perform the same 3-time-slide action for SUV and verify the Coolant Flow Control Valve position parameter (4) matches the desired position you commanded.

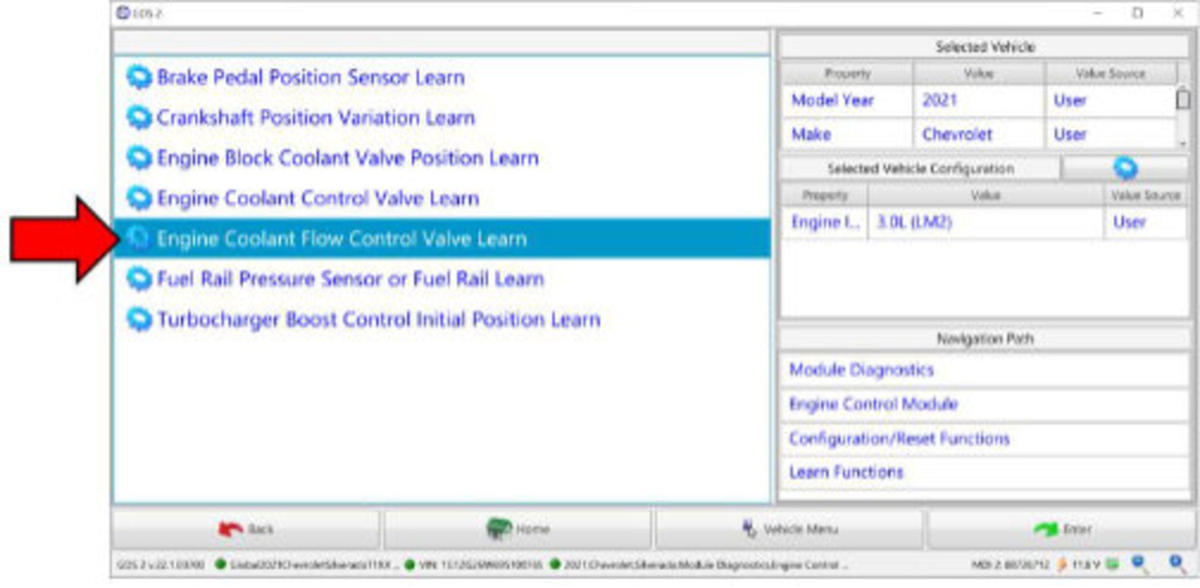

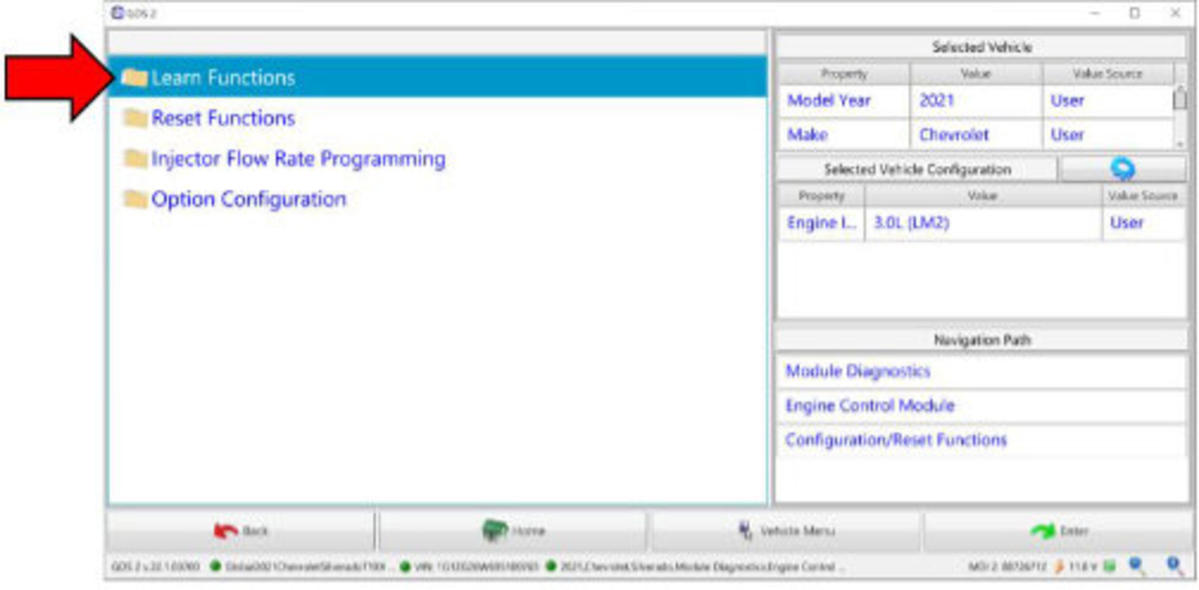

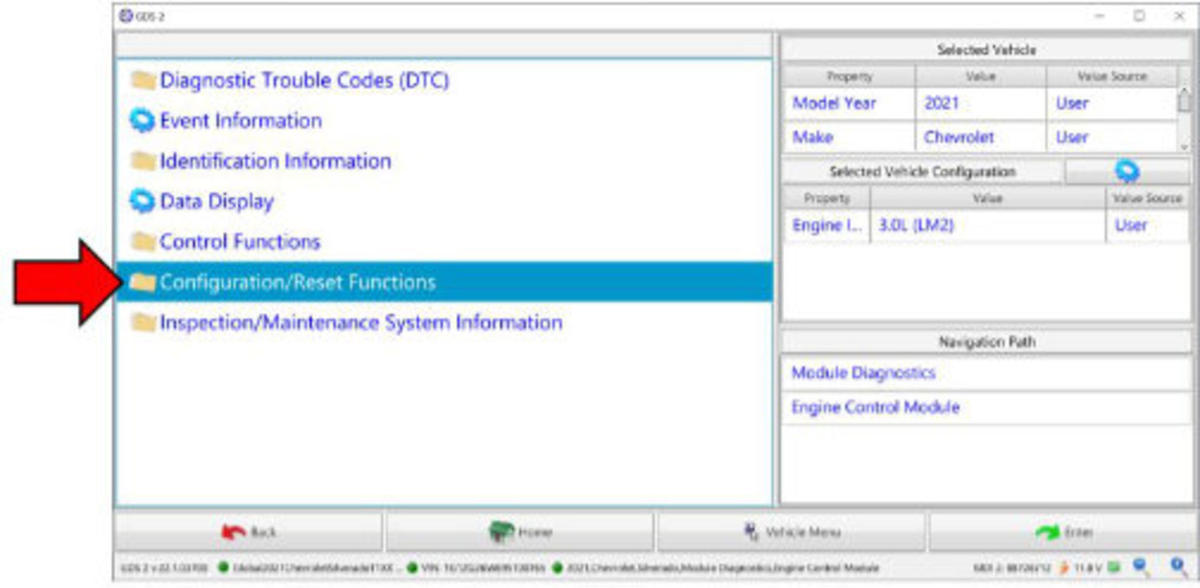

If the valve is responding properly to the command, clear the P2B60 code and perform the Engine Coolant Flow Control Valve learn function as illustrated below:

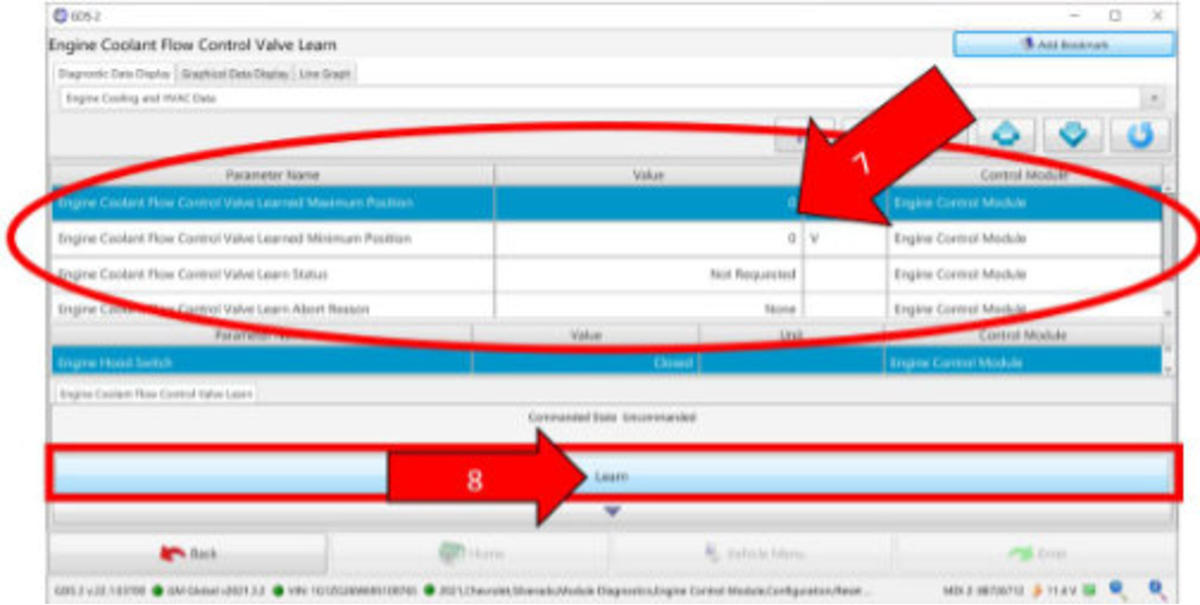

To perform the learn function: Press the "Learn" button and wait until the progress completes.
After the learn is completed, clear the codes and return the vehicle to the customer.
IF the valve does not move during the "Engine Coolant flow Control Valve" position command, inspect for corroded terminals at the Engine Coolant Flow Control Valve Actuator connector (it's the center actuator circled below).
- If corrosion on the terminals is found, replace the harness connector and inspect the Flow Control Valve Actuator pins for corrosion damage.
- If the actuator pins are corroded, replace the connector and terminals, but DO NOT replace the Coolant Control Valve.
- If there is no corrosion on the connector terminals or the pins, continue with normal SI diagnostics (PERFORM A LEARN & CLEAR THE CODES).

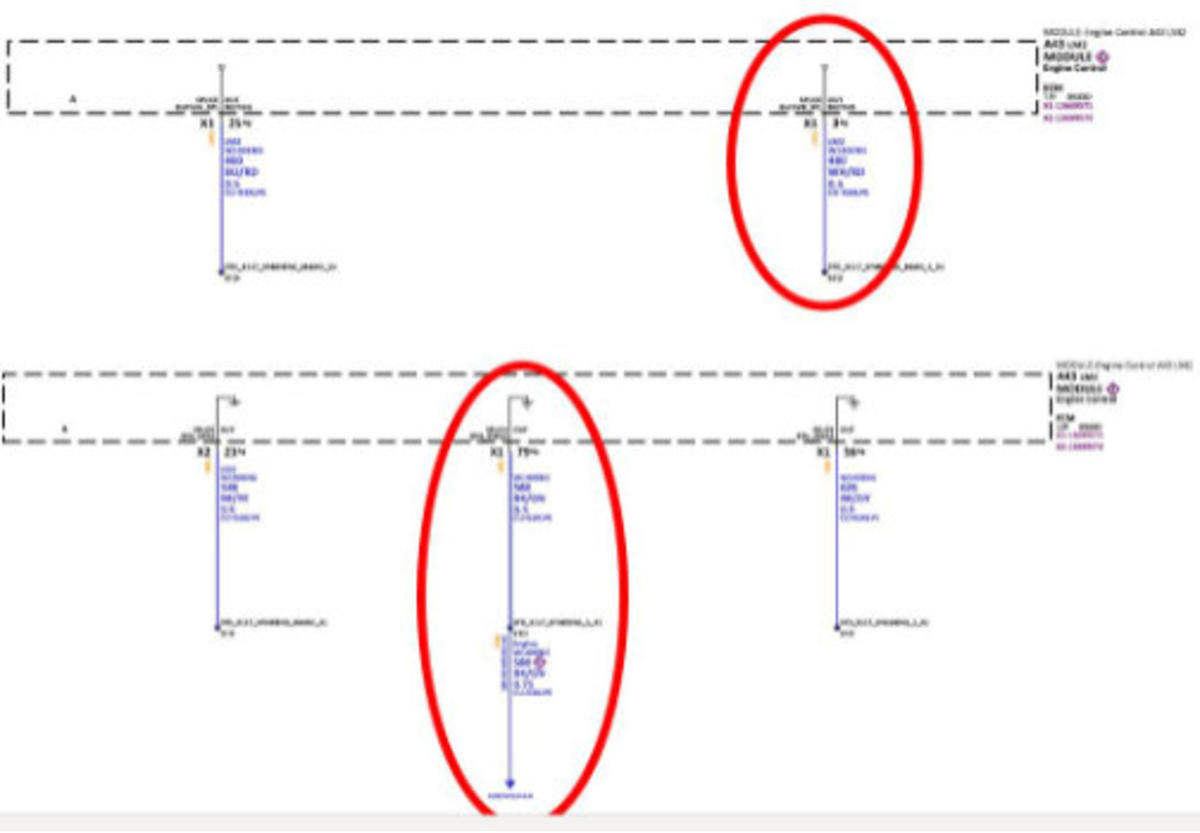

If no issue found with the electrical connector, check the Flow Control Valve circuits (circled in red below).
Replace Engine Coolant Flow Control Valve ONLY IF:
1. The valve fails to respond to the control function AND the circuits are NOT found to be faulty.
2. The circuits are NOT found to be faulty AND it is is the second customer visit for this condition where the vehicle was previously released after clearing the P2B60 code with no trouble found.
WARRANTY INFORMATION
For vehicles repaired under the Bumper to Bumper and Emissions (E) coverage, use the following labor operation. Reference the Applicable Warranties section of Investigate Vehicle History (IVH) for coverage information.
| Labor Operation | Description | Labor Time |
|---|---|---|
| 4087878 | Coolant Flow Control Valve Response Evaluation and Learn Procedure | .4 Hours |
| *This is a unique Labor Operation for Bulletin use only. | ||
| Version | 2 |
| Modified | 03-22-2021 - Created on. 01/27/2022 - PI updated to include 2022 model year |
