Installation Procedure

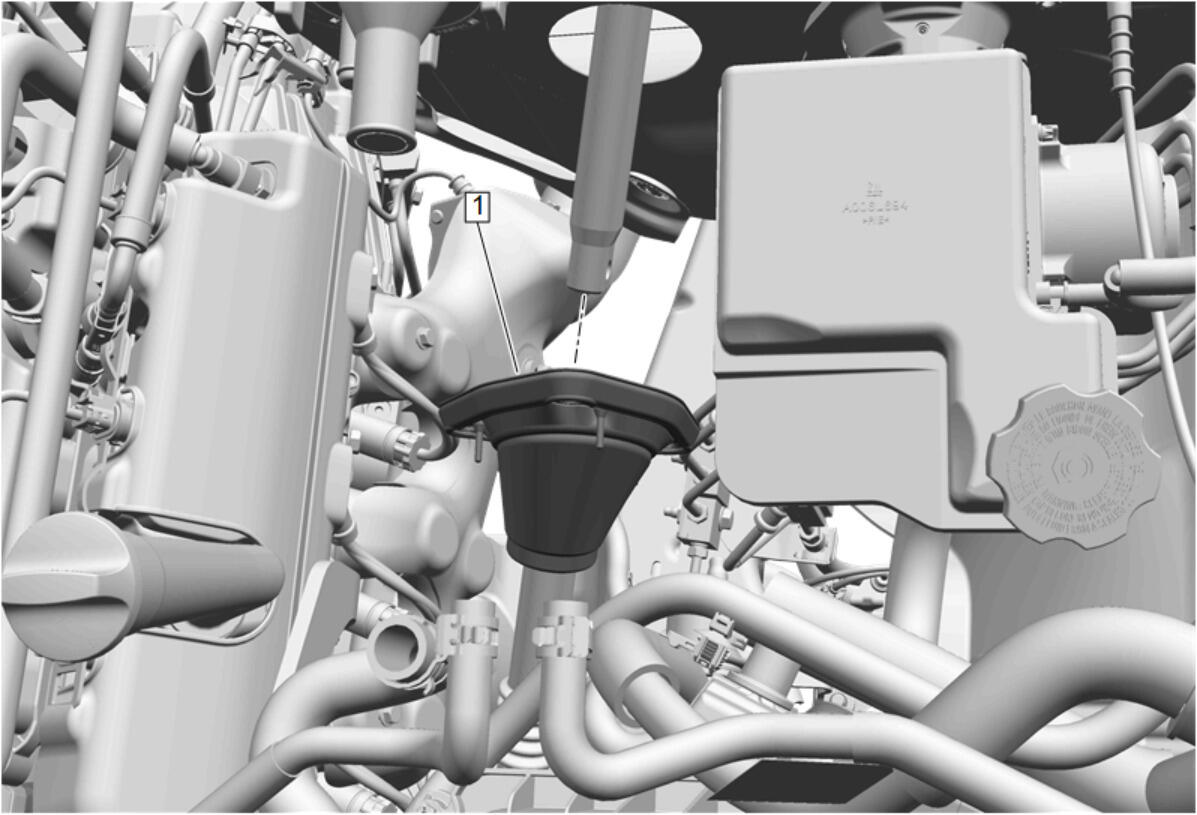

Intermediate Steering Shaft Boot (1) - Install
- CAUTION:
Refer to Fastener Caution .

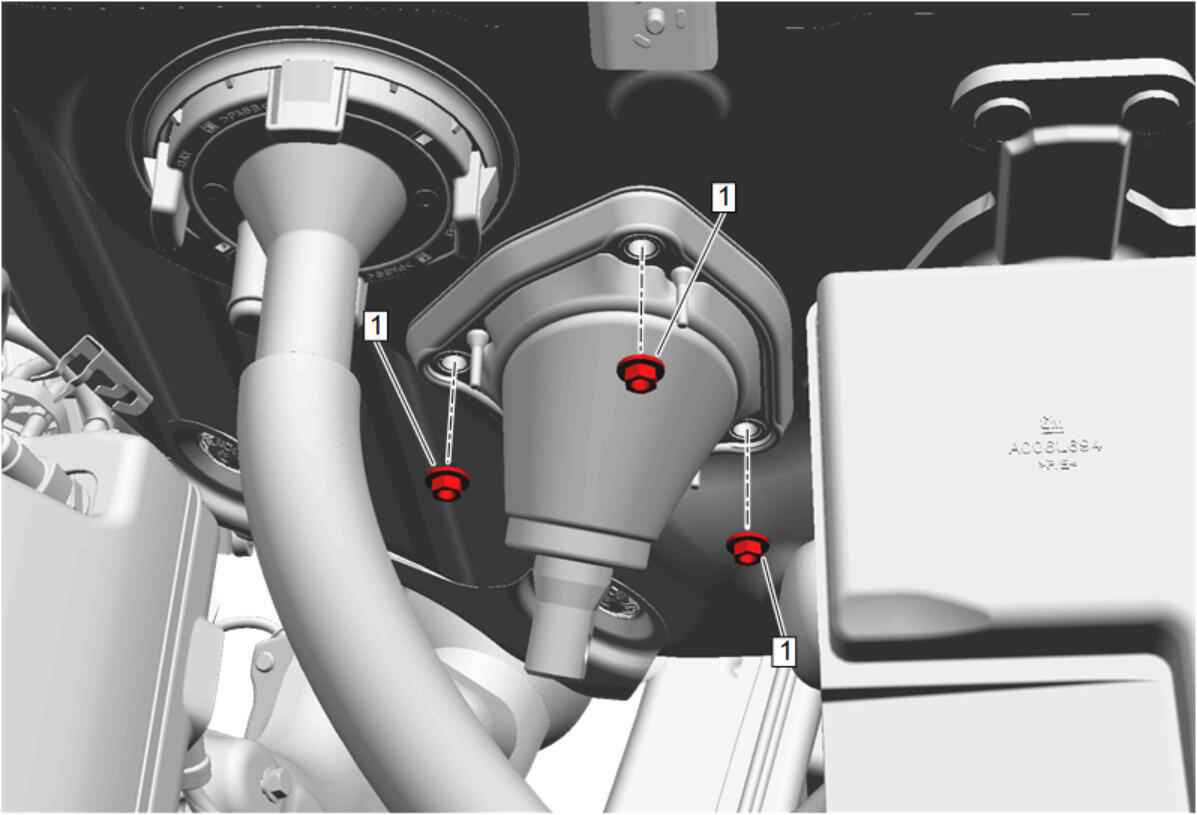

Steering Column Seal Nut (1) - Install and tighten [ 3x ] - Fastener Specifications
Upper Intermediate Steering Shaft (1) @ Intermediate Steering Shaft - Install
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Mid Intermediate Steering Shaft Bolt (1) - Install and tighten - Fastener Specifications
- Remove the device used to prevent steering column rotation.
Front Wheelhouse Liner (1) - Install
Front Wheelhouse Liner Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
Front Wheelhouse Liner Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
Front Wheelhouse Liner Retainer (2) - Install
- Front Wheelhouse Liner Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
Front Wheelhouse Liner Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
{If equipped} Front Tire Front Air Deflector Bolt (1) - Install and tighten - Fastener Specifications
- Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation (Aluminum Wheel)
Refer to Fastener Caution .
Quantity of fasteners may vary based on option content.
