Installation Procedure

  1. GM5539723Courtesy of GENERAL MOTORS COMPANY

    Radio Control Switch (1) - Install

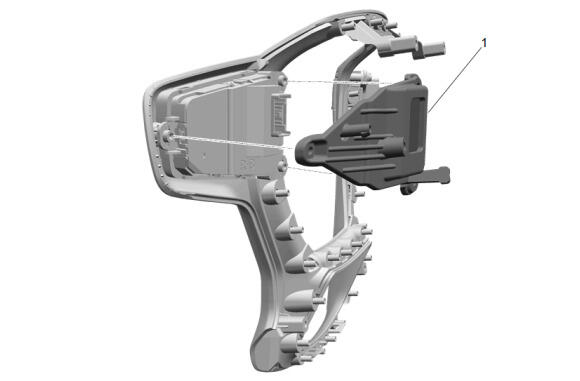

  2. GM5539716Courtesy of GENERAL MOTORS COMPANY

    Radio Bracket (1) - Install

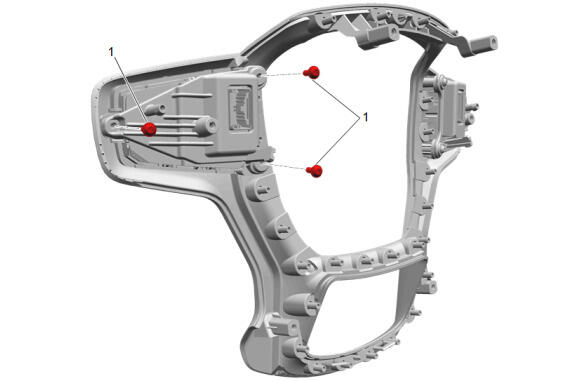

  3. GM5539703Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Steering Wheel Bolt (1) @ Radio Control Switch - Install and tighten [ 3x ] - Fastener Specifications

  4. GM5539732Courtesy of GENERAL MOTORS COMPANY

    Cruise Control Switch (1) - Install

  5. GM5539731Courtesy of GENERAL MOTORS COMPANY

    Cruise Control Release Switch Bracket (1) - Install

  6. GM5539730Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Bolt (1) @ Cruise Control Switch - Install and tighten [ 3x ] - Fastener Specifications

  7. GM5539627Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Spoke Cover (1) - Install

  8. Connect the electrical connectors.
  9. GM5539624Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Spoke Cover Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

  10. GM5539306Courtesy of GENERAL MOTORS COMPANY

    Radio Favorites Switch (1) - Install

  11. Connect the electrical connector.
  12. GM5539281Courtesy of GENERAL MOTORS COMPANY

    Radio Volume Switch (1) - Install

  13. Connect the electrical connector.
  14. GM4994172Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Shroud (1) - Install

  15. Connect the heated steering wheel module electrical connectors, if equipped.
  16. GM4994120Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Spoke Cover Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications

  17. Steering Wheel Bolt (2) - Install and tighten [ 4x ] - Fastener Specifications
  18. GM5525860Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel (2) - Install

  19. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  20. Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications
  21. GM5525856Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  22. Install any connector position assurance (CPA) devices or secondary locks.
  23. Steering Wheel Airbag (2) - Install
  24. Steering Wheel Airbag Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  25. GM5520780Courtesy of GENERAL MOTORS COMPANY

    Install the 2 steering wheel airbag access hole covers (1).

  26. Enable the SIR System. SIR Disabling and Enabling
