Installation Procedure
Install the air suspension control module (3) on the air suspension controller (2).
- Automatic Level Control Air Compressor Bolt (1) - Install and tighten - Fastener Specifications

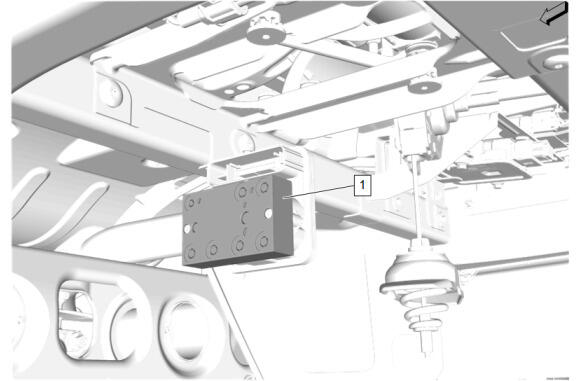

Install the air suspension controller (1) and air suspension control module as an assembly.
Install and tighten the 2 automatic level control solenoid bolts (1). Fastener Specifications
- NOTE:
The air suspension controller and the air lines are color coded for ease of installation.

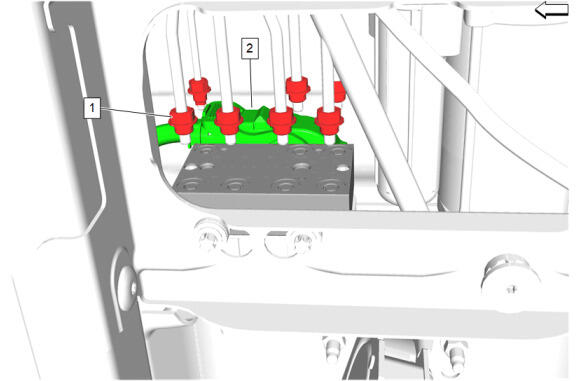

Electrical Connector (2) - Connect
- Install and tighten the 7 automatic level control air compressor tube fitting (1) to the air suspension controller. Fastener Specifications
- Install the spare tire and wheel assembly.
Remove the automatic level control air supply reservoir air valve cap (1).
- Install CH-52667 Air Spring Inflator to the automatic level control air supply reservoir air valve (2) and set the regulator on the nitrogen tank to 16 Bar (232 PSI).
- Using CH-52667 Air Spring Inflator, open the valve on the pressure gage to fill the automatic level control air supply reservoir.
- Using CH-52667 Air Spring Inflator and the shop nitrogen tank, fill the automatic level control air supply reservoir to 16 Bar (232 PSI).
- Close the pressure gauge valve and remove CH-52667 Air Spring Inflator from the automatic level control air supply reservoir.
- Install the automatic level control air supply reservoir air valve cap (1) and tighten. Fastener Specifications .
- Partially lower the vehicle, but DO NOT let the wheels touch the ground.
- Using GDS2 tool, use short-term inflate to increase pressure to the air springs:
- Front: 6 Bar (87 PSI)
- Rear: 5 Bar (73 PSI)
- Using GDS2, verify automatic level control air supply tank pressure is at 16 Bar (232 PSI), if not repeat steps 9 - 12.
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
