Removal Procedure
- Remove the spare tire and wheel assembly.
- Using the scan tool, deflate the automatic level control air supply reservoir
- Raise and support the vehicle. Lifting and Jacking the Vehicle

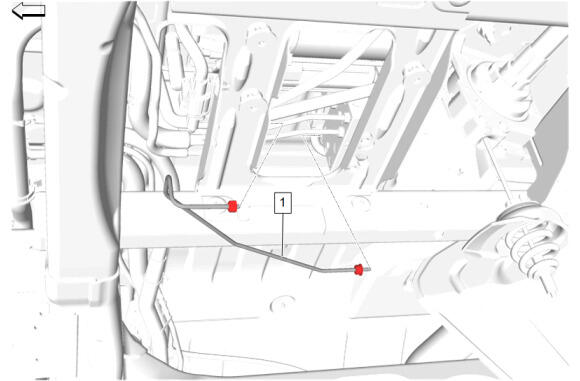

Remove the 2 automatic level control air compressor tubes (1) and reposition.

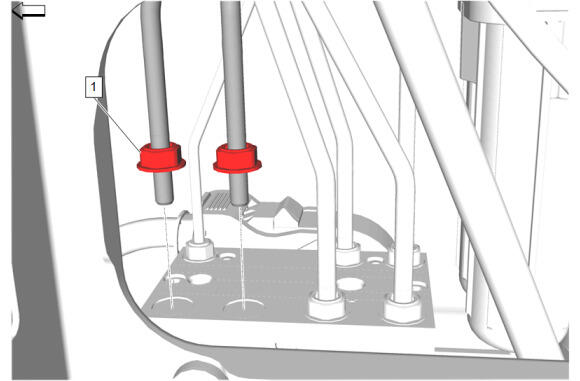

Automatic Level Control Air Compressor Tube (1) @ Air Suspension Controller - Remove

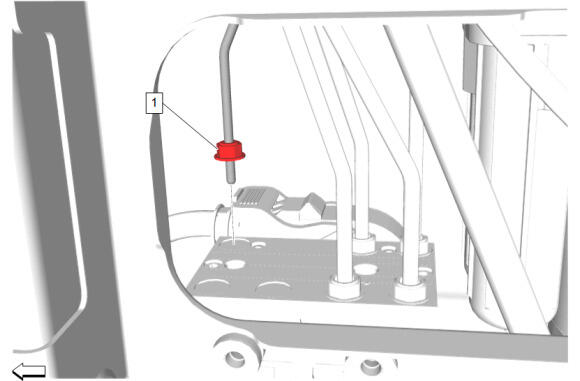

Automatic Level Control Air Compressor Tube (1) @ Automatic Level Control Air Compressor - Remove

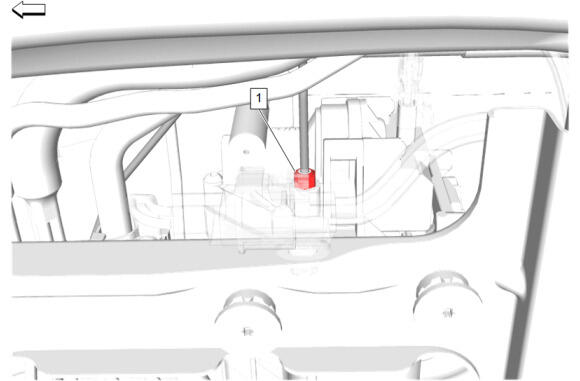

Automatic Level Control Air Compressor Tube (1) - Remove
NOTE:
Service mode will be automatically enabled when the ride height sensors detect the vehicle has been lifted off the ground. Service mode will automatically be disabled when the vehicle reaches 16 km/h (10 MPH).
