Removal Procedure
- Raise and support the vehicle. Lifting and Jacking the Vehicle

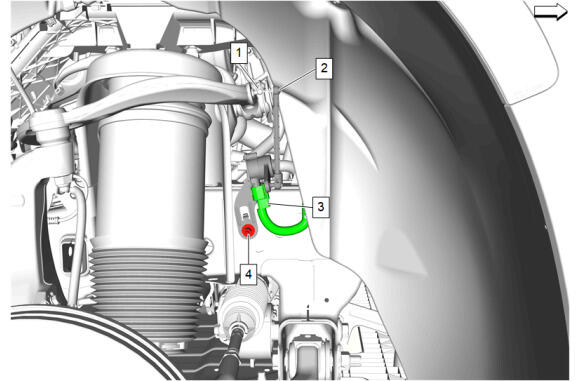

- NOTE:
Right side shown, left side similar.
Disconnect the front suspension 4 corner leveling system position sensor link (2) from the electronic suspension front position sensor link ball stud (1).
- Disconnect the electrical connector (3).
- Loosen the front suspension 4 corner leveling system position sensor (4).

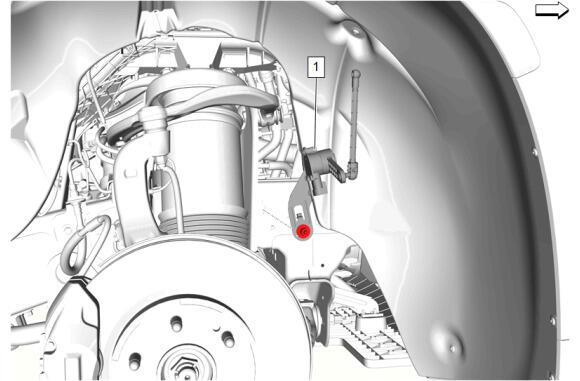

Remove the front suspension 4 corner leveling system position sensor (1) from the keyhole slot at the frame.
NOTE:
Right side shown, left side similar.
NOTE:
The front suspension 4 corner leveling system position sensor nut and stud are part of the sensor.
