Installation Procedure

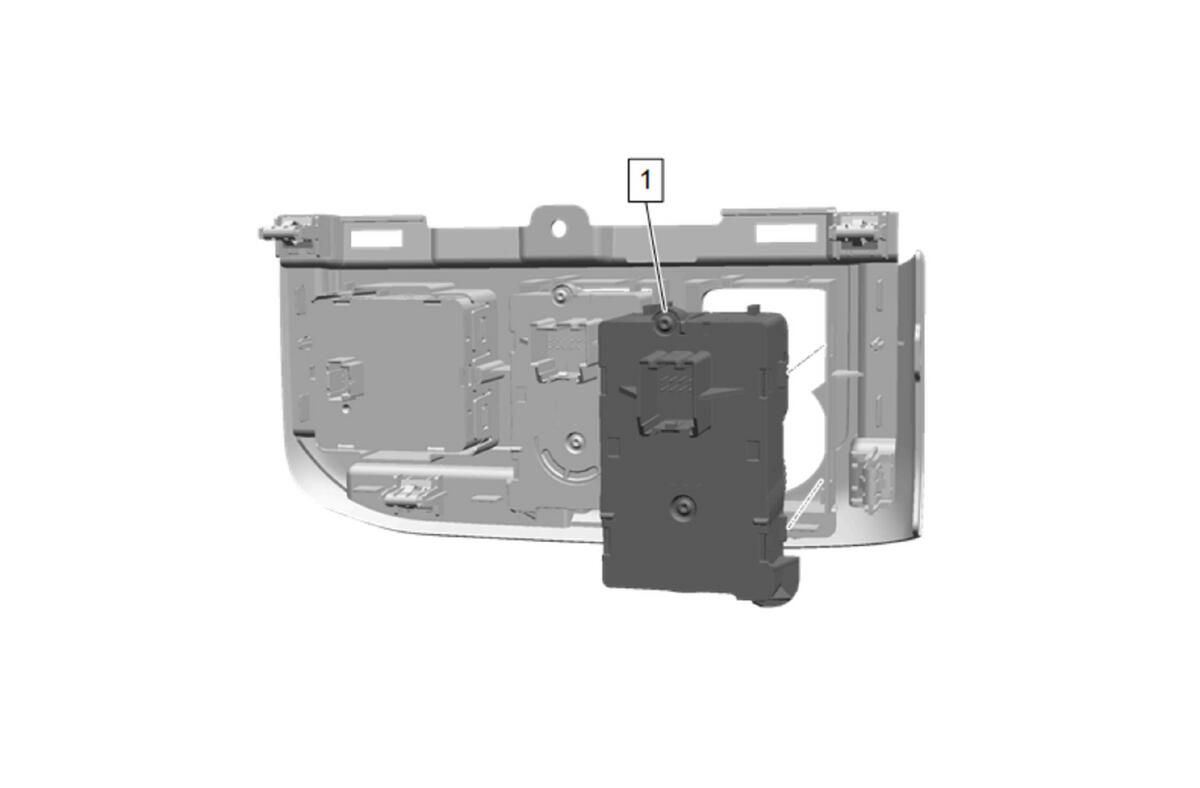

  1. GM5605310Courtesy of GENERAL MOTORS COMPANY

    Ride Control Switch (1) @ Instrument Panel Switch Trim Plate - Install

  2. GM5596403Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  3. Instrument Panel Switch Trim Plate (2) - Install
    4. CAUTION:

    Refer to Fastener Caution .

  4. Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten - Fastener Specifications
  5. GM5596337Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  6. Instrument Panel Trim Pad (2) - Install
  7. Instrument Panel Trim Pad Bolt (1) - Install and tighten - Fastener Specifications
  8. GM5596335Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  9. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install
