Installation Procedure

  1. GM5045423Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Position Sensor (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Crankshaft Position Sensor Bolt (1) - Install and tighten to 8.5 N.m (75 lb in)
  3. Connect the crankshaft position sensor electrical connector.

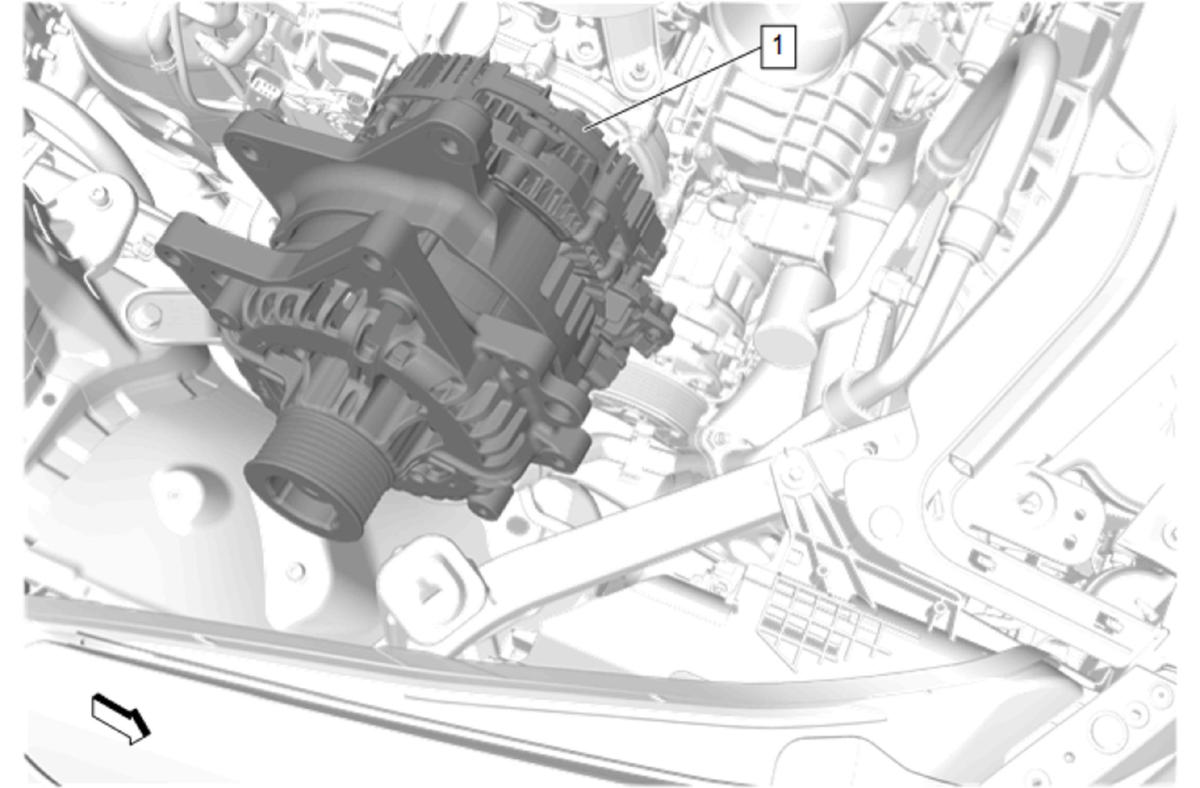

  4. GM5654991Courtesy of GENERAL MOTORS COMPANY

    Generator (1) - Install - Generator Replacement (LSY)

  5. Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
