Fastener Specifications

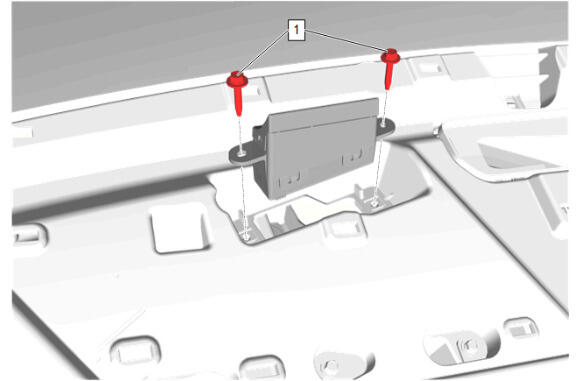

GM5821193
Forward Collision Alert Display

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Forward Collision Alert Display Bolt [2x] - - 2.5 N.m (22 lb in) Forward Collision Alert Display Replacement

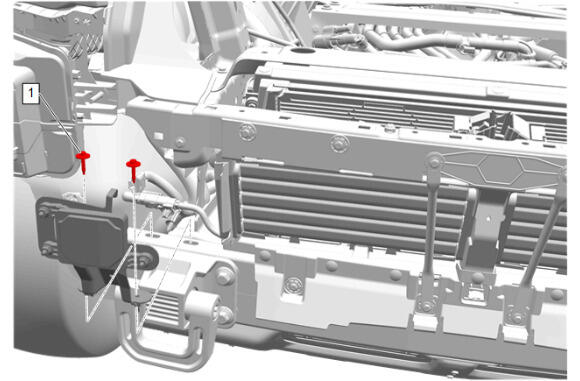

GM5897304
Forward Range Radar Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Forward Range Radar Bracket Bolt [2x] - - 9 N.m (80 lb in) Forward Range Radar Bracket Replacement

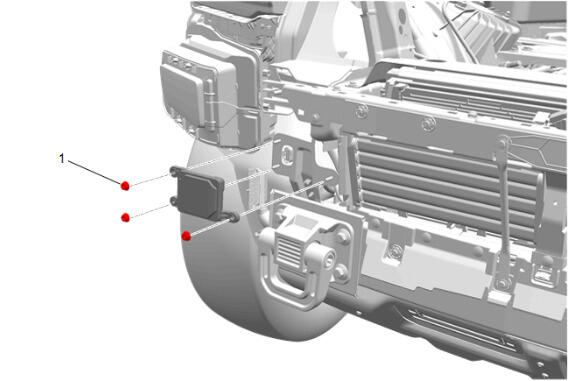

GM5897306
Forward Range Radar Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Forward Range Radar Module/Sensor Nut [3x] - - 9 N.m (80 lb in) Forward Range Radar Sensor Replacement

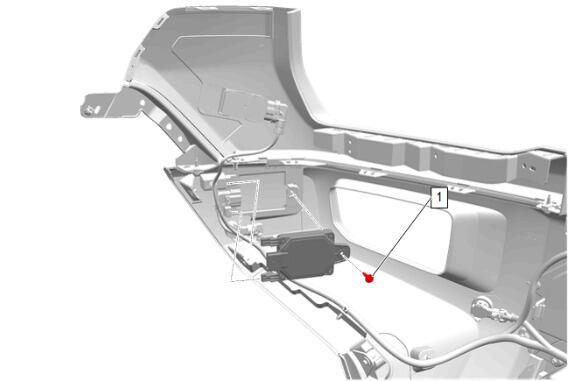

GM5897617
Front Short Range Radar Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Short Range Radar Sensor Bolt - - 2.5 N.m (22 lb in) Front Short Range Radar Sensor Replacement

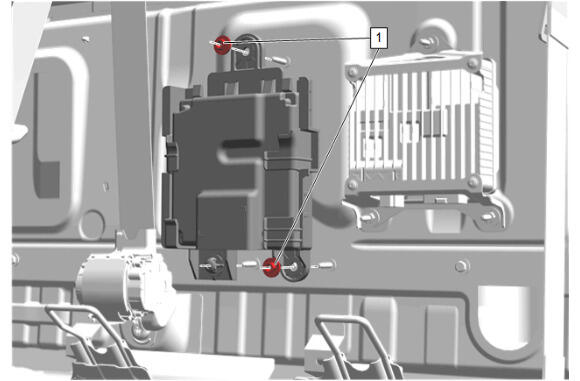

GM5821190
Image Processing Module

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Active Safety Control Module Bracket Nut [2x] - - 9 N.m (80 lb in) Image Processing Module Replacement

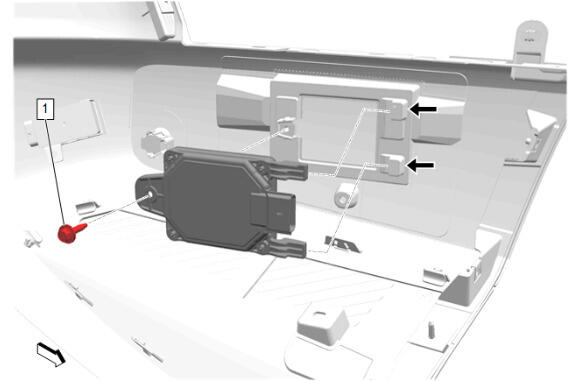

GM5897307
Rear Short Range Radar Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Short Range Radar Sensor Bolt - - 2.5 N.m (22 lb in) Rear Short Range Radar Sensor Replacement
