Installation Procedure

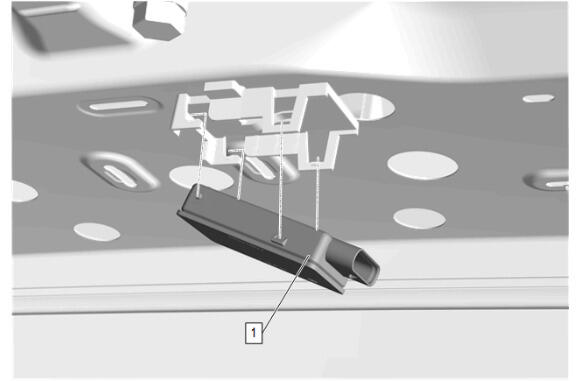

  1. GM5830172

    UHF Low Energy Remote Control Access Sensor Transceiver (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connector.
  4. GM5777900

    Connect the wiring harness retainer.

  5. Headlining Rear Trim Panel (1) - Install
  6. GM5816533

    Connect the electrical connector.

  7. Rear Seat Position Center Reading and Courtesy Lamp (1) - Install
  8. Apply pressure upward on the rear seat position center reading and courtesy lamp (1) to engage the retaining tabs.
