Installation Procedure

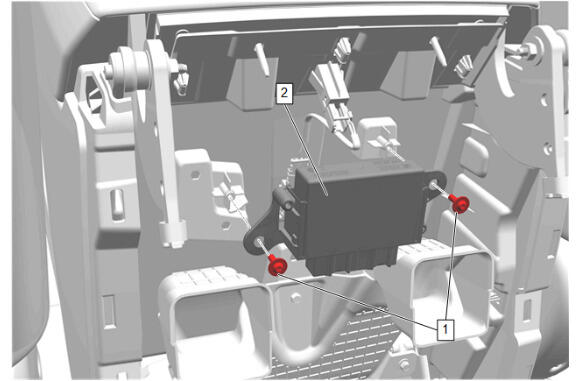

  1. GM5830114

    UHF Short Range Low Energy Remote Control Access Transceiver (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. UHF Short Range Low Energy Remote Control Access Transceiver Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connectors.

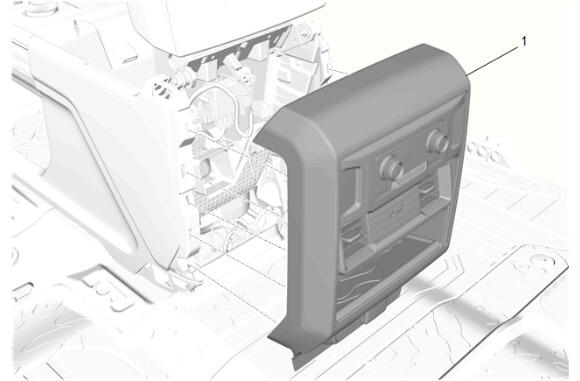

  4. GM5786877

    Connect the electrical connectors.

  5. Front Floor Console Rear Trim Panel (1) - Install

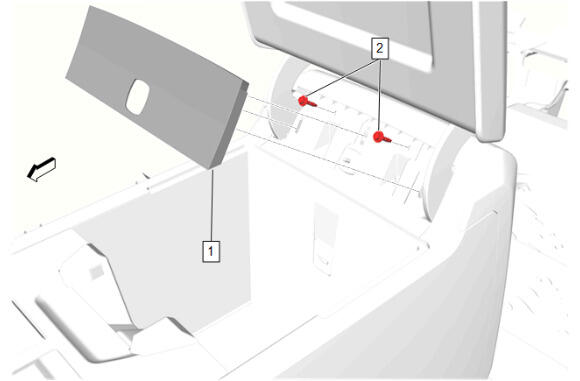

  6. GM5786876

    Front Floor Console Rear Cover Bolt (2) - Install and tighten [2x] - Fastener Specifications

  7. Front Floor Console Rear Trim Plate (1) - Install
  8. Close the armrest cover.

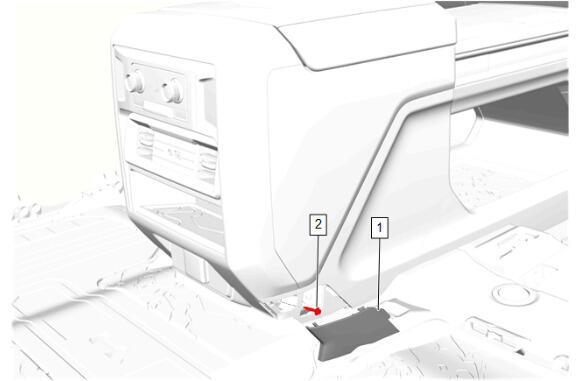

  9. GM5786875

    Front Floor Console Rear Cover Bolt (2) - Install and tighten - Fastener Specifications

  10. Front Floor Console Bolt Access Hole Cover (1) - Install

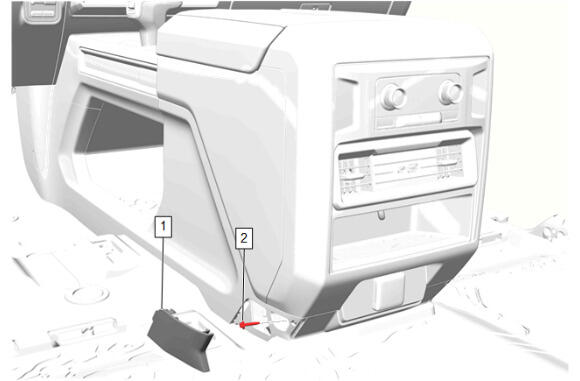

  11. GM5786874

    Front Floor Console Rear Cover Bolt (2) - Install and tighten - Fastener Specifications

  12. Front Floor Console Bolt Access Hole Cover (1) - Install
  13. Return the seat to its original position.
  14. GM6039681

    Rear Floor Mat (1) - Install

  15. GM6029241

    Tire Air Compressor (2) - Install

  16. Tire Repair Sealer and Tire Air Compressor Retainer (1) - Install and hand tighten
