Fastener Specifications

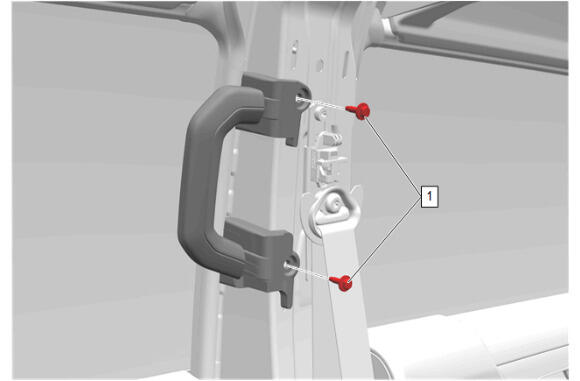

GM5807616
Center Pillar Assist Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Center Pillar Assist Handle Bolt [2x] - - 9 N.m (80 lb in) Center Pillar Assist Handle Replacement

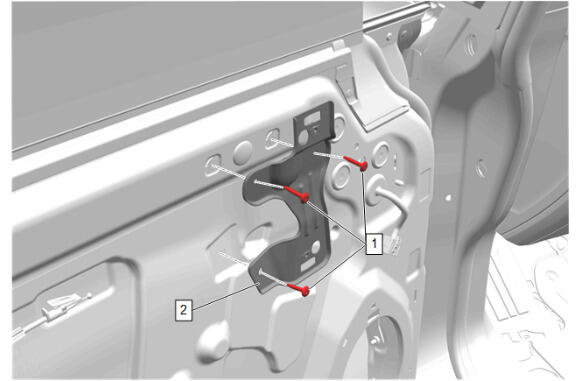

GM5774935
Front Side Door Armrest Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Armrest Bracket Bolt [3x] - - 2.5 N.m (22 lb in) Front Side Door Armrest Bracket Replacement

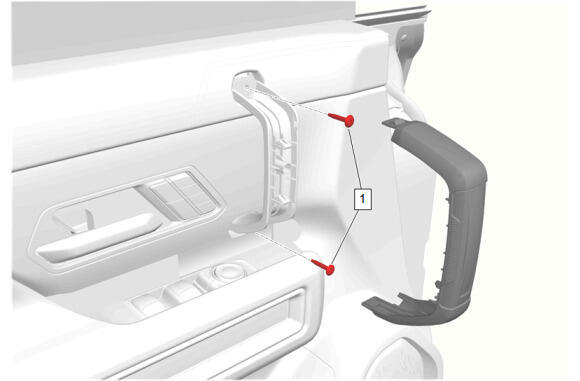

GM6051400
Front Side Door Armrest Pull Cup Bolt Cap

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Pull Handle Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Door Trim Replacement (Without Front Side Door Trim Bolt Cap) , or Front Side Door Trim Replacement (With Front Side Door Trim Bolt Cap)

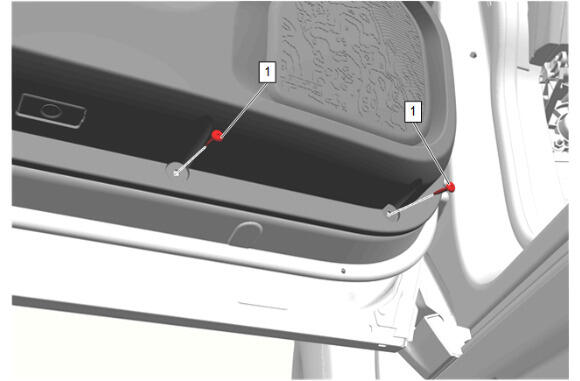

GM5766448
Front Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Door Trim Replacement (Without Front Side Door Trim Bolt Cap) , or Front Side Door Trim Replacement (With Front Side Door Trim Bolt Cap)

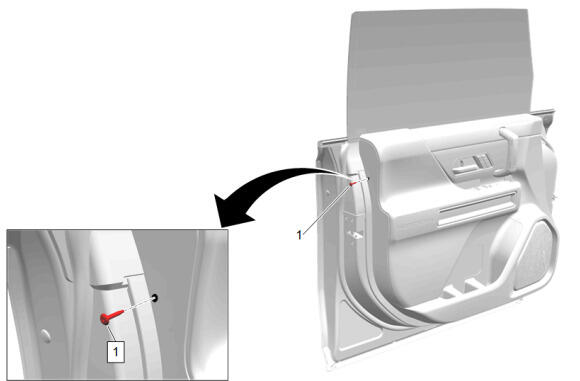

GM5983201
Front Side Door Trim (Built before April 22, 2022)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Bolt - - 2.5 N.m (22 lb in) Front Side Door Trim Replacement (Without Front Side Door Trim Bolt Cap) , or Front Side Door Trim Replacement (With Front Side Door Trim Bolt Cap)

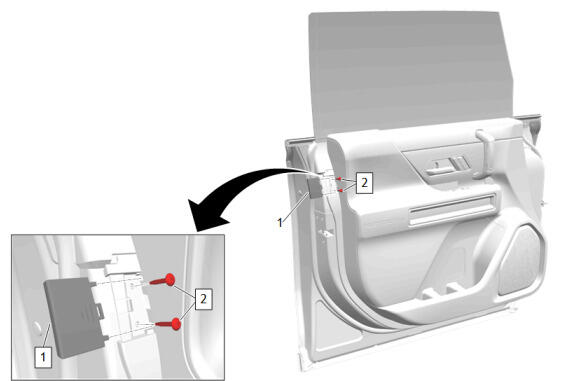

GM5983285
Front Side Door Trim (Built on or after April 22, 2022)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Door Trim Replacement (Without Front Side Door Trim Bolt Cap) , or Front Side Door Trim Replacement (With Front Side Door Trim Bolt Cap)

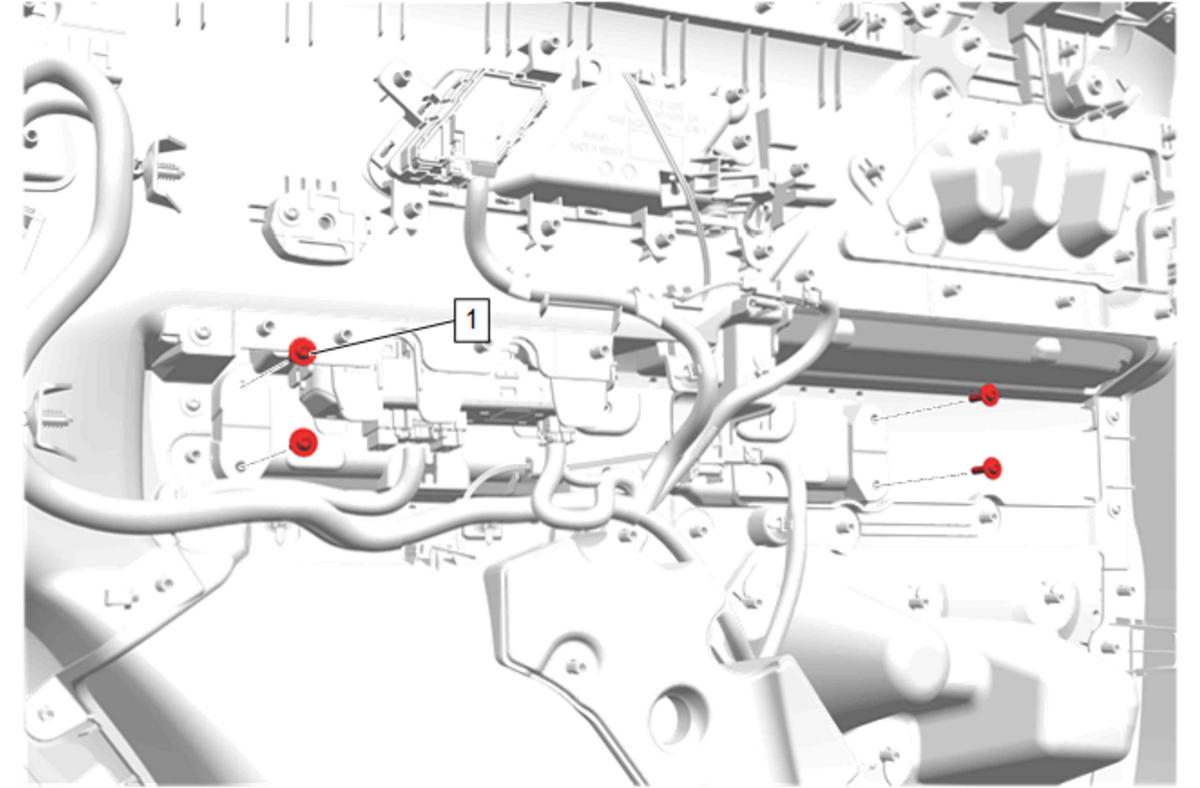

GM5795096
Front Side Door Trim Panel Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Bolt [4x] - - 2.5 N.m (22 lb in) Front Side Door Trim Panel Applique Replacement

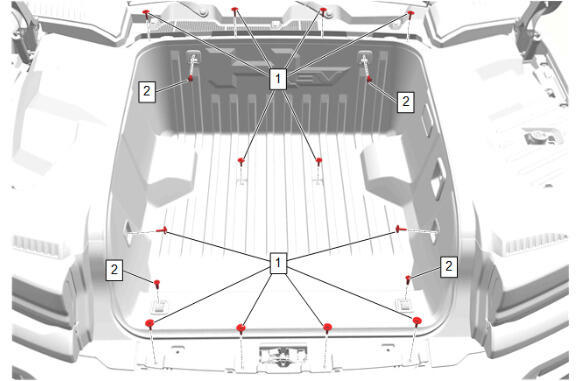

GM5787370
Front Trim Finish Compartment

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Trim Finish Compartment Bolt [12x] - - 9 N.m (80 lb in) Front Trim Finish Compartment Replacement
2 Cargo Tie Down Loop Bolt [4x] - - 15 N.m (11 lb ft) Cargo Tie Down Loop Replacement
GM5787369
Power Receptacle Retainer *Need SI Name*

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Trim Finish Compartment Support Nut [2x] - - 9 N.m (80 lb in) Front Trim Finish Compartment Replacement

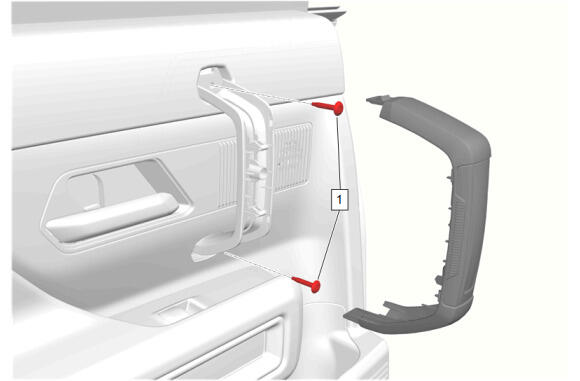

GM6051401
Rear Side Door Armrest Pull Cup Bolt Cap

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Armrest Bracket Bolt [2x] - - 2.5 N.m (22 lb in) Rear Side Door Trim Replacement

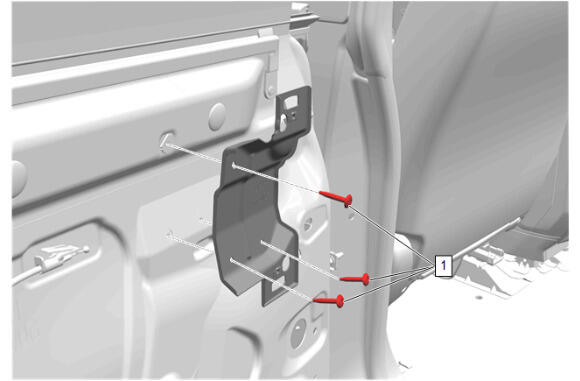

GM5795285
Rear Side Door Armrest Pull Cup Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Armrest Pull Cup Bracket Bolt [3x] - - 2.5 N.m (22 lb in) Rear Side Door Armrest Pull Cup Bracket Replacement

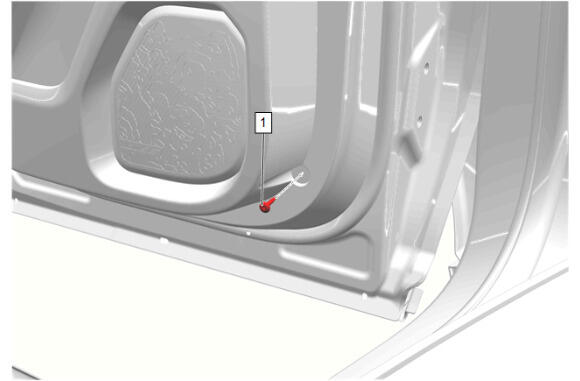

GM5775432
Rear Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Trim Bolt - - 2.5 N.m (22 lb in) Rear Side Door Trim Replacement

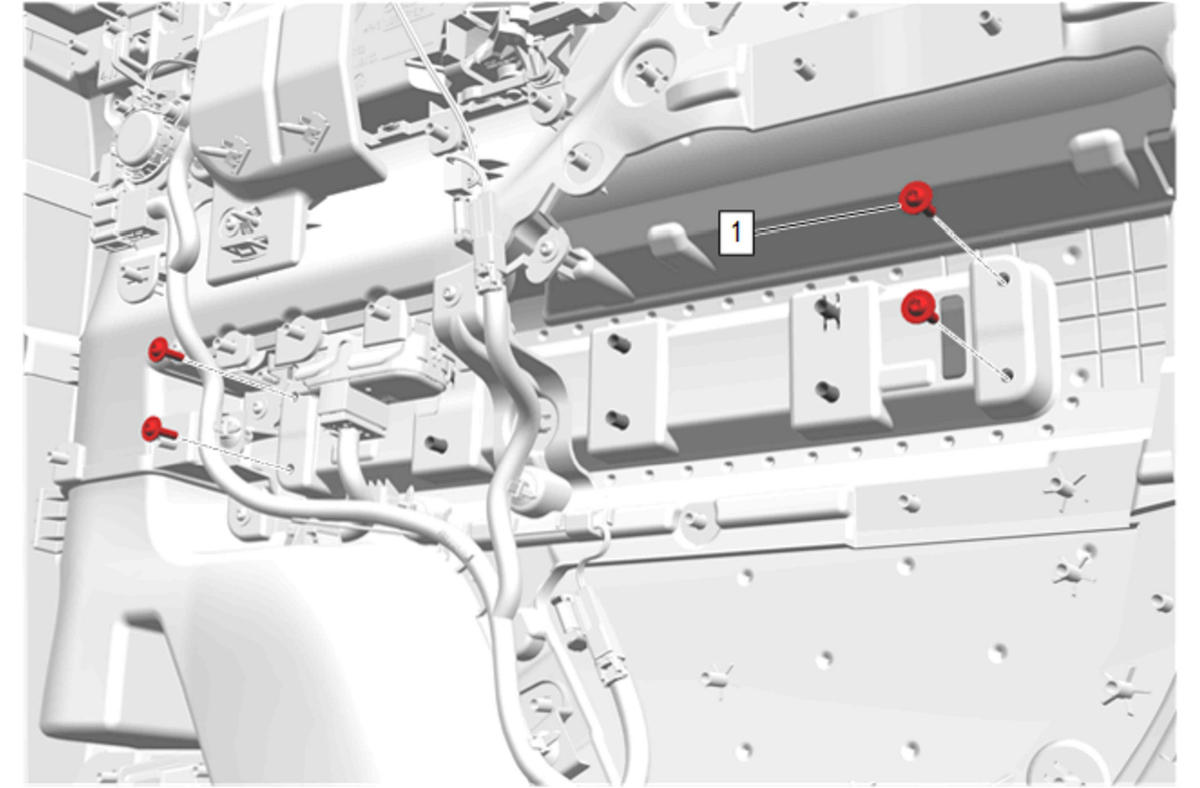

GM5795100
Rear Side Door Trim Panel Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Trim Bolt [4x] - - 2.5 N.m (22 lb in) Rear Side Door Trim Panel Applique Replacement

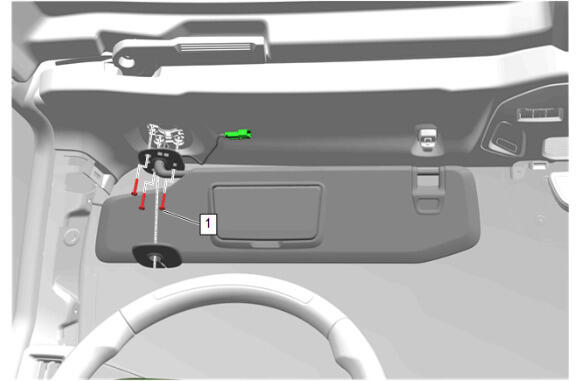

GM5795275
Sunshade

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Sunshade Bolt [3x] - - 2.5 N.m (22 lb in) Sunshade Replacement

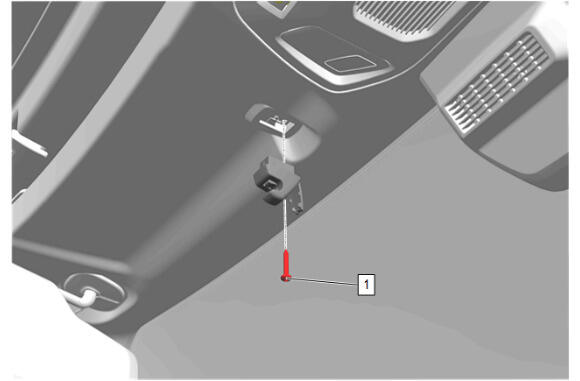

GM5795266
Sunshade Support

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Sunshade Support Bolt - - 2 N.m (18 lb in) Sunshade Support Replacement

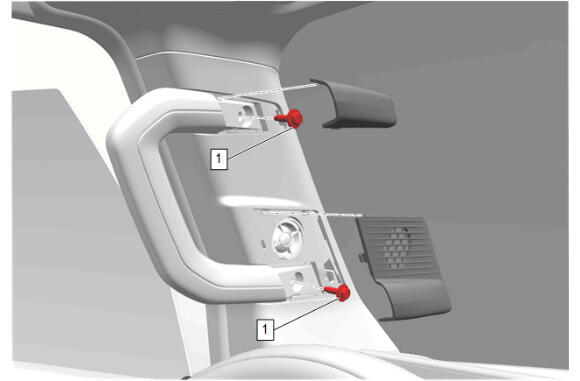

GM5833031
Windshield Garnish Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Pillar Assist Handle Bolt [2x] - - 9 N.m (80 lb in) Windshield Garnish Molding Replacement
GM5794616
Windshield Pillar Assist Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Pillar Assist Handle Bolt [2x] - - 9 N.m (80 lb in) Windshield Pillar Assist Handle Replacement
