Fastener Specifications
Power Seats
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||

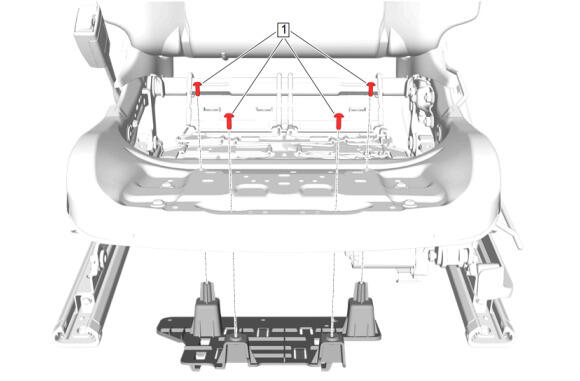

| 1 | Front Seat Adjuster Memory Module Bolt [4x] | - | - | 1 N.m (9 lb in) | Front Seat Adjuster Memory Module Bracket Replacement |
