Installation Procedure

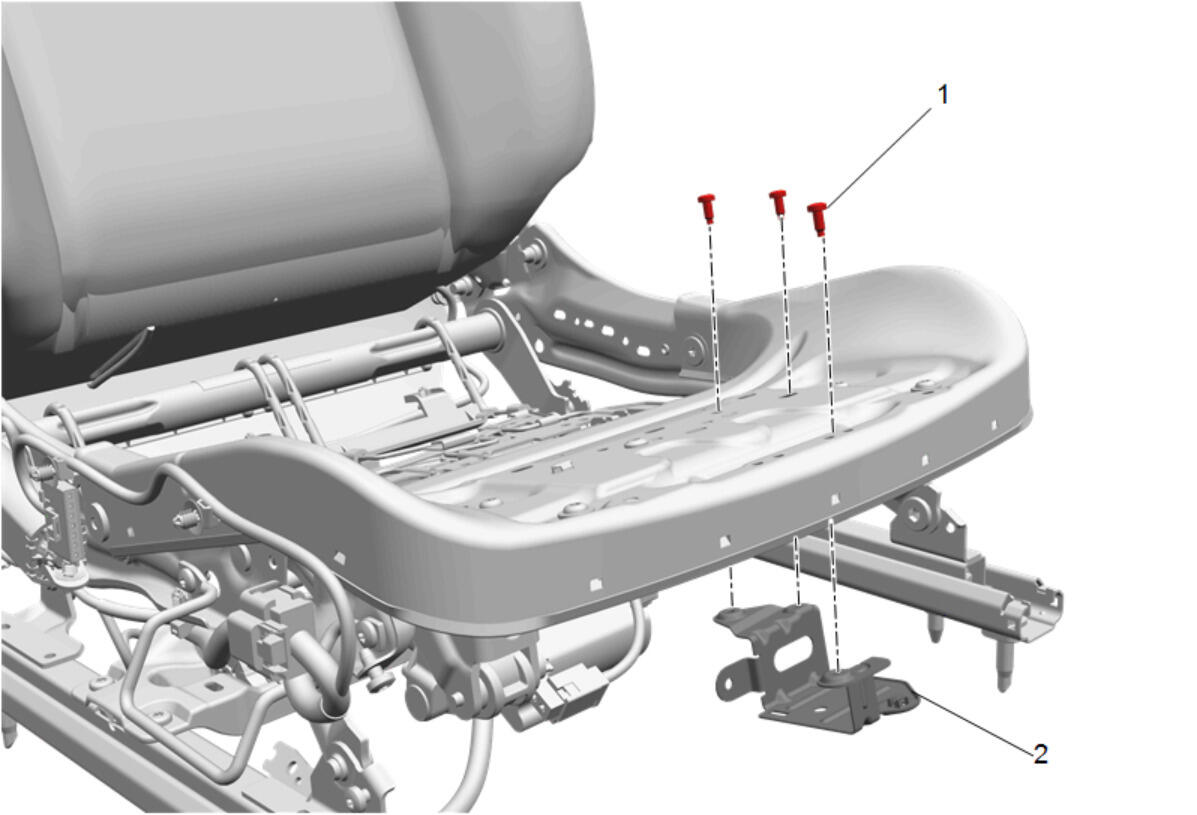

  1. GM5023313

    Front Seat Heater Control Module Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Seat Heater Control Module Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications
  3. Connect and position the wiring harness.

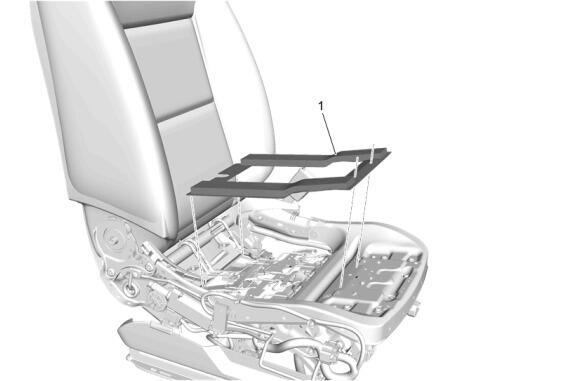

  4. GM5591109

    Front Seat Cushion Pad Front Support (1) - Install

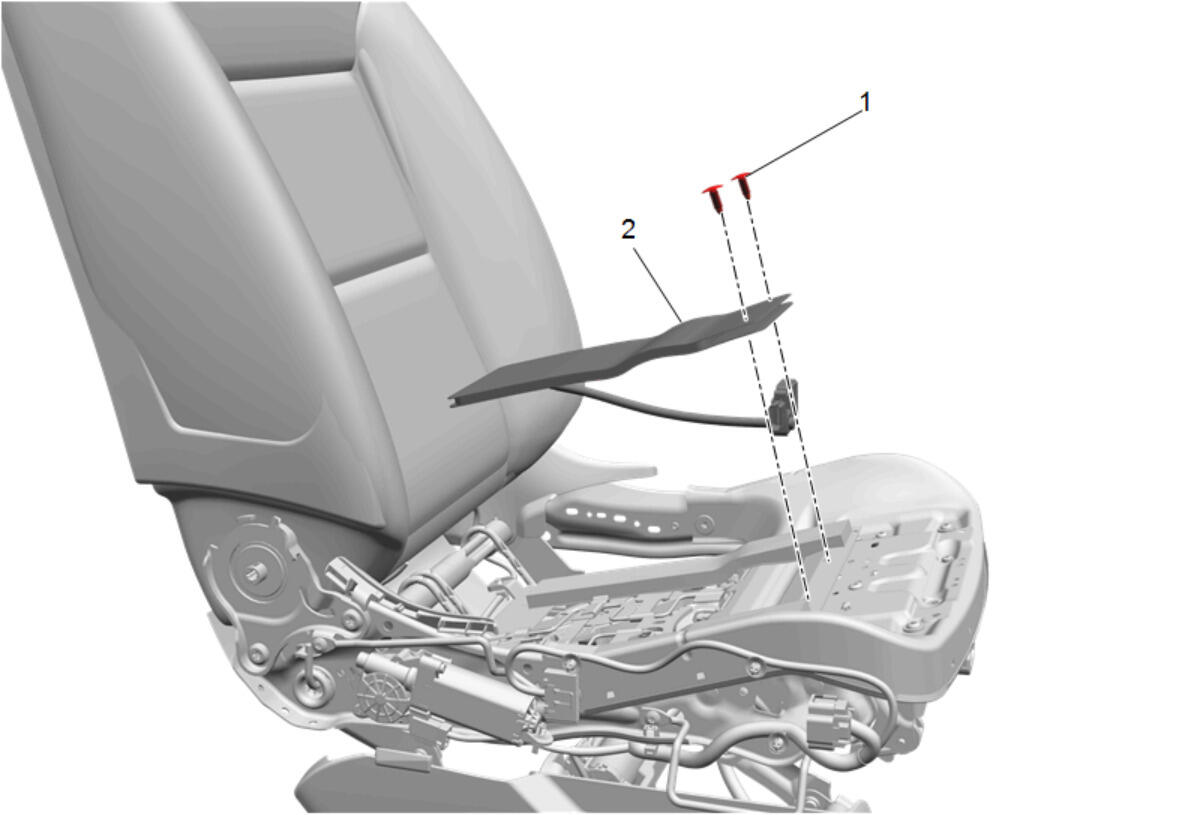

  5. GM5023316

    Airbag Front Passenger Presence Module (2) - Install

  6. Airbag Front Passenger Presence Module Retainer (1) - Install [2x]

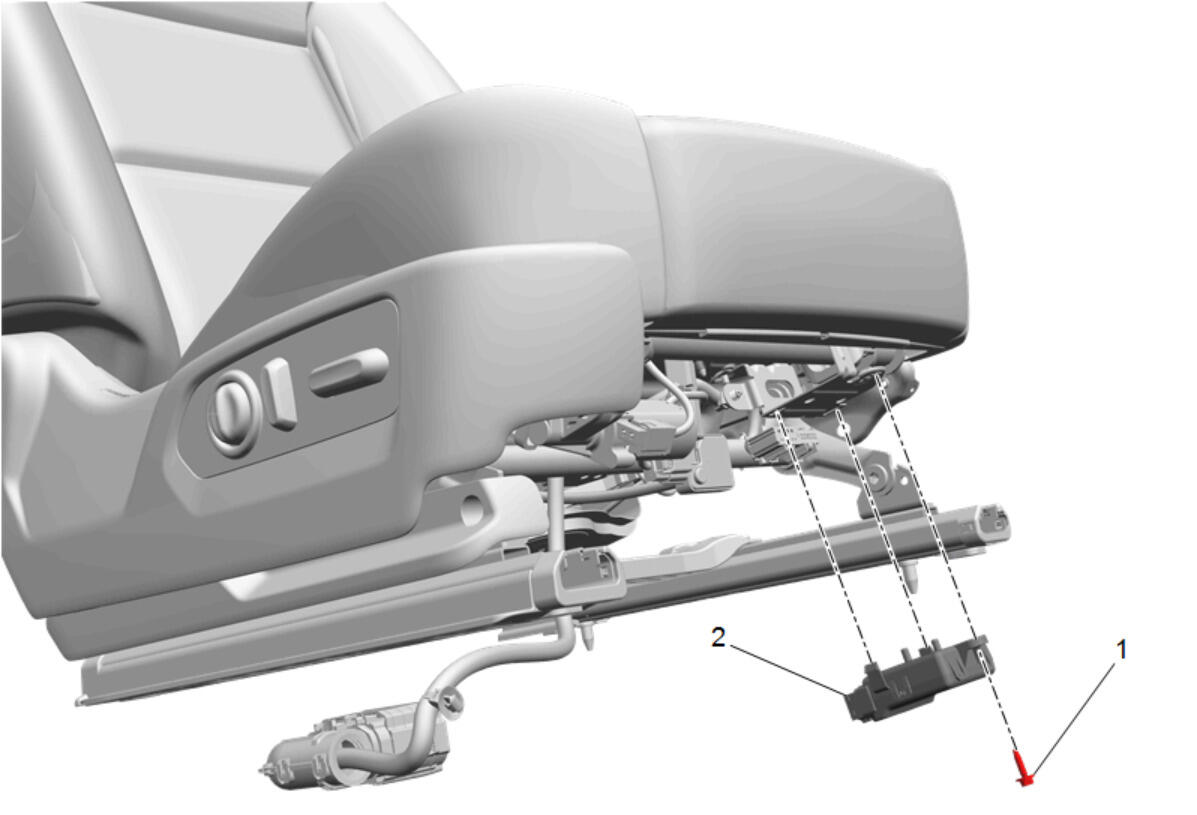

  7. GM5023249

    Front Seat Heater Vent Control Module (2) - Install

  8. Front Seat Heater Control Module Bolt (1) - Install and tighten - Fastener Specifications
  9. GM5788641

    Front Seat Cushion Cover and Pad (1) - Install - Front Seat Cushion Cover and Pad Removal and Installation
