Installation Procedure

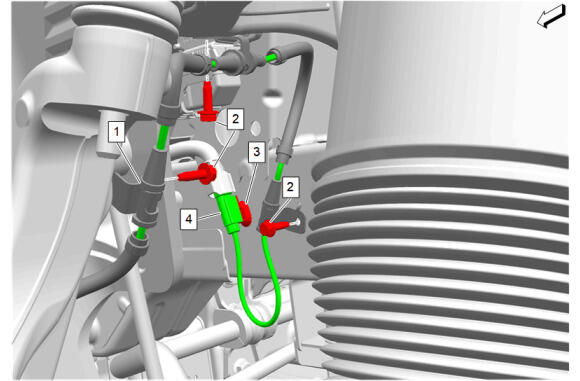

Rear Wheel Speed Sensor (1) - Install
- Rear Wheel Speed Sensor Bolt (2) - Install and tighten [3x] - Fastener Specifications
- Rear Wheel Speed Sensor Retainer (3) - Install
- Connect the electrical connector. (4)

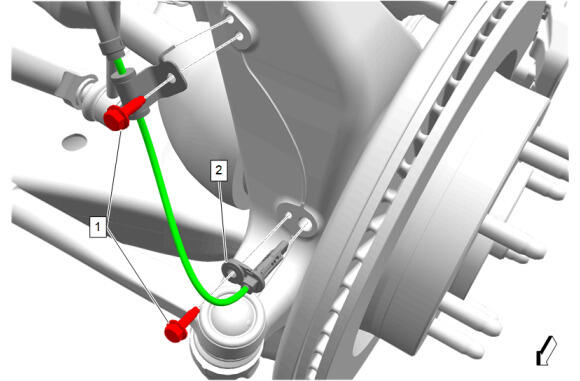

Apply a light coat of wheel speed anti-corrosion grease to the rear wheel speed sensor (2) and mounting pad on the rear suspension knuckle. Adhesives, Fluids, Lubricants, and Sealers
- Rear Wheel Speed Sensor (2) @ Steering Knuckle - Install
- Rear Wheel Speed Sensor Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
