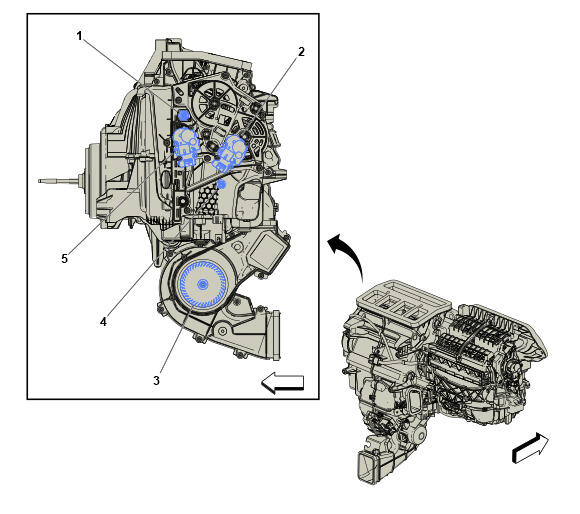

HVAC Assembly Components - Left side
HVAC Assembly Components - Left side
| Components |
|---|
| 1. B39 Air Conditioning Evaporator Air Temperature Sensor B39 Air Conditioning Evaporator Air Temperature Sensor |
| 2. M37P Programmable Mode Valve Actuator M37P Programmable Mode Valve Actuator |
| 3. M8B Blower Motor - Rear M8B Blower Motor - Rear |
| 4. B7LF Duct Air Temperature Sensor - Front Left B7LF Duct Air Temperature Sensor - Front Left |
| 5. M6PL Programmable Temperature Valve Actuator - Left M6PL Programmable Temperature Valve Actuator - Left |
