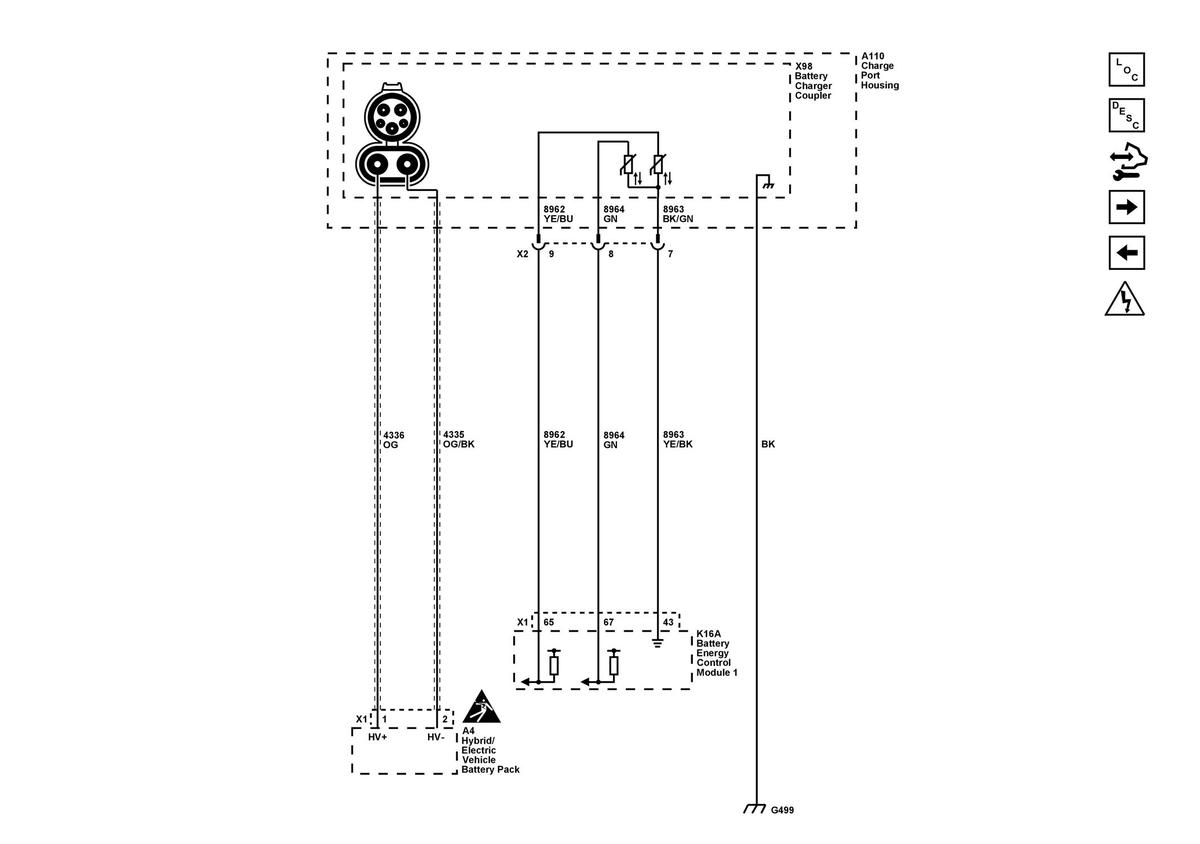

Home › GMC › 2022 › Hummer EV › Repair and Diagnosis › Electrical › Charging Systems › Plug-In Charging System › Schematic Wiring Diagrams › Plug-In Charging Wiring Schematics › DC Power - Battery Charging
