Removal Procedure

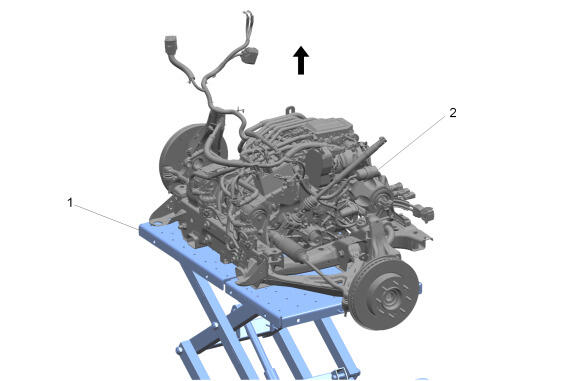

  1. GM5865311Courtesy of GENERAL MOTORS COMPANY

    Front Cradle - (2) Remove - Front Cradle Removal and Installation

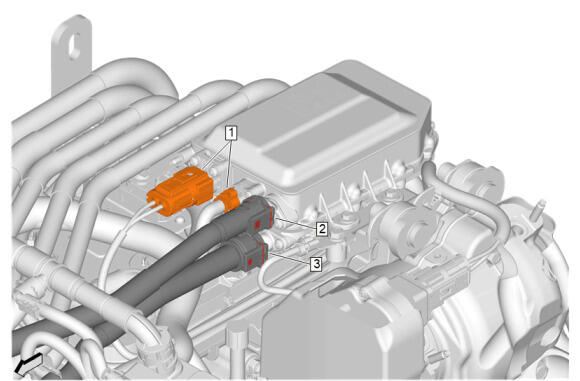

  2. GM5868125Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors. (1)

  3. High Voltage Battery Coolant Cooler Inlet Hose (2) - Disconnect
  4. Heater Coolant Heater Inlet Hose (3) - Disconnect

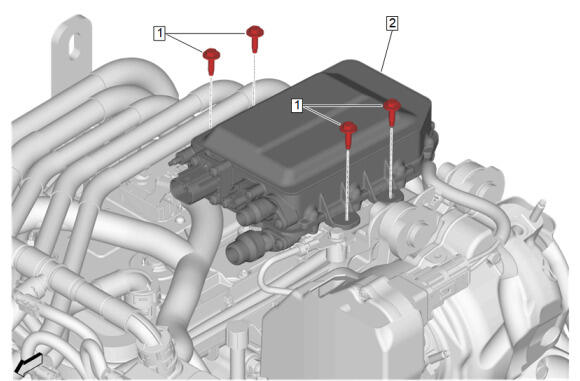

  5. GM5868127Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Heater Bracket Bolt (1) - Remove [4x]

  6. High Voltage Battery Heater Module (2) - Remove

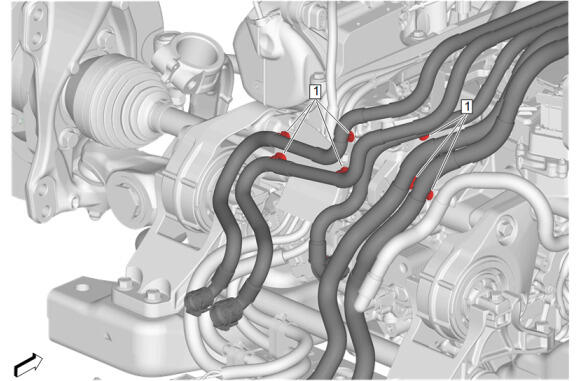

  7. GM5868128Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Pipe Clip (1) - Remove [7x]

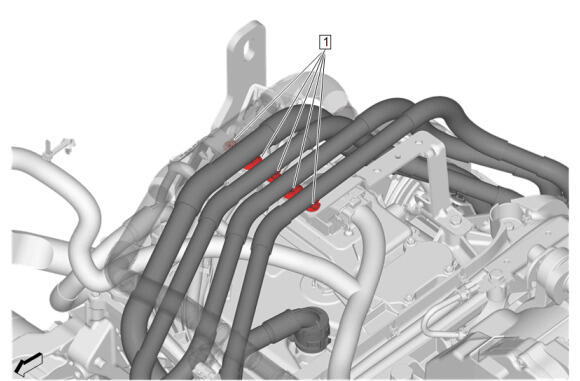

  8. GM5868129Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Pipe Clip (1) - Remove [5x]

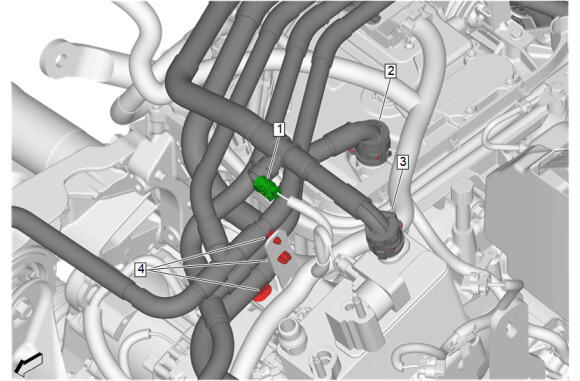

  9. GM5868130Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (1) - Disconnect

  10. Front Electric Drive Transmission Module Hose (2) - Disconnect
  11. High Voltage Battery Coolant Inlet Hose (3) - Disconnect
  12. Transmission Fluid Cooler Pipe Clip (4) - Remove [3x]

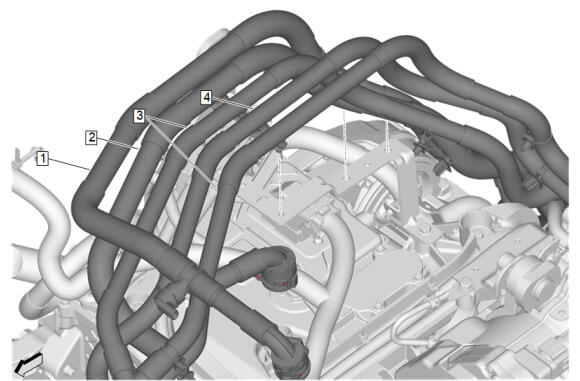

  13. GM5868132Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Coolant Inlet Hose (1) - Remove

  14. High Voltage Battery Coolant Cooler Outlet Hose (2) - Remove
  15. High Voltage Battery Coolant Pump Inlet Hose (3) - Remove
  16. Front Electric Drive Transmission Module Hose (4) - Remove

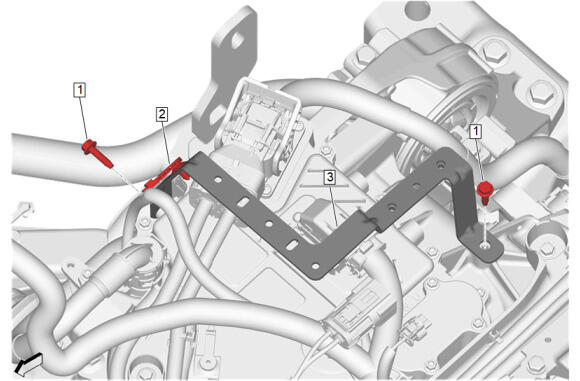

  17. GM5868133Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Heater Bracket Bolt (1) - Remove [2x]

  18. Remove the engine wiring and battery positive cable harness retainer (2).
  19. High Voltage Battery Heater Bracket (3) - Remove

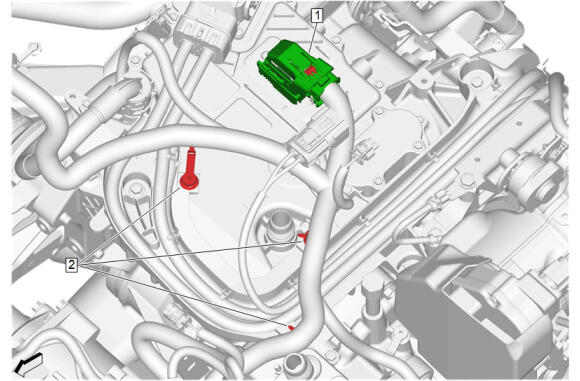

  20. GM5868134Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (1) - Disconnect

  21. Remove the engine wiring and battery positive cable harness retainers (2).

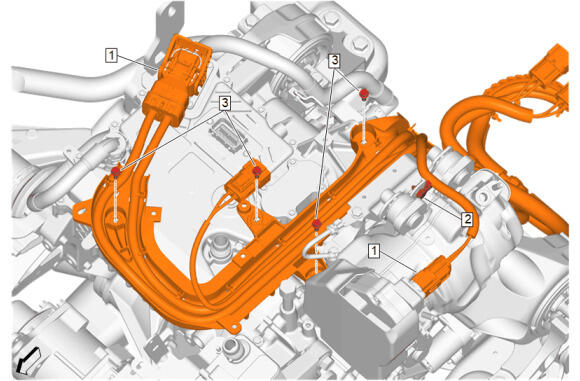

  22. GM5868135Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Disconnect the electrical connectors. (1)

  23. Remove the battery positive and negative cable retainer (2).
  24. Battery Cable Clip Bracket Bolt (3) - Remove [4x]

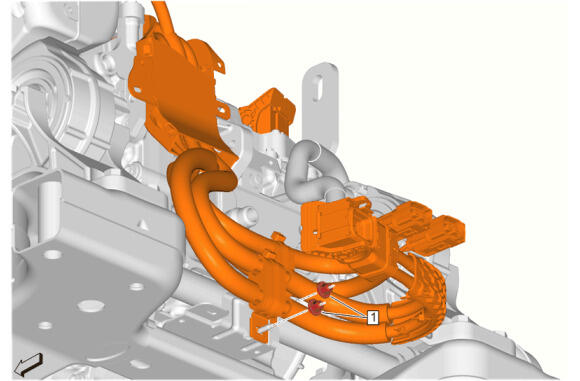

  25. GM5868136Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Battery Positive Cable Channel Nut (1) - Remove [2x]

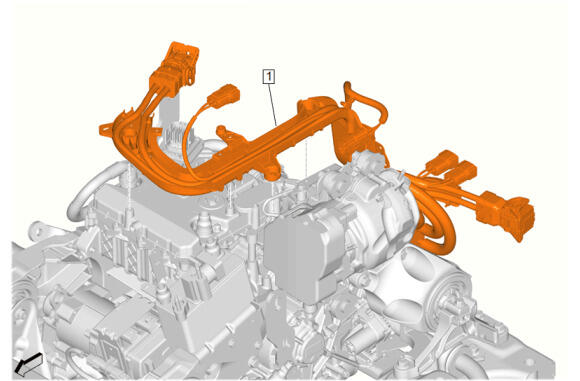

  26. GM5868137Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Battery Positive and Negative Cable (1) - Remove
