Fastener Specifications
Accelerator Pedal Nuts
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||

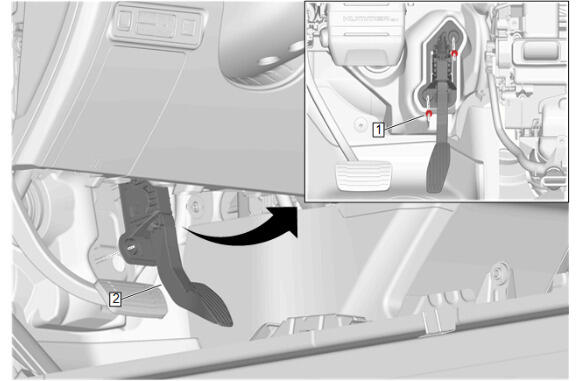

| 1 | Accelerator Pedal Nut [2x] | - | - | 9 N.m (80 lb in) | Accelerator Pedal Replacement |
