Installation Procedure

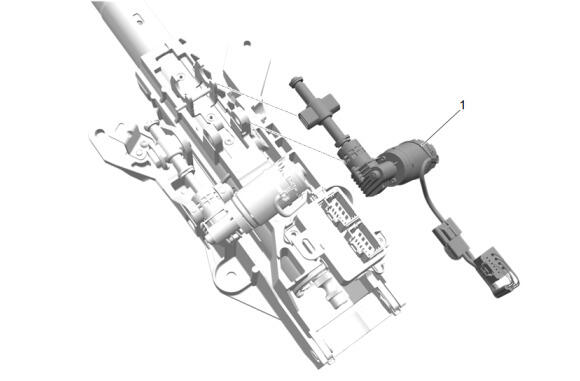

  1. GM5832941Courtesy of GENERAL MOTORS COMPANY

    Steering Column Telescope Actuator Motor (1) - Install

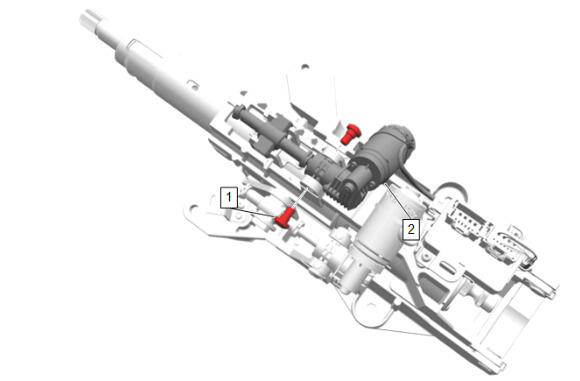

  2. GM5845849Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution .

    Steering Column Telescope Actuator Bolt (1) - Install and tighten [2x] - Fastener Specifications

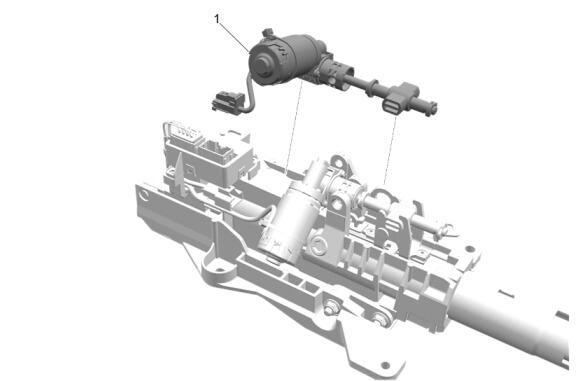

  3. GM5823639Courtesy of GENERAL MOTORS COMPANY

    Steering Column Tilt Wheel Actuator Motor (1) - Install

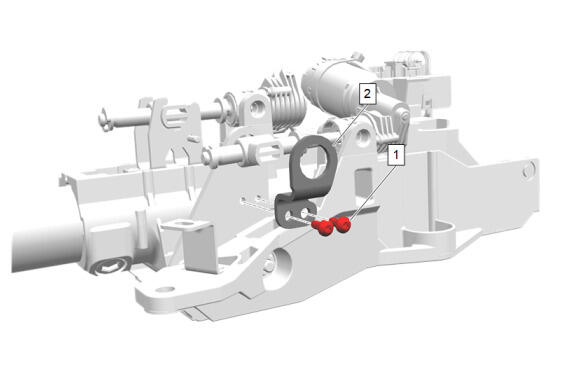

  4. GM5823635Courtesy of GENERAL MOTORS COMPANY

    Steering Column Tilt Wheel Actuator Bracket (2) - Install

  5. Steering Column Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications

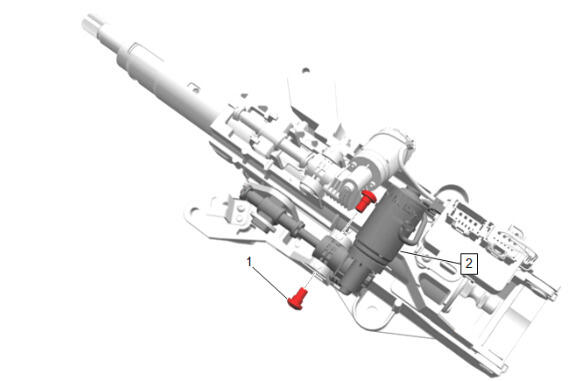

  6. GM5845846Courtesy of GENERAL MOTORS COMPANY

    Steering Column Tilt Wheel Actuator Bolt (1) - Install and tighten [2x] - Fastener Specifications

  7. GM5832346Courtesy of GENERAL MOTORS COMPANY

    Steering Column Control Module (1) - Install

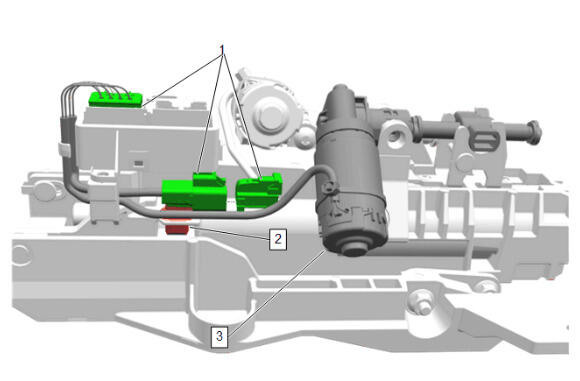

  8. GM5832939Courtesy of GENERAL MOTORS COMPANY

    Retainer (2) - Install

  9. Connect the electrical connectors. (1)

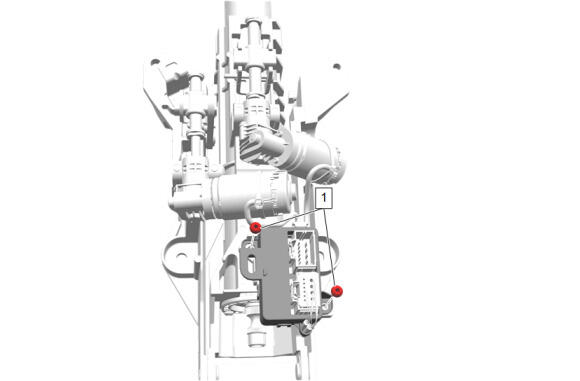

  10. GM5845933Courtesy of GENERAL MOTORS COMPANY

    Steering Column Control Module Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications

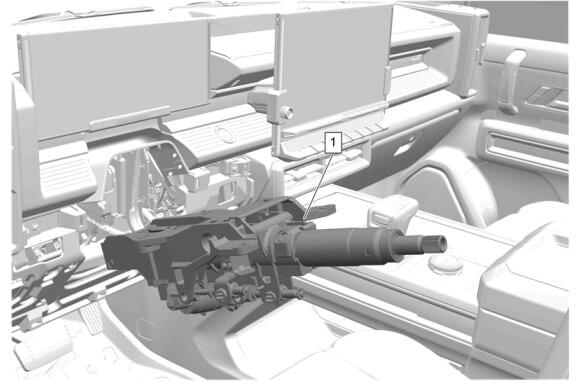

  11. GM5819235Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Install

  12. Connect the steering column electrical connectors.

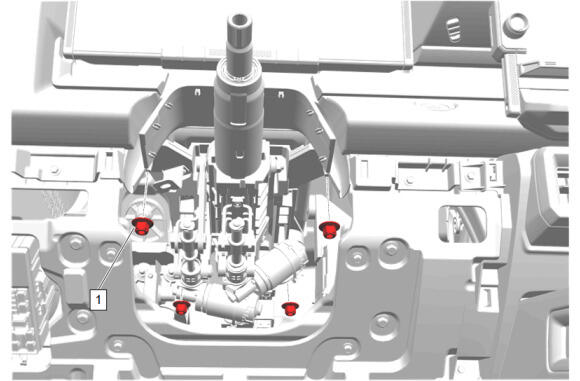

  13. GM5819232Courtesy of GENERAL MOTORS COMPANY

    Steering Column Nut (1) - Install and tighten in sequence [4x] - Fastener Specifications

  14. Connect the electrical connector.

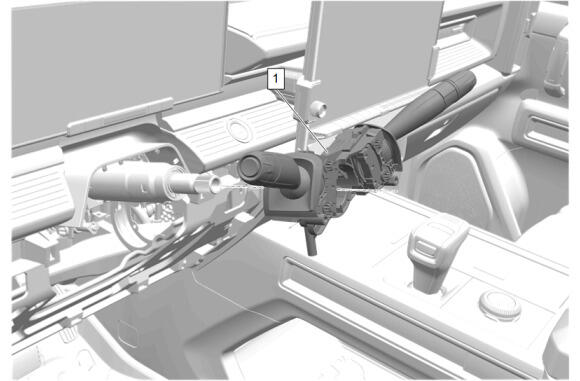

  15. GM5819228Courtesy of GENERAL MOTORS COMPANY

    Install turn signal switch, windshield wiper and windshield washer switch, and turn signal switch bracket (1) as an assembly.

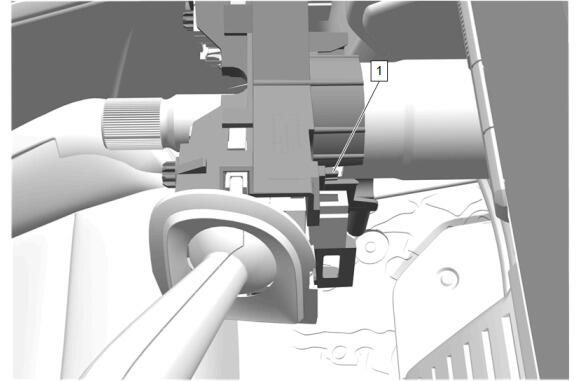

  16. GM5819226Courtesy of GENERAL MOTORS COMPANY

    Ensure the locking tab (1) on the right side of the turn signal switch bracket is fully seated.

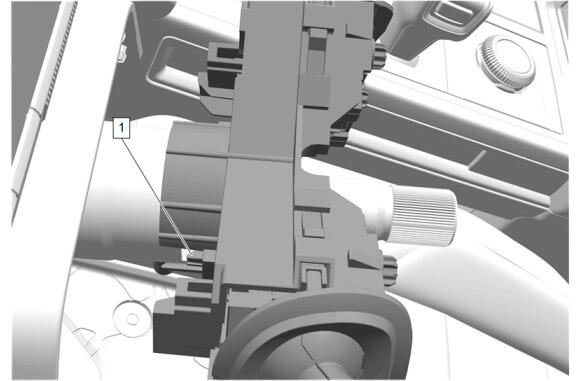

  17. GM5819222Courtesy of GENERAL MOTORS COMPANY

    Ensure the locking tab (1) on the left side of the turn signal switch bracket is fully seated.

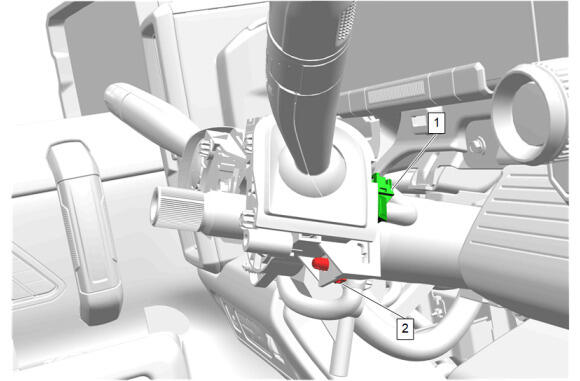

  18. GM5819220Courtesy of GENERAL MOTORS COMPANY

    Install the wiring harness retainer (2) on the right side of the turn signal bracket.

  19. Connect the electrical connector. (1)

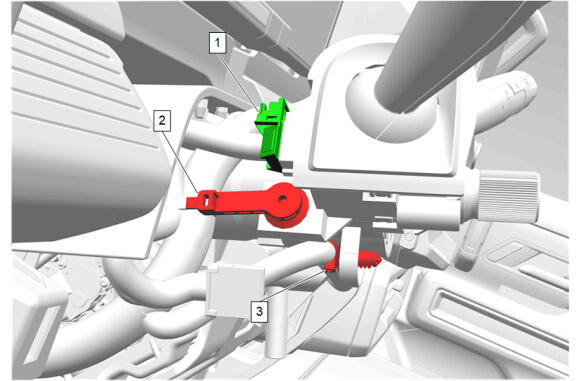

  20. GM5819218Courtesy of GENERAL MOTORS COMPANY

    Install the wiring harness clip (2) and wiring harness retainer (3) on the left side of the turn signal bracket.

  21. Connect the electrical connector. (1)

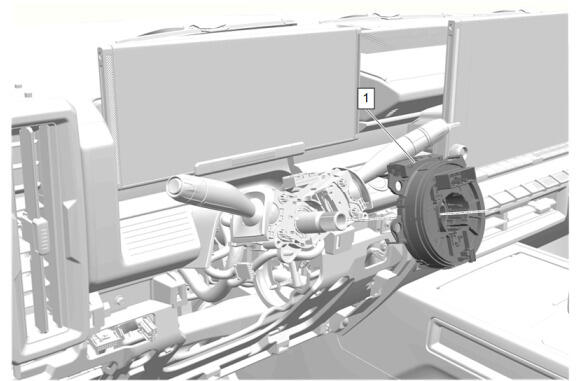

  22. GM5814916Courtesy of GENERAL MOTORS COMPANY

    Ensure the steering wheel airbag coil is CENTERED during installation. Steering Wheel Airbag Coil Centering

  23. Steering Wheel Airbag Coil (1) - Install
  24. Connect the electrical connectors.

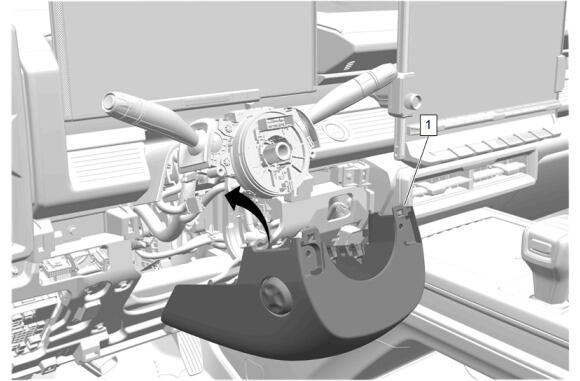

  25. GM5814907Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover (1) - Install

  26. Connect the electrical connector.

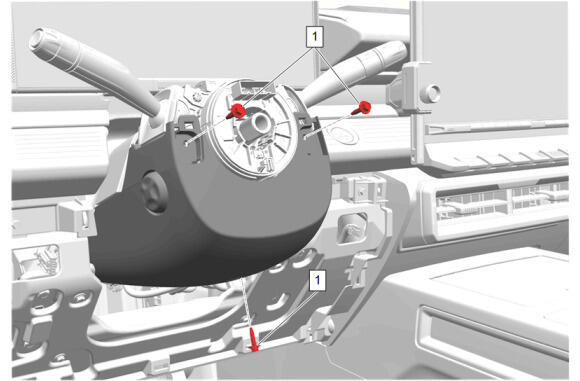

  27. GM5814903Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications

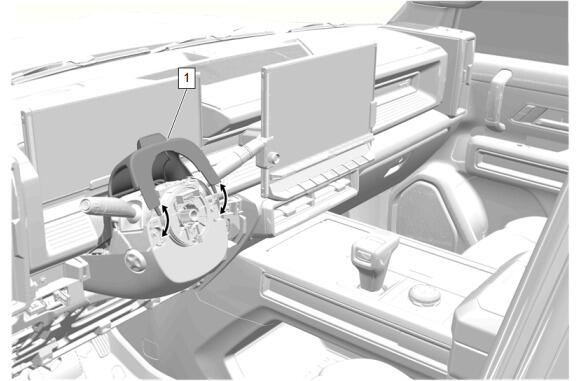

  28. GM5814896Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  29. Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.

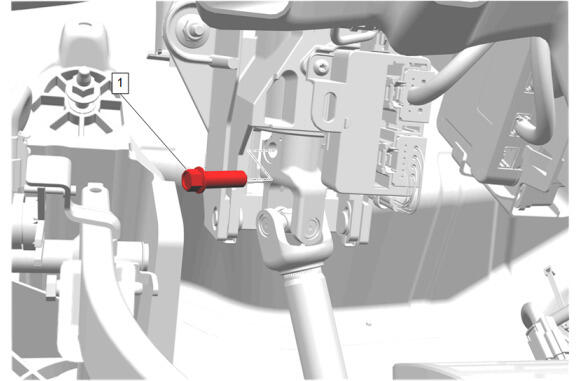

  30. GM5814882Courtesy of GENERAL MOTORS COMPANY

    Upper Intermediate Steering Shaft - Install

  31. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  32. Upper Intermediate Steering Shaft Bolt (1) - Install and tighten - Fastener Specifications
  33. Remove the device used to prevent steering column rotation.

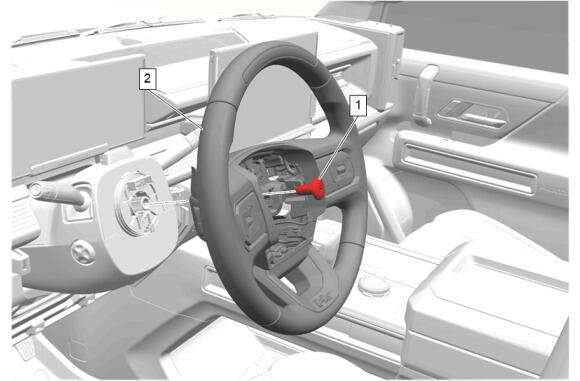

  34. GM5814887Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  35. Steering Wheel (2) - Install
  36. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  37. Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications

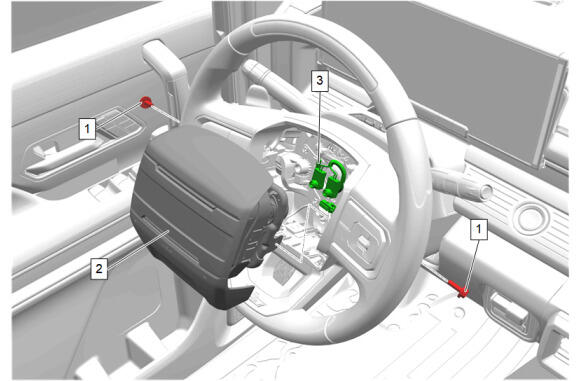

  38. GM5810539Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  39. Install any connector position assurance (CPA) devices or secondary locks.
  40. WARNING:

    After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result.

  41. Steering Wheel Airbag (2) - Install
  42. Steering Wheel Airbag Bolt (1) - Install and tighten [2x] - Fastener Specifications

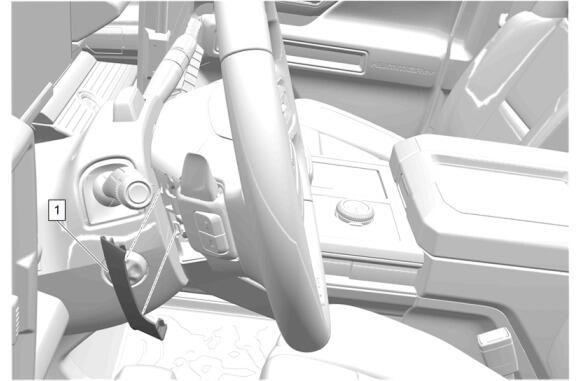

  43. GM5810457Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the left and right steering wheel airbag access hole covers (1).

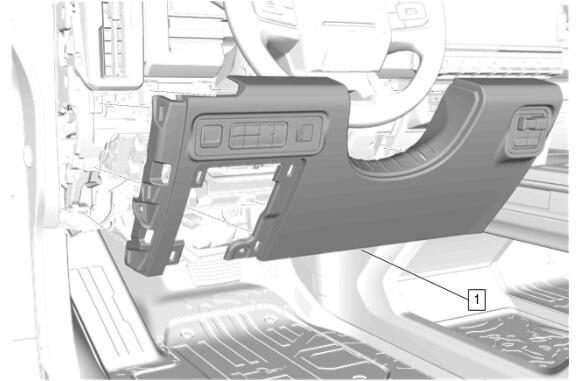

  44. GM5796821Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  45. Instrument Panel Knee Bolster (1) - Install

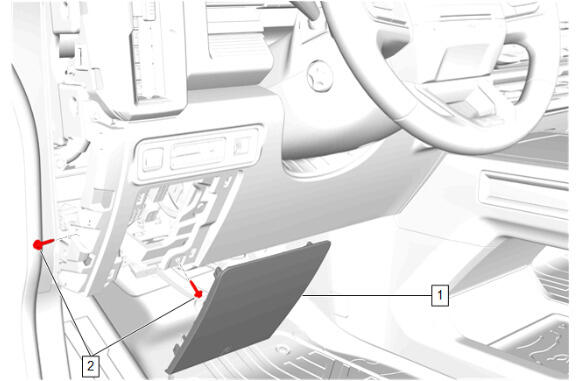

  46. GM5796820Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Bolt (2) - Install and tighten [2x] - Fastener Specifications

  47. Instrument Panel Fuse Block Access Hole Cover (1) - Install

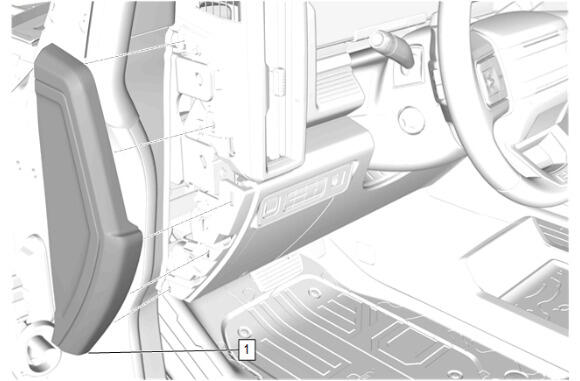

  48. GM5775549Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover (1) - Install

  49. Enable the SIR System. SIR Disabling and Enabling
