Installation Procedure

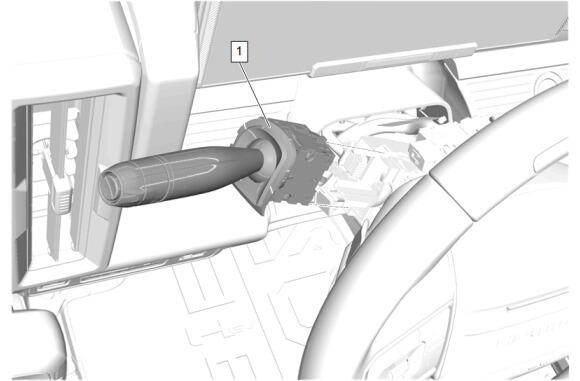

  1. GM5833021Courtesy of GENERAL MOTORS COMPANY

    Turn Signal Switch (1) - Install

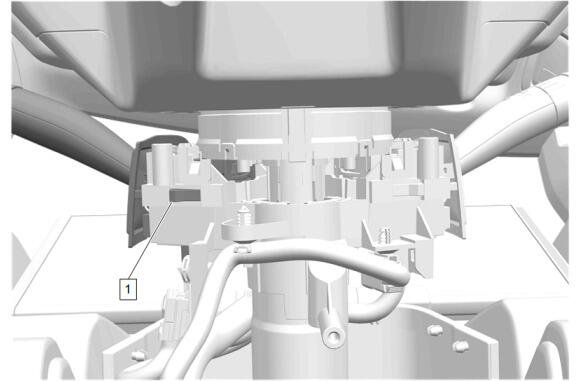

  2. GM5833019Courtesy of GENERAL MOTORS COMPANY

    Ensure the turn signal switch lower retaining tab (1) is engaged.

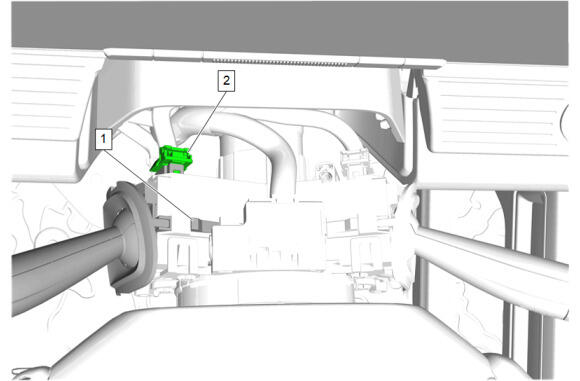

  3. GM5833018Courtesy of GENERAL MOTORS COMPANY

    Ensure the turn signal switch upper retaining tab (1) is engaged.

  4. Connect the electrical connector. (2)

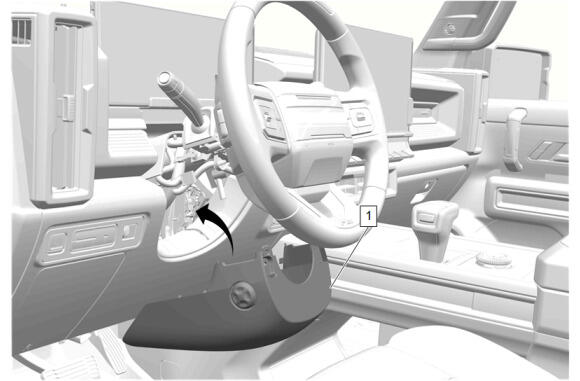

  5. GM5821246Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  6. Instrument Panel Steering Column Lower Trim Cover (1) - Install

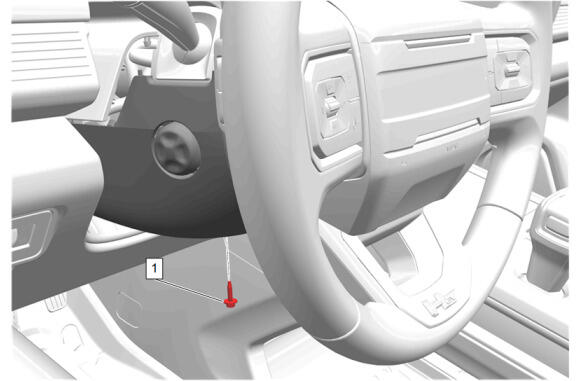

  7. GM5821244Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

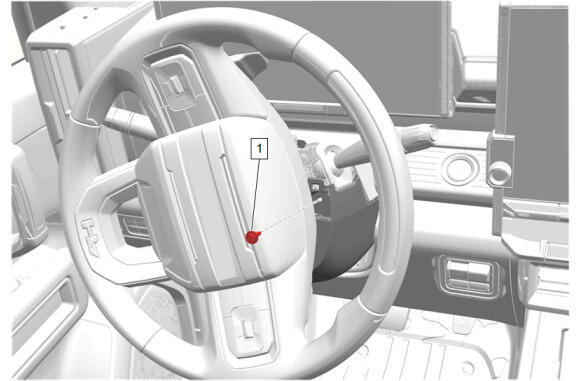

  8. GM5821243Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the right of the centered position.

  9. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

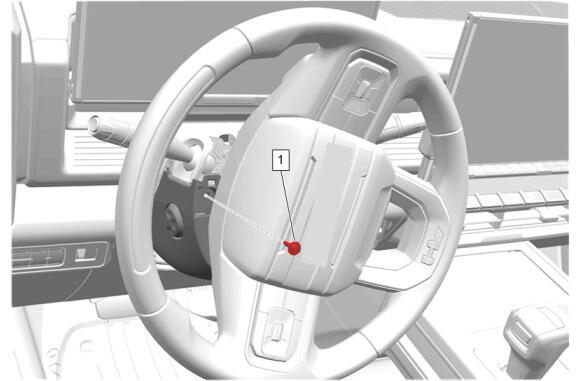

  10. GM5821242Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the left of the centered position.

  11. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
  12. Turn the steering wheel to the centered position.

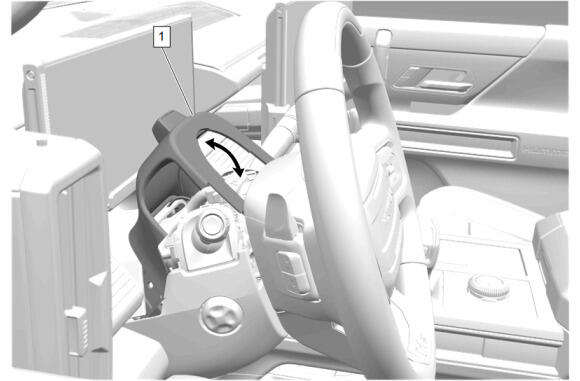

  13. GM5819296Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
