Front Suspension 4 Corner Leveling System Position Sensor Replacement: Removal
- Remove the tire and wheel assembly. Tire and Wheel Removal and Installation

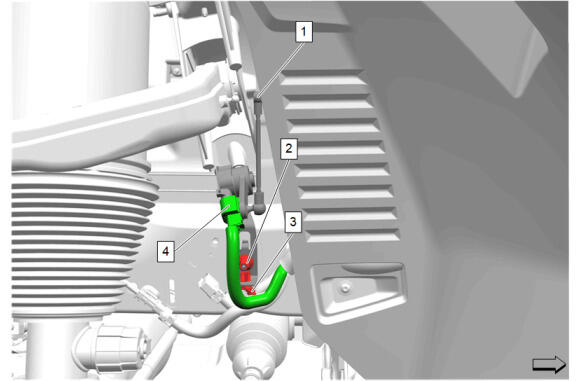

Disconnect the front suspension 4 corner leveling system position sensor link (1) from the front upper control arm.
- Disconnect the electrical connector (4).
- Loosen the front suspension 4 corner leveling system position sensor (2).
- Remove the front suspension 4 corner leveling system position sensor retainer (3).

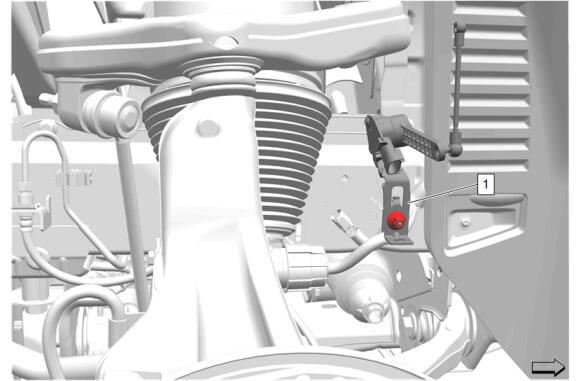

Remove the front suspension 4 corner leveling system position sensor (1) from the keyhole slot at the frame.
NOTE:
The nut is integral to the sensor, Do NOT remove separately.
