Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

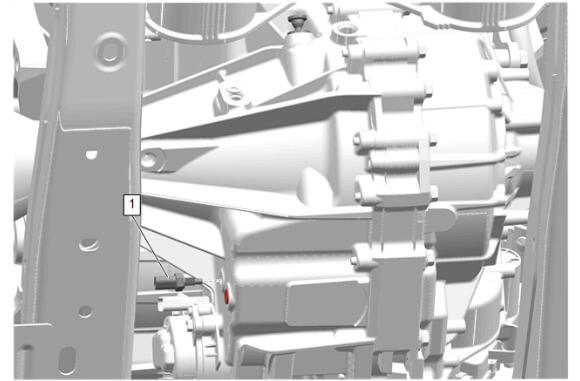

Automatic Transmission Fluid Temperature Sensor (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Remove the drain pan.
Check the transmission fluid level. Transmission Fluid Level and Condition Check
Courtesy of GENERAL MOTORS COMPANY

Underbody Skid Shield (3) - Install - Underbody Skid Shield Replacement
