Drive Motor Power Inverter Module Installation

Courtesy of GENERAL MOTORS COMPANY

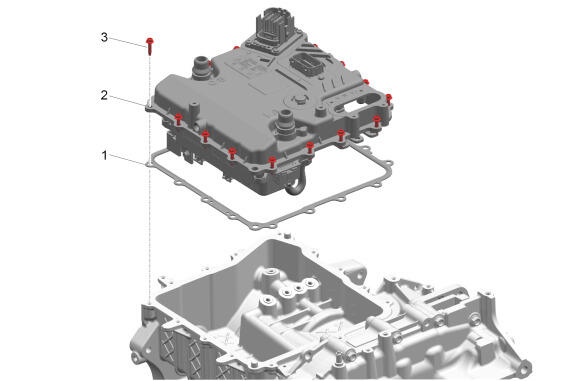

Drive Motor Power Inverter Module Cover Gasket (1) - Install
Drive Motor Power Inverter Module (2) - Install
Drive Motor Power Inverter Module Bolt (3) - Install and tighten in sequence [16x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

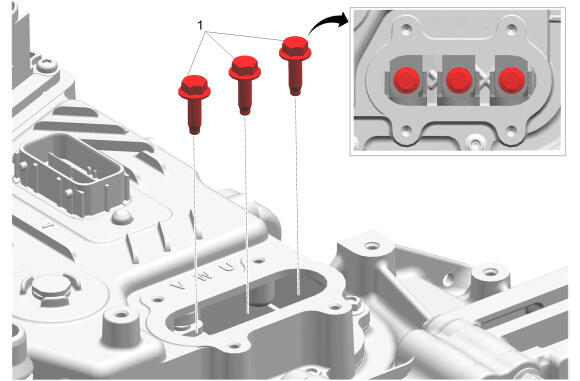

Using a magnetic socket, Install and tighten the three drive motor power inverter module connector bolts (1). Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Drive motor power inverter module cover seal is not serviceable separately.

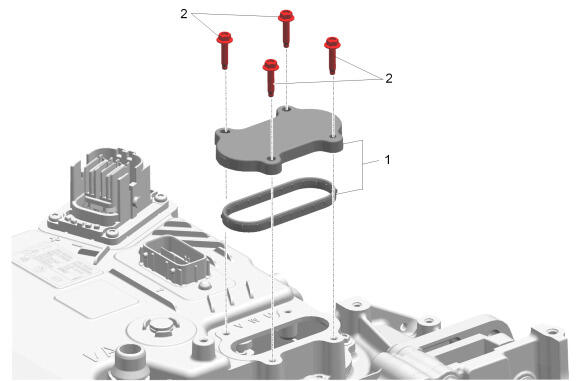

Drive Motor Power Inverter Module Cover (1) - Install
Drive Motor Power Inverter Module Cover Bolt (2) - Install and tighten [4x] - Fastener Specifications
