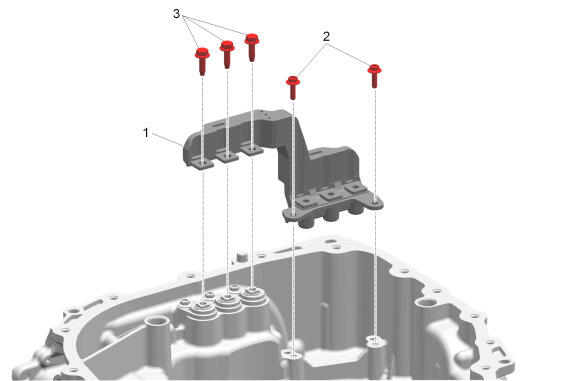

Drive Motor Power Inverter Module Terminal Insulator Block Installation

Courtesy of GENERAL MOTORS COMPANY

Drive Motor Power Inverter Module Terminal Insulator Block (1) - Install
Drive Motor Power Inverter Module Connector Bolt (2) - Install and tighten [2x] - Fastener Specifications
Drive Motor Power Inverter Module Connector Bolt (3) - Install and tighten [3x] - Fastener Specifications
