Removal Procedure

  1. GM5002004Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct Bolt (1) - Remove

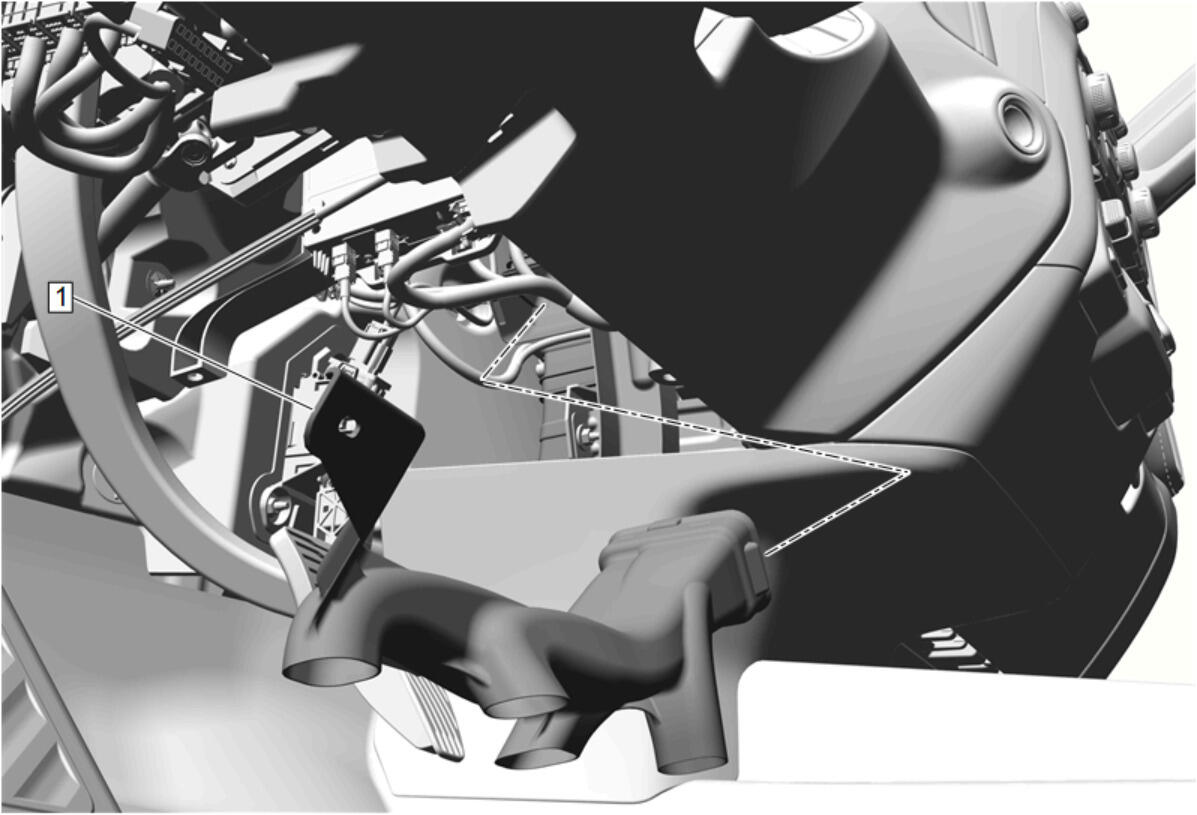

  2. GM5002006Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side (1) - Remove

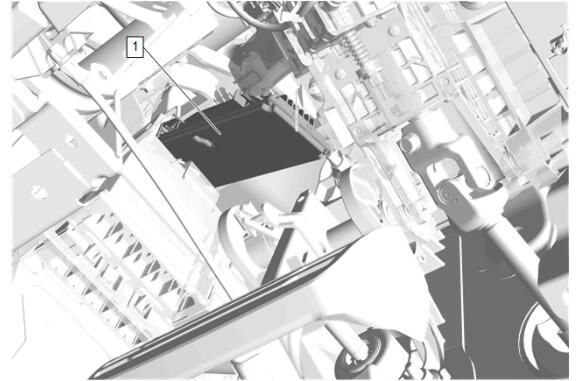

  3. GM5903412Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors.

  4. Release the retaining tabs.
  5. Driver Monitoring System Module (1) - Remove
