Fastener Specifications

GM5869997Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Battery Insulator Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Insulator Bolt - - 22 N.m (16 lb ft) Battery Tray Replacement (L82, L84, L87)Battery Tray Replacement (L3B)Battery Tray Replacement (LM2)
GM4999568Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Battery Negative Cable (With KL9)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Nut - - 9 N.m (80 lb in) Battery Negative Cable Replacement (With KL9)
2 Battery Negative Cable Ground Nut - - 22 N.m (16 lb ft) Battery Negative Cable Replacement (With KL9)
GM4999458Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Battery Negative Cable (Without KL9)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Nut - - 9 N.m (80 lb in) Battery Negative Cable Replacement (Without KL9)
2 Battery Negative Cable Ground Nut - - 22 N.m (16 lb ft) Battery Negative Cable Replacement (Without KL9)
GM5661634Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Battery Negative Cable Extension Cable (L3B)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Nut - - 22 N.m (16 lb ft) Battery Negative Cable Extension Cable Replacement (L3B)
2 Battery Negative Cable Ground Bolt - - 58 N.m (43 lb ft) Battery Negative Cable Extension Cable Replacement (L3B)
GM5644181Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Battery Negative Cable Extension Cable Strap (L84, L87)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Nut - - 22 N.m (16 lb ft) Battery Negative Cable Extension Cable Strap Replacement (L84, L87)
2 Battery Negative Cable Ground Bolt - - 58 N.m (43 lb ft) Battery Negative Cable Extension Cable Strap Replacement (L84, L87)
GM5661659Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Battery Negative Cable Extension Cable Strap (LM2)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Catalytic Converter Brace Bracket Nut - - 22 N.m (16 lb ft) Battery Negative Cable Extension Cable Strap Replacement (LM2)
2 Battery Negative Cable Ground Nut - - 22 N.m (16 lb ft) Battery Negative Cable Extension Cable Strap Replacement (LM2)
GM5590445Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Battery Positive and Negative Cable Strap

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Body Ground Stud Nut - - 22 N.m (16 lb ft) Battery Positive and Negative Cable Strap Replacement
2 Battery Negative Cable Ground Bolt - - 22 N.m (16 lb ft) Battery Positive and Negative Cable Strap Replacement
GM5589719Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Battery Tray and Engine Wiring Harness Fuse Block Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Tray Bolt [7x] - - 22 N.m (16 lb ft) Battery Tray Replacement (L82, L84, L87)Battery Tray Replacement (L3B)Battery Tray Replacement (LM2)
2 Battery Hold Down Retainer Bolt - - 22 N.m (16 lb ft) Battery Replacement (L82, L84, L87)Battery Replacement (L3B)Battery Replacement (LM2)
3 Engine Wiring Harness Fuse Block Bracket Bolt [2x] - - 9 N.m (80 lb in) Engine Wiring Harness Fuse Block Bracket Replacement
GM5619620Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Chassis Wiring Harness Front Bracket (LM2)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Chassis Front Wiring Harness Bracket Bolt- Rear - - 22 N.m (16 lb ft) Starter Replacement (LM2)
2 Chassis Front Wiring Harness Bracket Bolt- Front - - 9 N.m (80 lb in) Starter Replacement (LM2)
GM5645491Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Wiring Harness Bracket (LM2)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Fuse Block Bracket Bolt - - 9 N.m (80 lb in) Air Cleaner Assembly Replacement
GM5876245Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Heater Inlet Hose Clip Bracket Nut

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Heater Inlet Hose Clip Bracket Nut - - 9 N.m (80 lb in) Battery Tray Replacement (L82, L84, L87)Battery Tray Replacement (L3B)Battery Tray Replacement (LM2)
GM5644109Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Left Side of Engine (L3B)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Radiator Inlet Hose Bracket Bolt - - 9 N.m (80 lb in) Generator Replacement (L3B)
2 Generator Bolt [2x] - - 22 N.m (16 lb ft) Generator Replacement (L3B)
3 Battery Positive Cable Nut - - 15 N.m (11 lb ft) Generator Replacement (L3B)
4 Battery Positive Cable Nut - - 12.5 N.m (111 lb in) Starter Replacement (L3B)
5 Starter Bolt [3x] - - 58 N.m (43 lb ft) Starter Replacement (L3B)
GM5620568Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Left Side of Engine (LM2)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Bracket Bolt - - 9 N.m (80 lb in) Generator Replacement (LM2)
2 Generator Bolt [2x] - - 22 N.m (16 lb ft) Generator Replacement (LM2)
3 Battery Positive Cable Nut - - 15 N.m (11 lb ft) Generator Replacement (LM2)
GM5604877Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Multifunction Power Supply Converter Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Multifunction Power Supply Converter Nut [2x] - - 9 N.m (80 lb in) Multifunction Power Supply Converter Bracket Replacement
GM5584416Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Right Side of Engine (L84, L87)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Starter Bolt [2x] - - 58 N.m (43 lb ft) Starter Replacement (L84, L87)
2 Starter Heat Shield Bolt - - 22 N.m (16 lb ft) Starter Heat Shield Replacement (L84, L87)
3 Starter Heat Shield Bolt [2x] - - 9 N.m (80 lb in) Starter Heat Shield Replacement (L84, L87)
4 Battery Positive Cable Nut - - 15 N.m (11 lb ft) Generator Replacement (L84, L87)
5 Generator Bolt [2x] - - 58 N.m (43 lb ft) Generator Replacement (L84, L87)
6 Starter Solenoid Cable Nut - - 14 N.m (124 lb in) Starter Replacement (L84, L87)
7 Battery Negative Cable Ground Bolt - - 22 N.m (16 lb ft) Starter Solenoid Cable Replacement (L84, L87)
GM5620566Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Right Side of Engine (LM2)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Starter Heat Shield Bolt - - 9 N.m (80 lb in) Starter Heat Shield Replacement (LM2)
2 Starter Heat Shield Bolt [2x] - - 9 N.m (80 lb in) Starter Heat Shield Replacement (LM2)
3 Starter Solenoid Cable Nut - - 15 N.m (11 lb ft) Starter Replacement (LM2)
4 Wiring Harness Conduit Nut - - 9 N.m (80 lb in) Starter Replacement (LM2)
5 Engine Wiring Harness Ground Nut - - 22 N.m (16 lb ft) Starter Solenoid Cable Replacement (L3B)
6 Starter Bolt [3x] - - 58 N.m (43 lb ft) Starter Replacement (LM2)

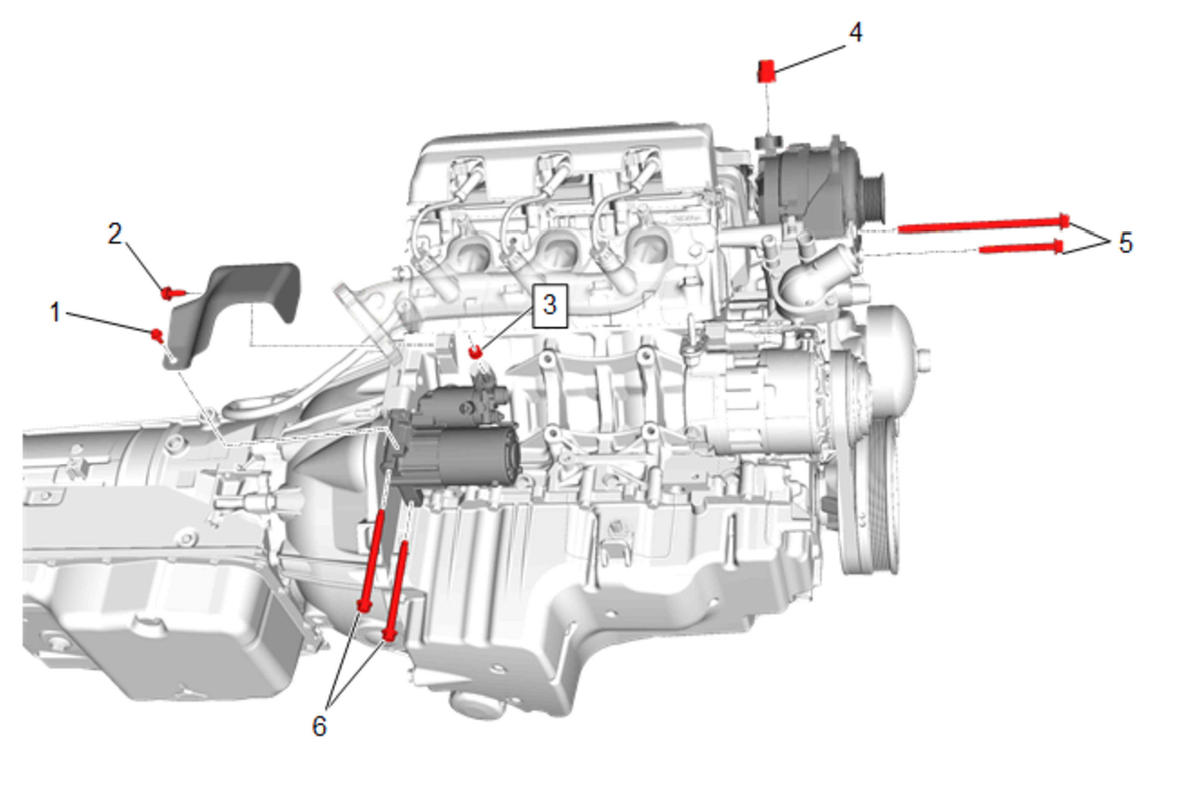

GM5644123Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Right Side of Engine (LV3)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Starter Heat Shield Bolt - - 9 N.m (80 lb in) Starter Replacement (L3B)
2 Starter Heat Shield Bolt - - 22 N.m (16 lb ft) Starter Replacement (L3B)
3 Starter Solenoid Cable Nut - - 14 N.m (124 lb in) Starter Replacement (L3B)
4 Battery Positive Cable Nut - - 15 N.m (11 lb ft) Generator Replacement (L3B)
5 Generator Bolt [2x] - - 58 N.m (43 lb ft) Starter Replacement (L3B)
6 Starter Bolt [2x] - - 58 N.m (43 lb ft) Starter Replacement (L3B)
GM5587487Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Right Side of Engine Compartment

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Positive Cable Nut - - 15 N.m (11 lb ft) Engine Wiring Harness Junction Block Replacement
2 Engine Wiring Harness Junction Block Bolt [4x] - - 6 N.m (53 lb in) Engine Wiring Harness Junction Block Replacement
3 Battery Negative Cable Ground Nut - - 22 N.m (16 lb ft) Starter Solenoid Cable Replacement (L82, L84, L87)Starter Solenoid Cable Replacement (L3B)
4 Battery Hold Down Strap Bolt [2x] - Yes 22 N.m (16 lb ft) Battery Hold Down Strap Replacement (L3B, L82, L84, L87)Battery Hold Down Strap Replacement (LM2)
5 Battery Post Negative Cable Clamp Nut - - 9 N.m (80 lb in) Battery Monitor Module Replacement (KL9)
6 Battery Negative Post Clamp Nut - - 4.5 N.m (40 lb in) Battery Monitor Module Replacement (KL9)
GM5877114Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Starter Shield Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Starter Shield Bolt - - 9 N.m (80 lb in) Starter Replacement (LM2)Starter Replacement (L82, L84, L87)Starter Replacement (L3B)
