Air Cleaner Element Replacement

Courtesy of GENERAL MOTORS COMPANY

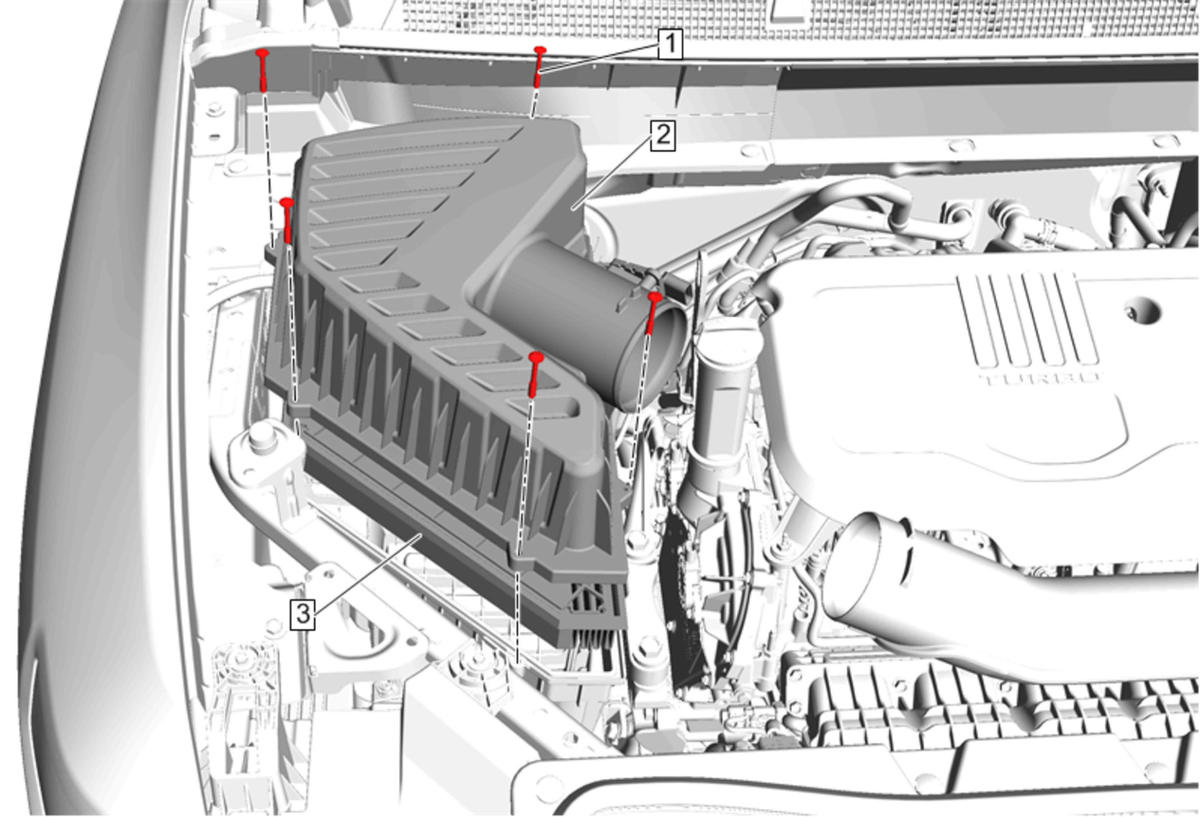

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Duct Replacement Disconnect the electrical connector. Remove wiring harness retainers from air cleaner assembly.
1	Air Cleaner Housing Cover Bolt [5x] CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Air Cleaner Upper Housing
3	Air Cleaner Element
