Crankcase Pressure Sensor Replacement
NOTE:

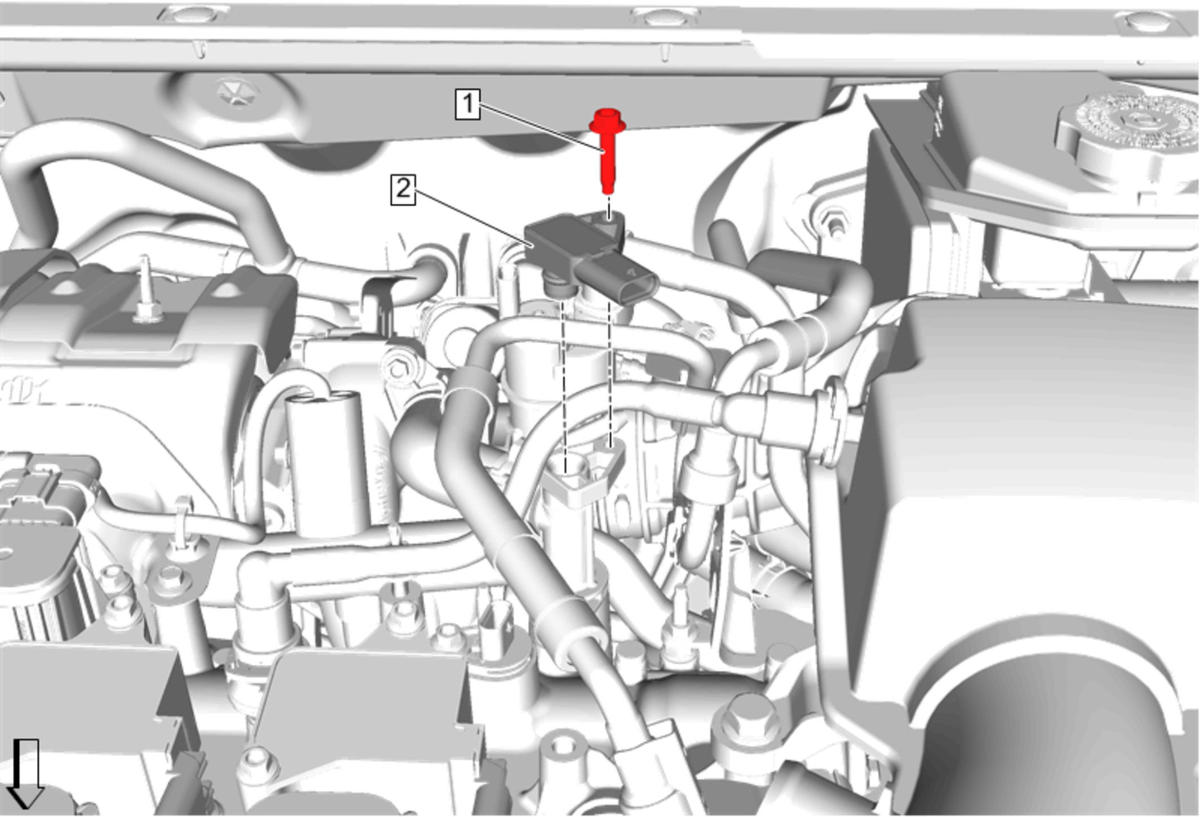

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Cleaner Outlet Resonator Replacement |
|
| 1 | Crankcase Pressure Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in) |
| 2 | Crankcase Pressure Sensor Procedure Disconnect the crankcase pressure sensor electrical wiring harness connector. |
