Engine Oil Temperature Sensor Replacement (FWD)

Courtesy of GENERAL MOTORS COMPANY

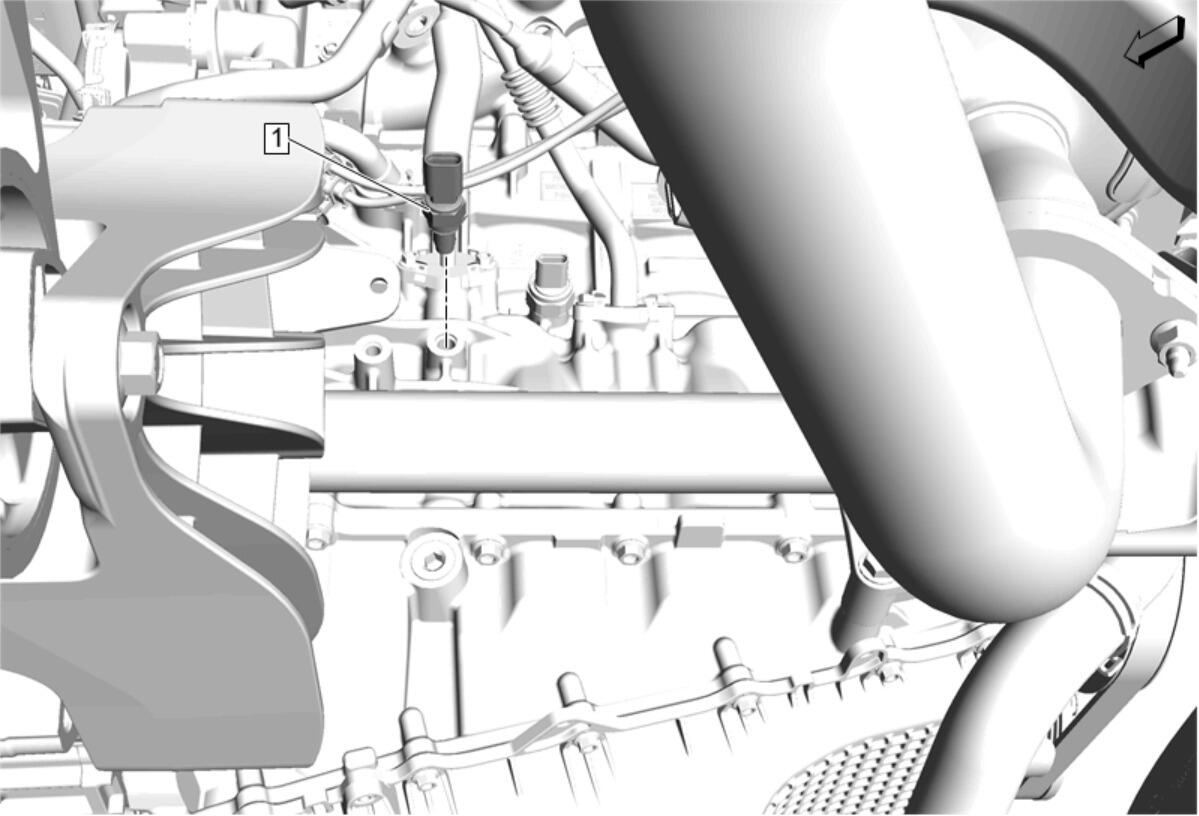

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Engine Oil Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector. Tighten 20 N.m (15 lb ft)
