Installation Procedure

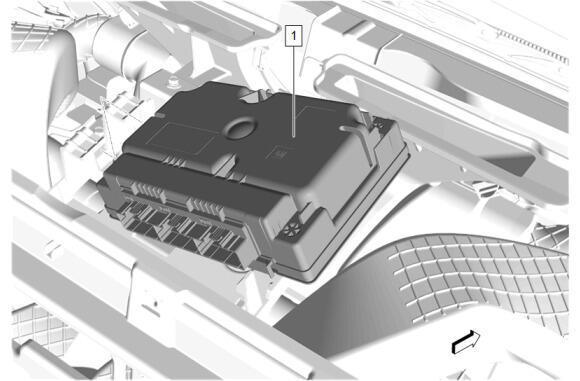

  1. GM6154475Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module (1) - Install

  2. Ensure that the retaining tabs are fully secured.
  3. Connect the electrical connectors.
  4. GM6132763Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Install - Instrument Panel Upper Trim Panel Removal and Installation

  5. Enable the SIR System. SIR Disabling and Enabling
