Installation Procedure

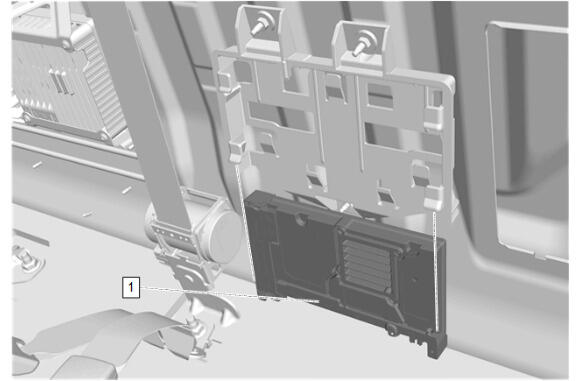

  1. GM6154117Courtesy of GENERAL MOTORS COMPANY

    Telematic Control Module (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connectors.

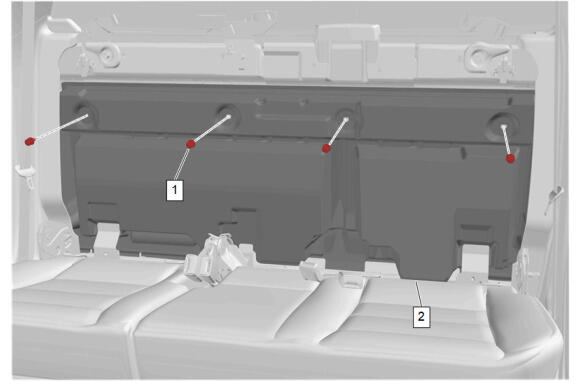

  4. GM6174931Courtesy of GENERAL MOTORS COMPANY

    Body Rear Panel Insulator (2) - Install

  5. Rear End Panel Insulator Retainer (1) - Install [4x]

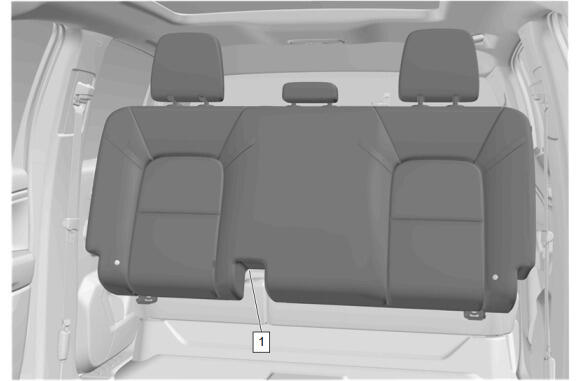

  6. GM6200951Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Cover and Pad (1) - Install

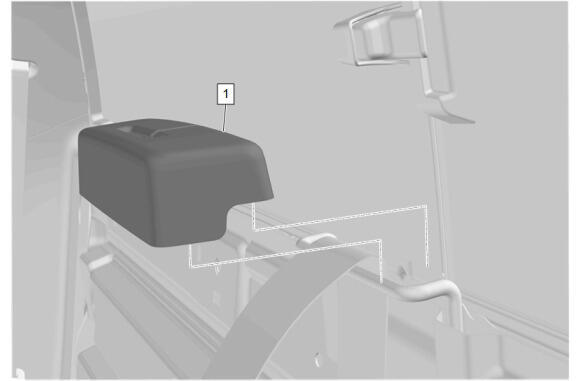

  7. GM6199920Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Belt Guide Trim Cover (1) - Install

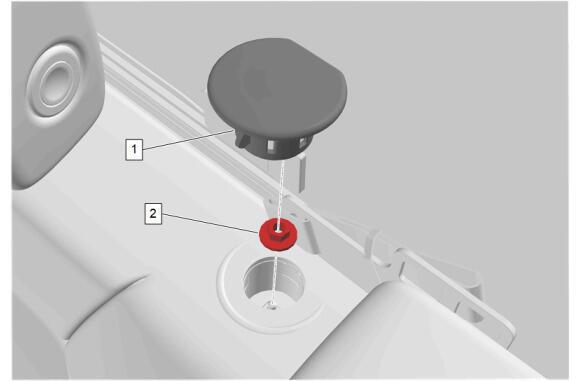

  8. GM6200950Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Rear Seat Support Nut (2) - Install and tighten - Fastener Specifications

  9. Rear Seat Back Side Frame Cap (1) - Install

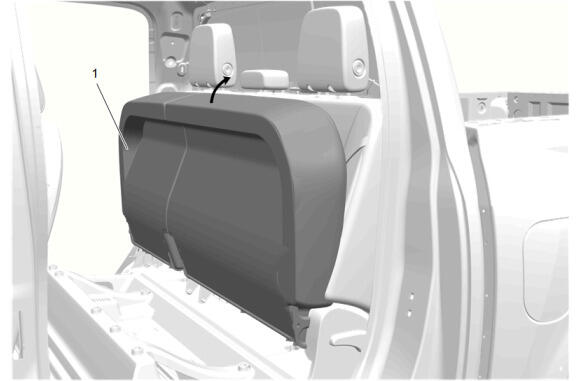

  10. GM6164756Courtesy of GENERAL MOTORS COMPANY

    Fold the left and right rear seat cushions (1) up and into the locked position.

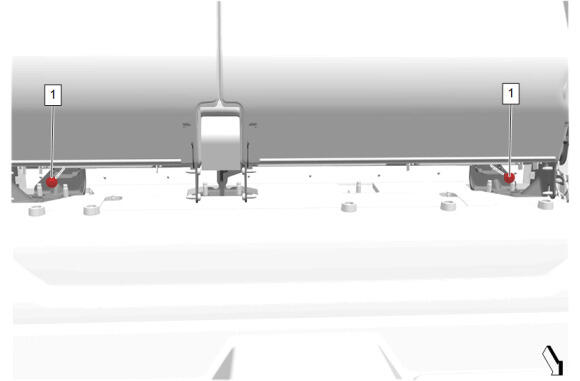

  11. GM6164731Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Bolt (1) - Install and tighten [2x] - Fastener Specifications

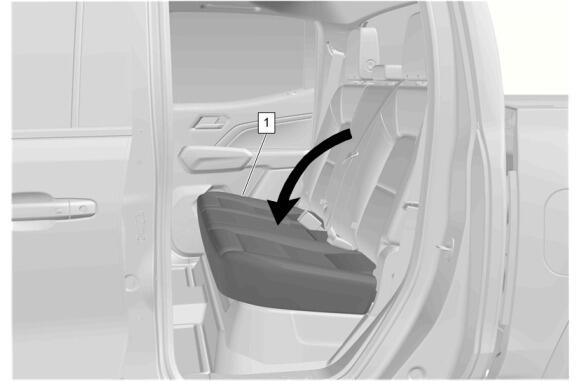

  12. GM6201431Courtesy of GENERAL MOTORS COMPANY

    Place both the left and right rear seat cushions (1) down and into the locked position.

  13. Fold the rear seat head restraints up and to their original positions.
  14. Perform the necessary programming and setup procedure:Control Module References
