Fastener Specifications

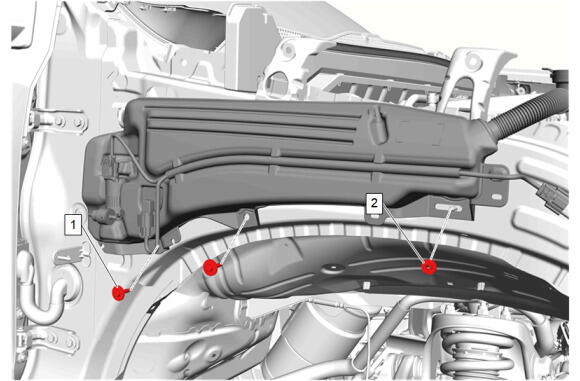

GM6175932

Courtesy of GENERAL MOTORS COMPANY

Windshield Washer Solvent Container

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Windshield Washer Solvent Container Bolt [2x]	-	-	9 N.m (80 lb in)	Windshield Washer Solvent Container Replacement (UXA) , or Windshield Washer Solvent Container Replacement (without UXA)
2	Windshield Washer Solvent Container Nut	-	-	9 N.m (80 lb in)	Windshield Washer Solvent Container Replacement (UXA) , or Windshield Washer Solvent Container Replacement (without UXA)

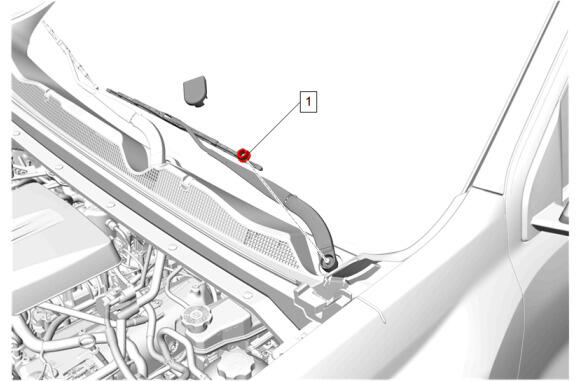

GM6175935

Courtesy of GENERAL MOTORS COMPANY

Windshield Wiper Arm

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Windshield Wiper Arm Nut	-	-	30 N.m (22 lb ft)	Windshield Wiper Arm Replacement

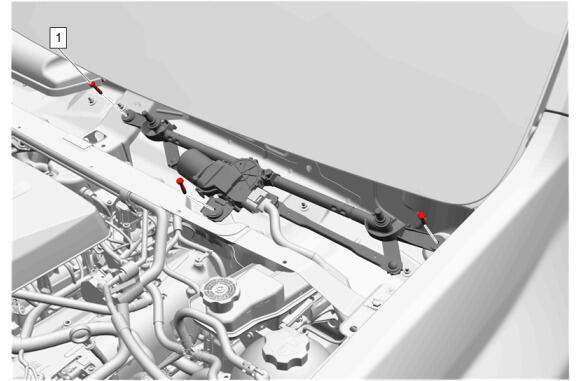

GM6175936

Courtesy of GENERAL MOTORS COMPANY

Windshield Wiper System Module

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Windshield Wiper System Module Bolt [3x]	-	-	9 N.m (80 lb in)	Windshield Wiper System Module Replacement (UXA) , or Windshield Wiper System Module Replacement (without UXA)
