Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

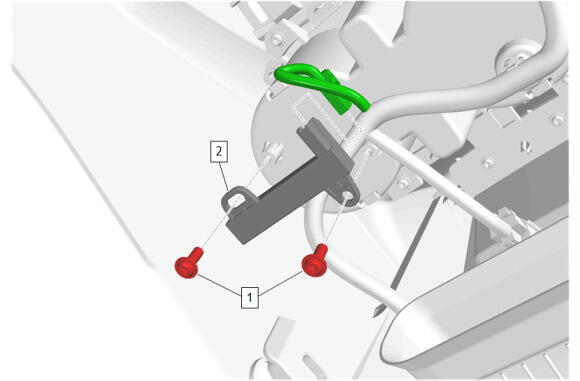

Connect the electrical connector.
Low Frequency Console Antenna (2) - Install

CAUTION:

Refer to Fastener Caution .

Front Floor Console Cup Holder Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

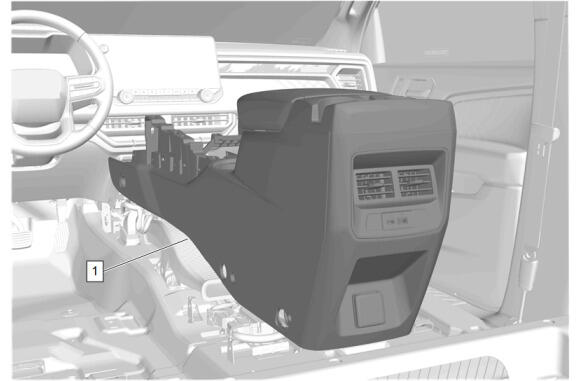

Front Floor Console (1) - Install - Front Floor Console Removal and Installation
