Installation Procedure

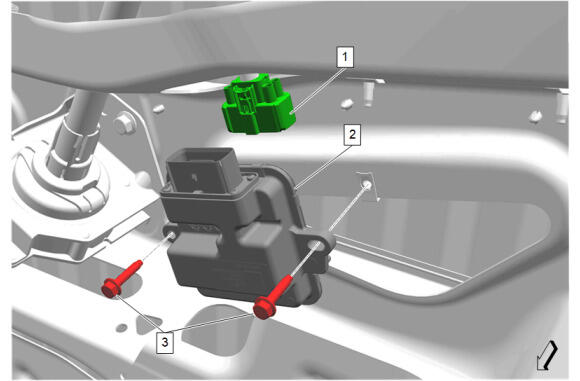

  1. GM6147039Courtesy of GENERAL MOTORS COMPANY

    Trailer Brake Control Module (2) - Install

    2. CAUTION:

    Fastener Caution .

  2. Trailer Brake Power Control Module Bolt (3) - Install and tighten [2x] - Fastener Specifications
  3. Electrical Connector (1) @ Trailer Brake Control Module - Connect
  4. Spare Tire - Install
  5. Remove the support and lower the vehicle.
  6. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
