Fastener Specifications

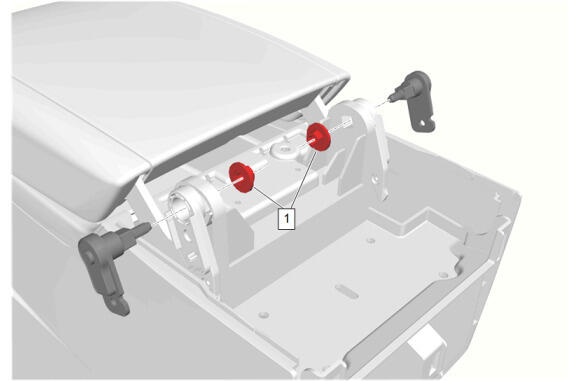

GM6165951Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Armrest Dampener

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Armrest Nut [2x] - - 3 N.m (27 lb in) Front Floor Console Armrest Dampener Replacement

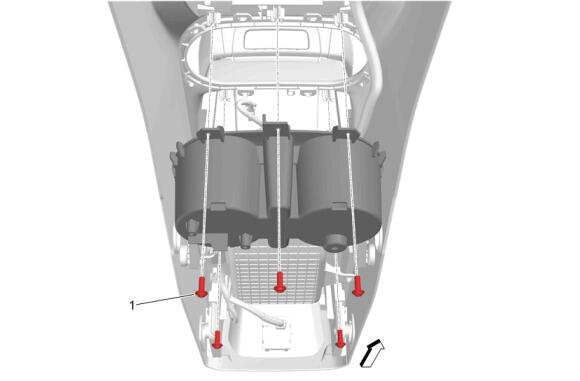

GM6165953Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Cup Holder

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Cup Holder Bolt [5x] - - 1 N.m (9 lb in) Front Floor Console Cup Holder Replacement

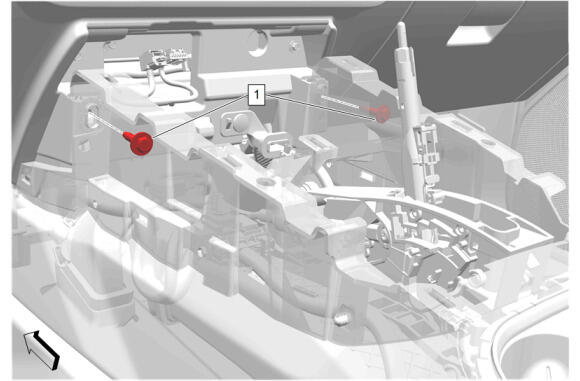

GM6165955Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Extension

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Extension Bolt [2x] - - 9 N.m (80 lb in) Front Floor Console Removal and Installation

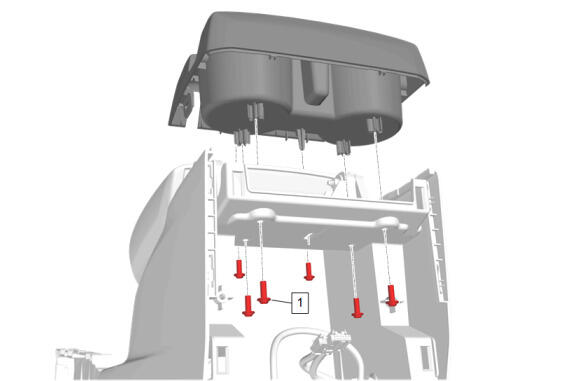

GM6165957Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Rear Cup Holder

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Rear Compartment Bolt [6x] - - 1 N.m (9 lb in) Front Floor Console Rear Cup Holder Replacement

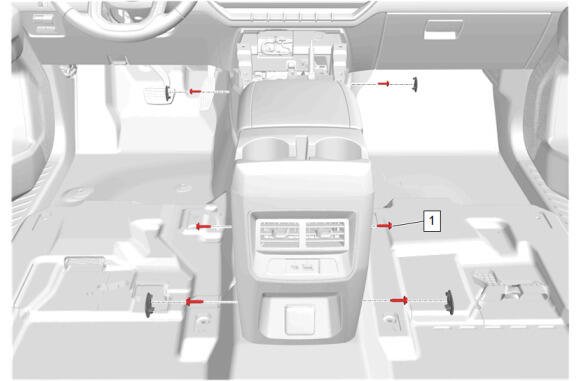

GM6165977Courtesy of GENERAL MOTORS COMPANY
Front Floor Lower Console

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Lower Console Bolt [6x] - - 9 N.m (80 lb in) Front Floor Console Removal and Installation

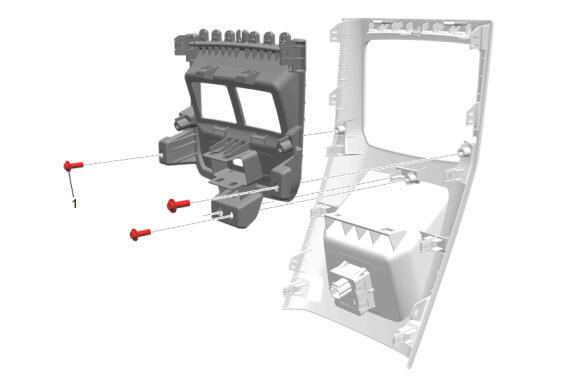

GM6165979Courtesy of GENERAL MOTORS COMPANY
Front Floor Rear Console Trim Plate

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Rear Console Trim Plate Bolt [3x] - - 1 N.m (9 lb in) Front Floor Rear Console Trim Plate Replacement

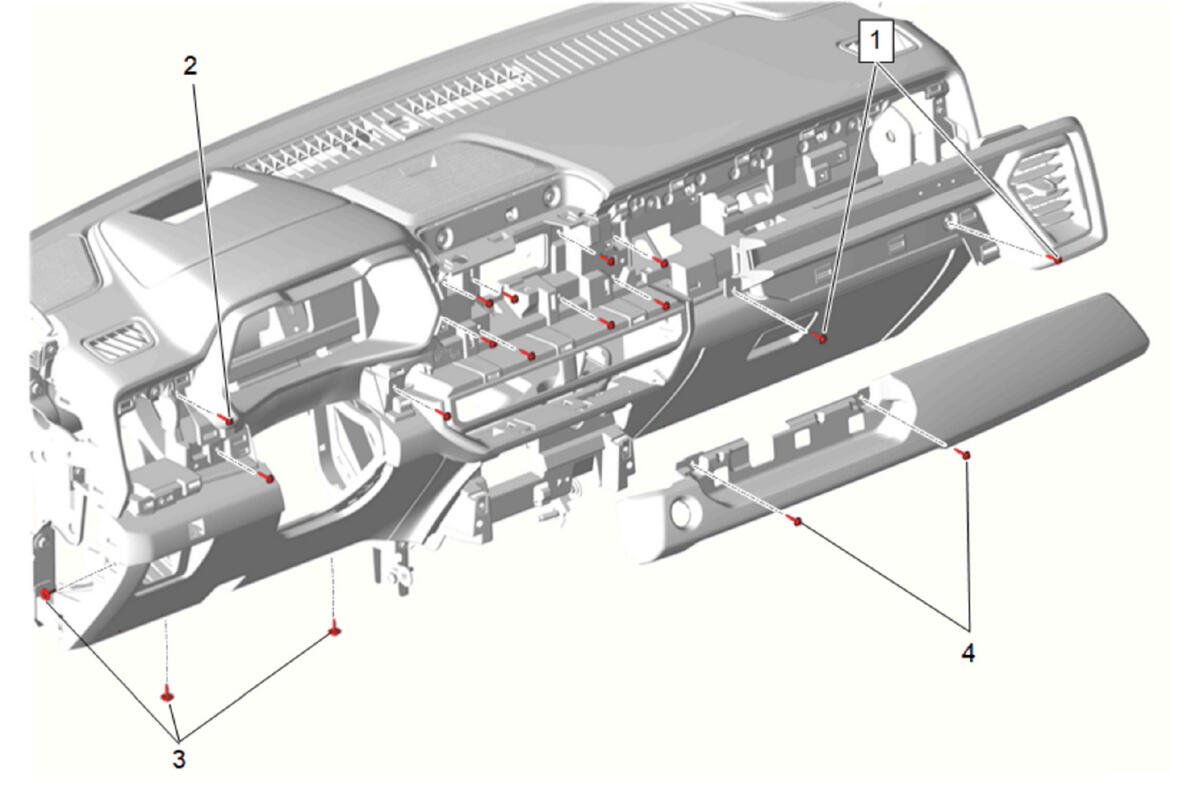

GM6143672Courtesy of GENERAL MOTORS COMPANY
Instrument Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Bolt [2x] - - 2.5 N.m (22 lb in) Instrument Panel Trim Plate Applique Replacement
2 Instrument Panel Cluster Trim Plate Bolt [11x] - - 2.5 N.m (22 lb in) Instrument Panel Cluster Trim Plate Replacement
3 Instrument Panel Knee Bolster Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Knee Bolster Replacement
4 Instrument Panel Trim Pad Bolt [2x] - - 2.5 N.m (22 lb in) Instrument Panel Trim Pad Replacement - Right Side

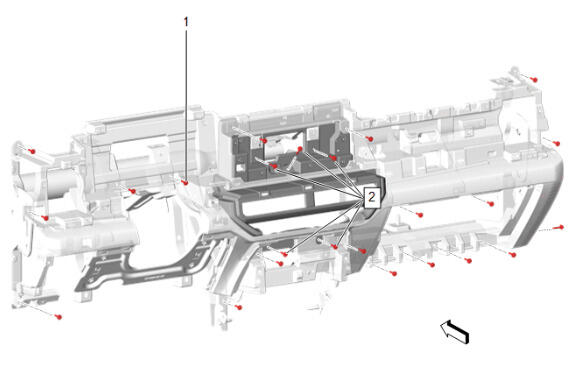

GM6143675Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Carrier

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Carrier Bolt [19x] - - 2.5 N.m (22 lb in) Instrument Panel Carrier Replacement
Instrument Panel Carrier Removal and Installation
2 Instrument Panel Center Trim Panel Bolt [5x] - - 2.5 N.m (22 lb in) Instrument Panel Carrier Replacement
Instrument Panel Carrier Removal and Installation

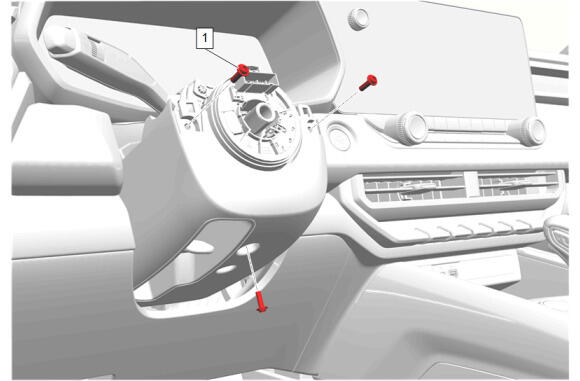

GM6175954Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Steering Column Lower Trim Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Steering Column Lower Trim Cover Bolt [3x] - - 3.3 N.m (29 lb in) Instrument Panel Steering Column Lower Trim Cover Replacement

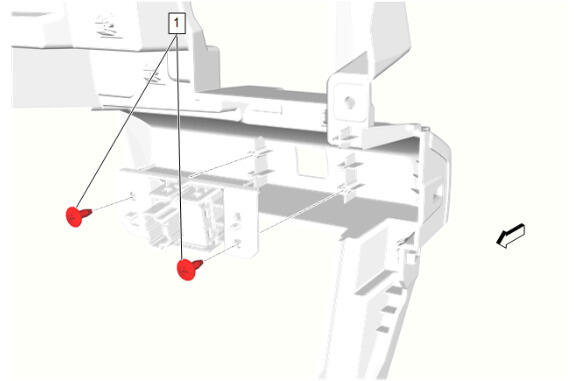

GM6176049Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Switch Trim Plate Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Switch Trim Plate Bolt [2x] - - 0.8 N.m (7 lb in) Instrument Panel Carrier Replacement

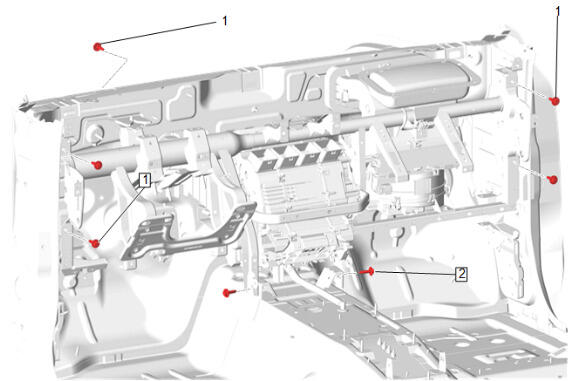

GM6144478Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Tie Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Tie Bar Bolt [5x] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement
2 Instrument Panel Tie Bar Brace Bolt [2x] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement

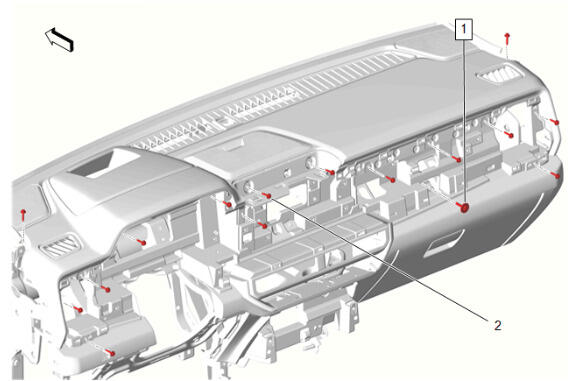

GM6143680Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Upper Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Airbag Bolt - - 9 N.m (80 lb in) Instrument Panel Upper Trim Panel Replacement
Instrument Panel Upper Trim Panel Removal and Installation
2 Instrument Panel Upper Trim Panel Bolt [15x] - - 2.5 N.m (22 lb in) Instrument Panel Upper Trim Panel Replacement
Instrument Panel Upper Trim Panel Removal and Installation

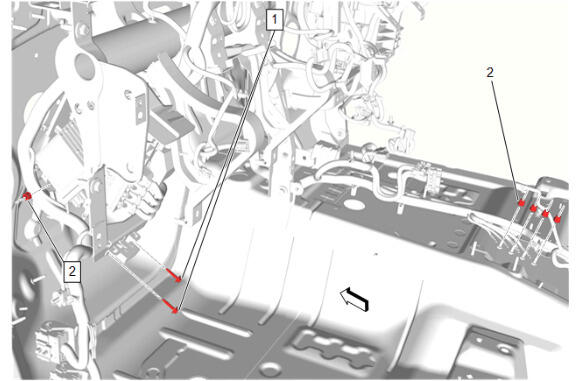

GM6159817Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Wiring Harness

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Wiring Harness Connector Bolt [2x] - - 2.5 N.m (22 lb in) Instrument Panel Tie Bar Replacement
Instrument Panel Wiring Harness Replacement (UV6) , or Instrument Panel Wiring Harness Replacement (without UV6)
2 Instrument Panel Wiring Harness Ground Nut [5x] - - 6 N.m (53 lb in) Instrument Panel Tie Bar Replacement
Instrument Panel Wiring Harness Replacement (UV6) , or Instrument Panel Wiring Harness Replacement (without UV6)

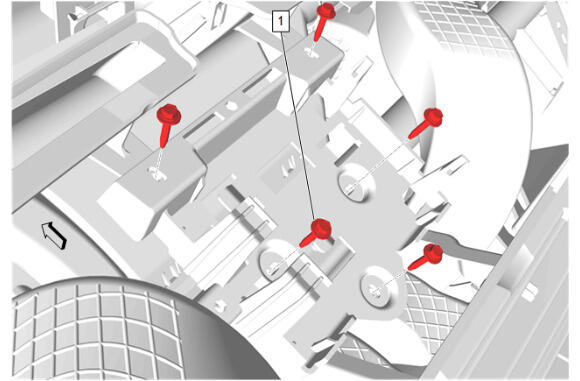

GM6159815Courtesy of GENERAL MOTORS COMPANY
Serial Data Gateway Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Serial Data Gateway Module Bracket Bolt [5x] - - 2.5 N.m (22 lb in) Instrument Panel Tie Bar Replacement
Instrument Panel Wiring Harness Replacement (UV6) , or Instrument Panel Wiring Harness Replacement (without UV6)

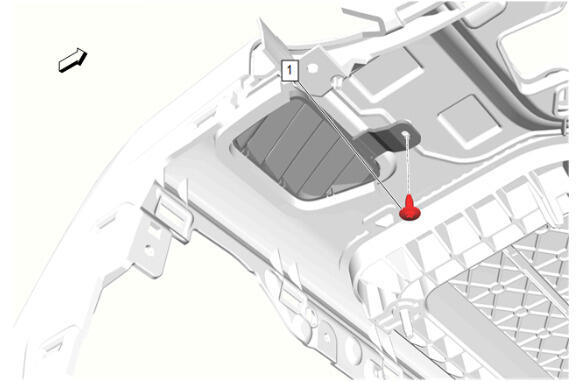

GM6147926Courtesy of GENERAL MOTORS COMPANY
Side Window Defogger Outlet Grille

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Side Window Defogger Outlet Bolt - - 1.0 N.m (9 lb in) Instrument Panel Upper Trim Panel Replacement
