Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

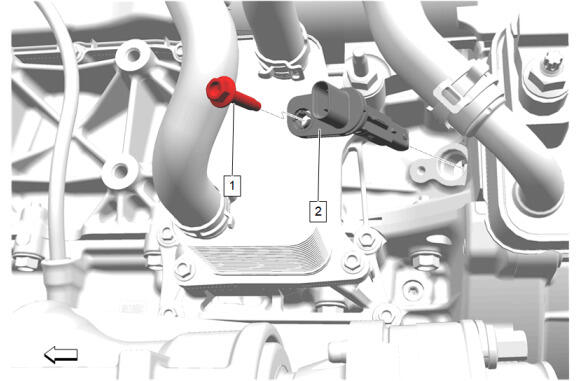

Crankshaft Position Sensor (2) - Install

CAUTION:

Refer to Fastener Caution .

Crankshaft Position Sensor Bolt (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Install underbody panels as necessary. Underbody Panel Component Locator
Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
