Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. GM6142315Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Fuse Block Nut (1) - Remove [2x]

  3. GM6142319Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Clip (1) - Remove [2x]

  4. Battery Distribution Engine Compartment Fuse Block (2) - Reposition

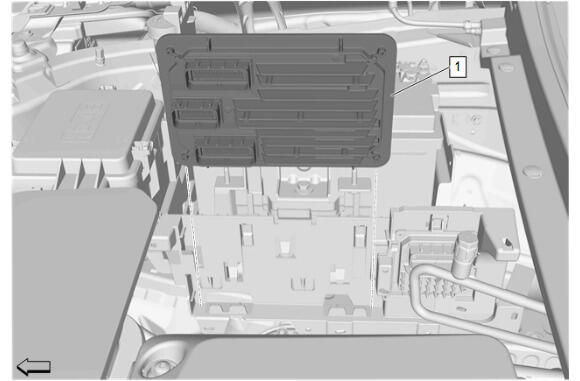

  5. GM6142324Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors.

  6. Engine Control Module (1) - Remove
