Installation Procedure
Intake Air Duct (2) - Install
- Intake Air Duct Retainer (1) - Install [2x]

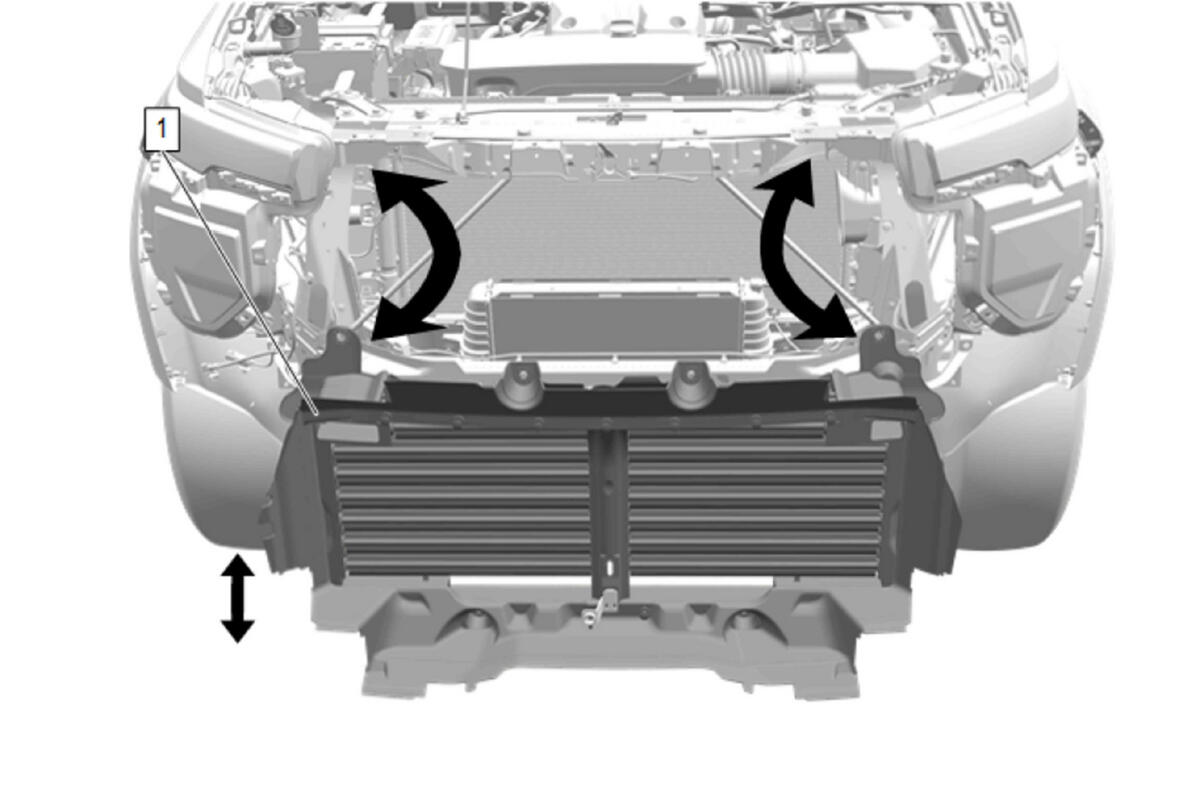

Front Bumper Shutter (1) - Install
- CAUTION:
Refer to Fastener Caution .

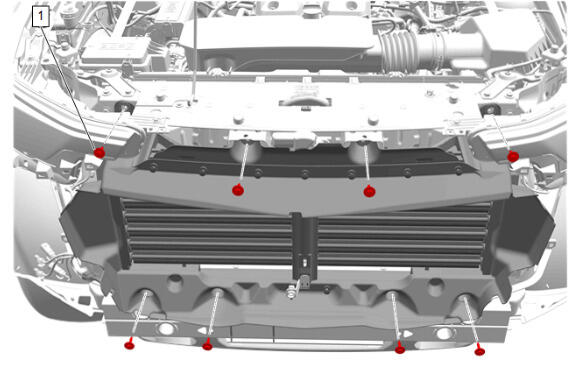

Front Bumper Shutter Bolt (1) - Install and tighten [8x] - Fastener Specifications

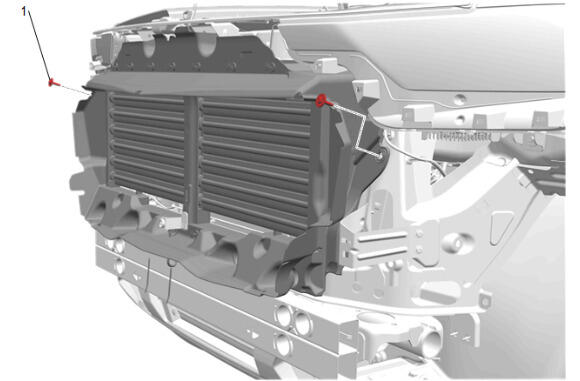

Front Bumper Shutter Bolt (1) - Install and tighten [2x] - Fastener Specifications

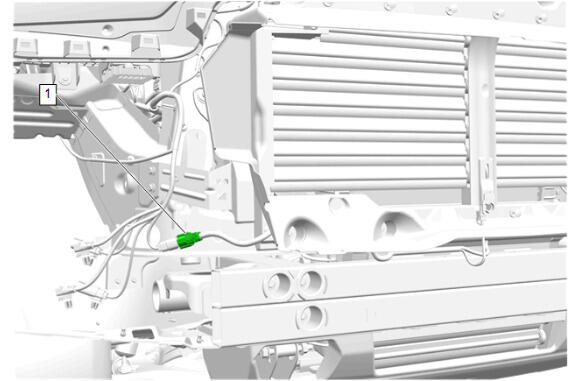

Connect the electrical connector. (1)

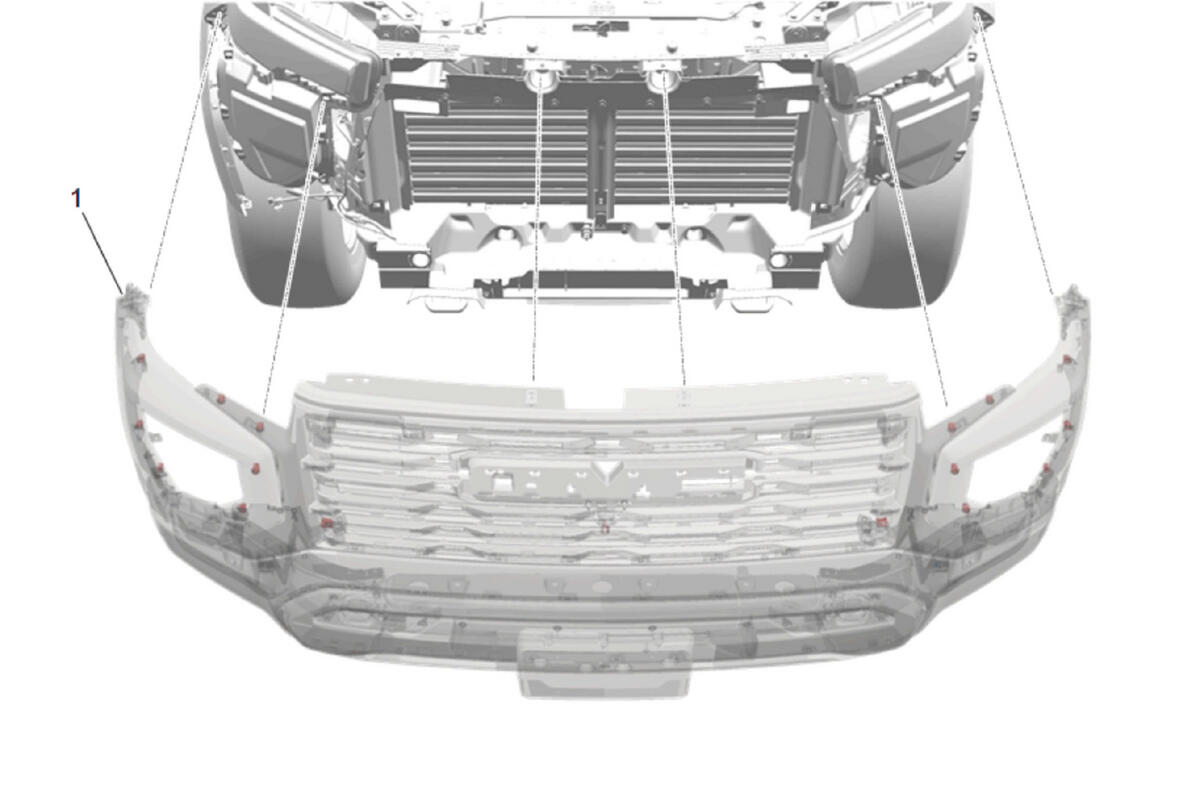

With the aid of an assistant, install the fascia. (1) Front Bumper Fascia Removal and Installation (without SD0) , or Front Bumper Fascia Removal and Installation (SD0)
