Fastener Specifications

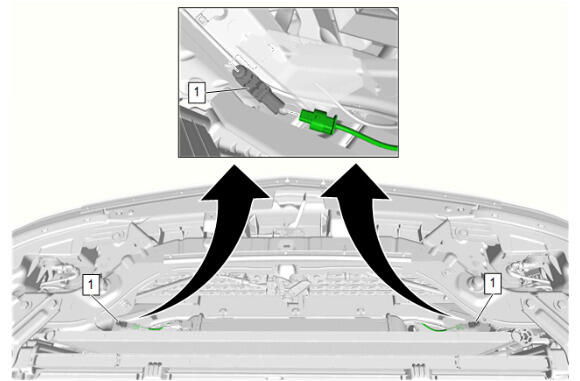

GM6182980Courtesy of GENERAL MOTORS COMPANY
Airbag Front End Discriminating Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Front End Discriminating Sensor [2x] - - 7.5 N.m (66 lb in) Airbag Front End Discriminating Sensor Replacement

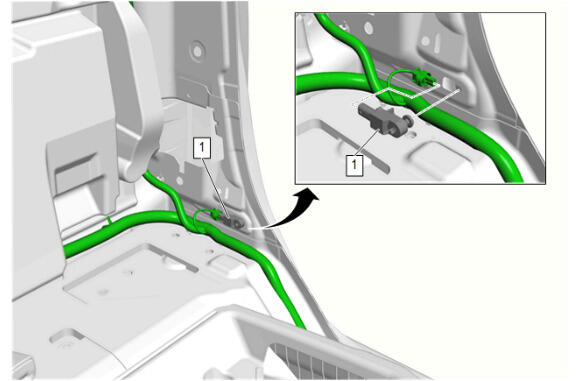

GM6182984Courtesy of GENERAL MOTORS COMPANY
Airbag Side Impact Rear Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Side Impact Rear Sensor - - 7.5 N.m (66 lb in) Airbag Side Impact Rear Sensor Replacement

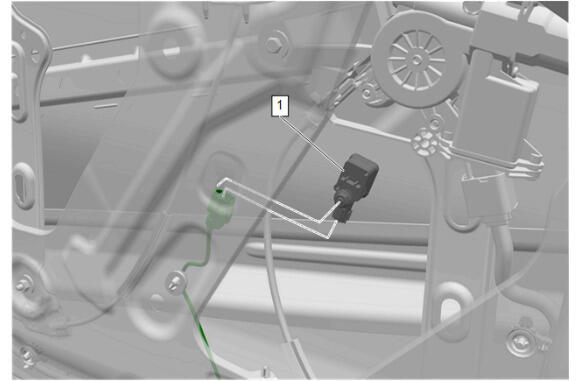

GM6182985Courtesy of GENERAL MOTORS COMPANY
Airbag Side Impact Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Side Impact Sensor - - 7.5 N.m (66 lb in) Airbag Side Impact Sensor Replacement

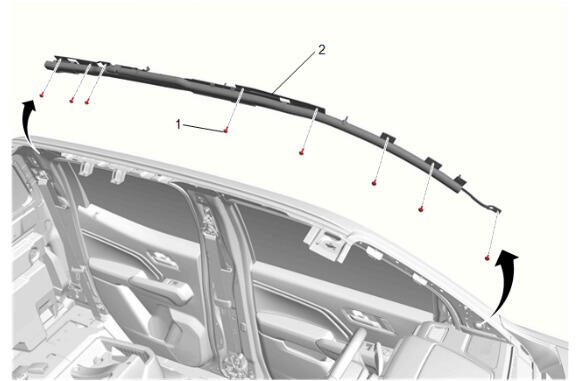

GM6182981Courtesy of GENERAL MOTORS COMPANY
Front and Rear Row Roof Rail Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Roof Rail Airbag Bolt [8x] - - 9 N.m (80 lb in) Front and Rear Row Roof Rail Airbag Replacement (without CAC) , or Front and Rear Row Roof Rail Airbag Replacement (CAC)

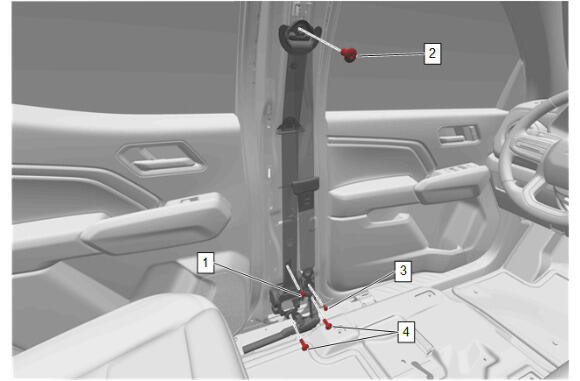

GM6164938Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Retractor and Anchor Plate Tensioner

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Retractor Bolt - Yes 9 N.m (80 lb in) Front Seat Belt Retractor Replacement
2 Front Seat Belt Guide Bolt - - 45 N.m (33 lb ft) Front Seat Belt Retractor Replacement
3 Front Seat Belt Anchor Bolt - Yes 9 N.m (80 lb in) Front Seat Belt Anchor Plate Tensioner Replacement
4 Front Seat Belt Anchor Plate Tensioner Bolt [2x] - - 45 N.m (33 lb ft) Front Seat Belt Anchor Plate Tensioner Replacement

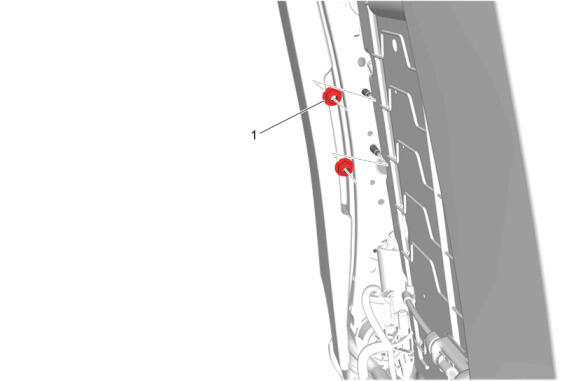

GM6201394Courtesy of GENERAL MOTORS COMPANY
Front Seat Outboard Seat Back Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Side Airbag Nut [2x] - - 7 N.m (62 lb in) Front Seat Outboard Seat Back Airbag Replacement

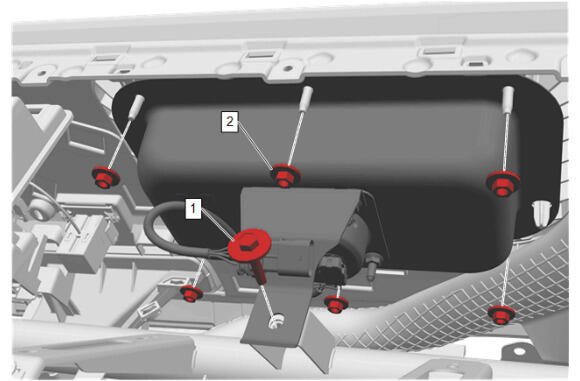

GM6182982Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Airbag Bolt - - 9 N.m (80 lb in) Instrument Panel Airbag Replacement
2 Instrument Panel Airbag Nut [6x] - - 9 N.m (80 lb in) Instrument Panel Airbag Replacement

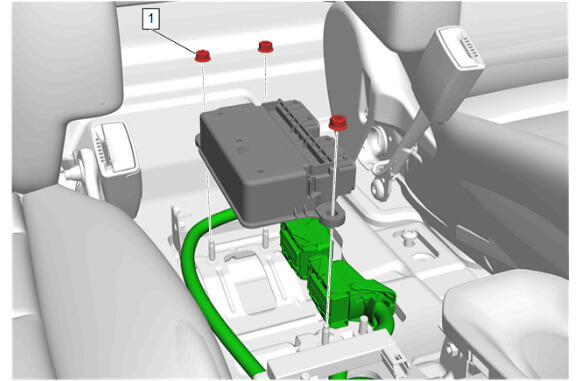

GM6164939Courtesy of GENERAL MOTORS COMPANY
Restraints Control Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Sensing and Diagnostic Module Nut [3x] - - 9 N.m (80 lb in) Restraints Control Module Replacement
GM6164943Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Airbag Bolt [2x] - - 9 N.m (80 lb in) Steering Wheel Airbag Replacement
