Installation Procedure

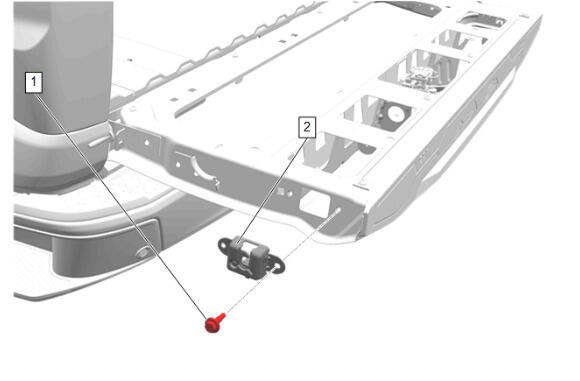

  1. GM6163360Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Latch (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Pickup Box Endgate Latch Bolt (1) - Install and tighten - Fastener Specifications

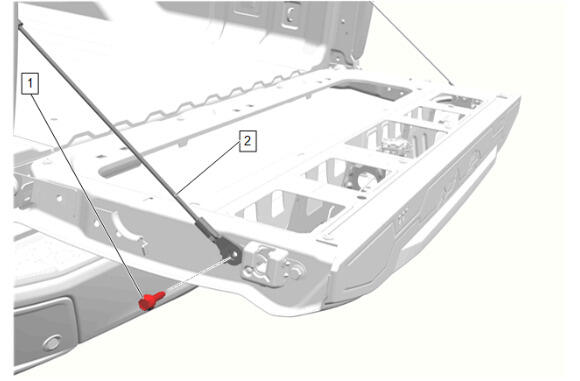

  3. GM6163358Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Cable (2) - Install

  4. Pickup Box Endgate Latch Bolt (1) - Install and tighten - Fastener Specifications

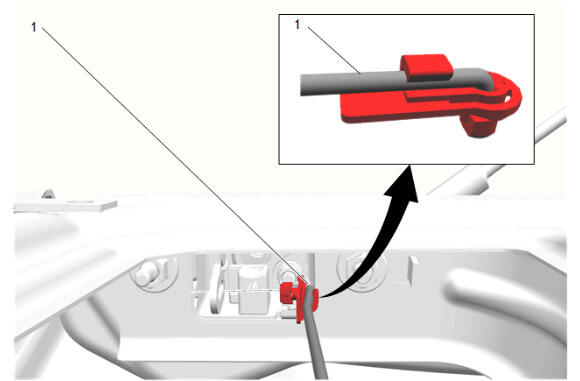

  5. GM6163356Courtesy of GENERAL MOTORS COMPANY

    Install the pickup box endgate latch rod (1) to the pickup box endgate latch.

  6. GM6145434Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Access Hole Cover (2) - Install

  7. Pickup Box Endgate Inner Panel Access Hole Cover Bolt - Install and tighten [8x] - Fastener Specifications
