Installation Procedure

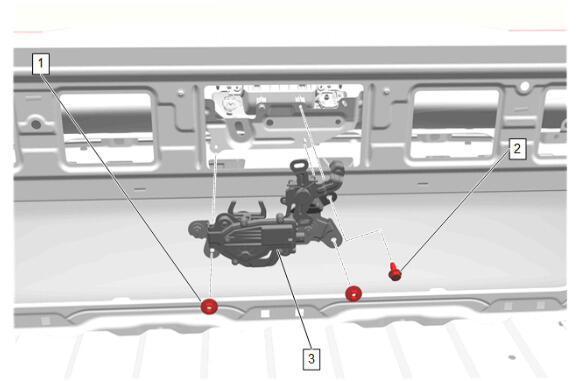

  1. GM6163284Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Lock Actuator (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Pickup Box Endgate Latch Handle Bolt (2) - Install and tighten - Fastener Specifications
  3. Pickup Box Endgate Lock Actuator Nut (1) - Install and tighten [2x] - Fastener Specifications
  4. Connect the electrical connector.

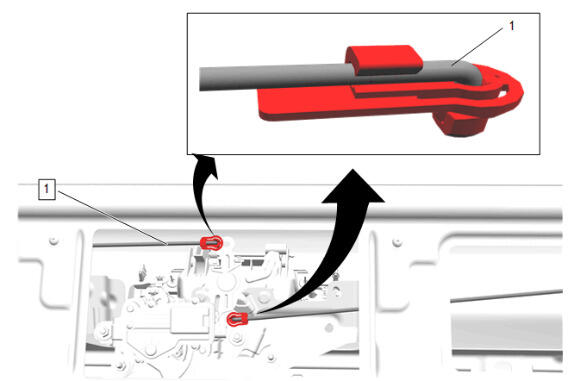

  5. GM6163283Courtesy of GENERAL MOTORS COMPANY

    Install the both pickup box endgate latch rod (1) to the pickup box endgate lock actuator.

  6. GM6145434Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Access Hole Cover Panel (2) - Install

  7. Pickup Box Endgate Access Hole Cover Panel Bolt (1) - Install and tighten [8x] - Fastener Specifications
  8. Close The Endgate
