Fastener Specifications

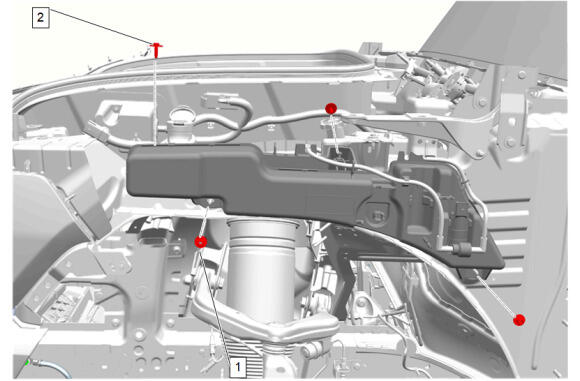

GM5830247Courtesy of GENERAL MOTORS COMPANY
Windshield Washer Solvent Container

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Washer Solvent Container Nut [2x] - - 9N.m (80 lb in) Windshield Washer Solvent Container Replacement
2 Windshield Washer Solvent Container Bolt [2x] - - 9N.m (80 lb in) Windshield Washer Solvent Container Replacement

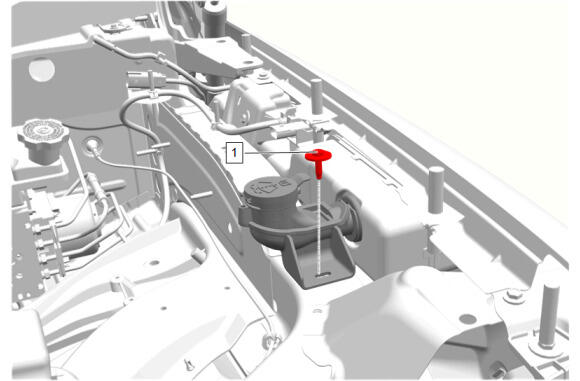

GM5830235Courtesy of GENERAL MOTORS COMPANY
Windshield Washer Solvent Container Filler Tube

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Washer Solvent Container Bolt - - 9N.m (80 lb in) Windshield Washer Solvent Container Filler Tube Replacement

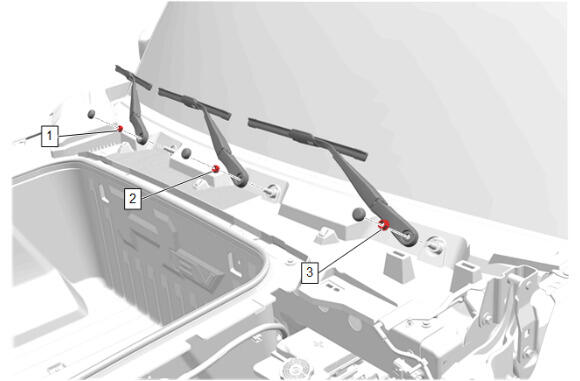

GM5810481Courtesy of GENERAL MOTORS COMPANY
Windshield Wiper Arm

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Wiper Arm Nut - - 30N.m (22 lb ft) Windshield Wiper Arm Replacement - Right Side
2 Windshield Wiper Arm Nut - - 30N.m (22 lb ft) Windshield Wiper Arm Replacement - Center
3 Windshield Wiper Arm Nut - - 30N.m (22 lb ft) Windshield Wiper Arm Replacement - Left Side

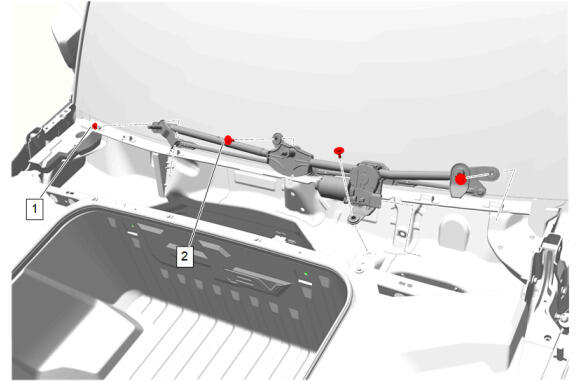

GM5830202Courtesy of GENERAL MOTORS COMPANY
Windshield Wiper System Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Wiper System Module Nut - - 9N.m (80 lb in) Windshield Wiper System Module Replacement
2 Windshield Wiper System Module Bolt [3x] - - 9N.m (80 lb in) Windshield Wiper System Module Replacement
