Installation Procedure

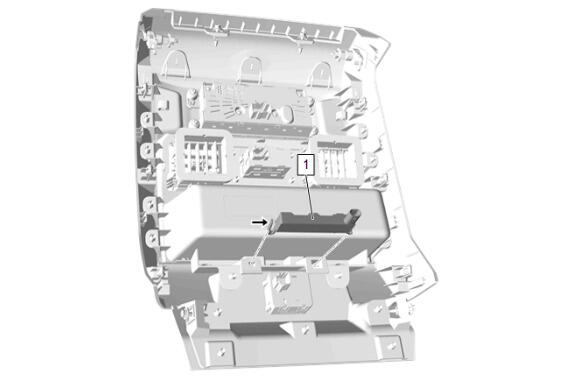

  1. GM5795273Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Console Number 2 Antenna (1) - Install

  2. Secure the retaining tab.
  3. GM5786877Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Front Floor Console Rear Trim Panel (1) - Install
  5. GM5786876Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cover Bolt (2) - Install and tighten [2x] - Fastener Specifications

  6. Front Floor Console Rear Trim Plate (1) - Install
  7. Close the armrest cover.
  8. GM5786875Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cover Bolt (2) - Install and tighten - Fastener Specifications

  9. Front Floor Console Bolt Access Hole Cover (1) - Install
  10. GM5786874Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cover Bolt (2) - Install and tighten - Fastener Specifications

  11. Front Floor Console Bolt Access Hole Cover (1) - Install
  12. Return the seat to its original position.
  13. GM6039681Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Mat (1) - Install

  14. GM6029241Courtesy of GENERAL MOTORS COMPANY

    Tire Air Compressor (2) - Install

  15. Tire Repair Sealer and Tire Air Compressor Retainer (1) - Install and hand tighten
