Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

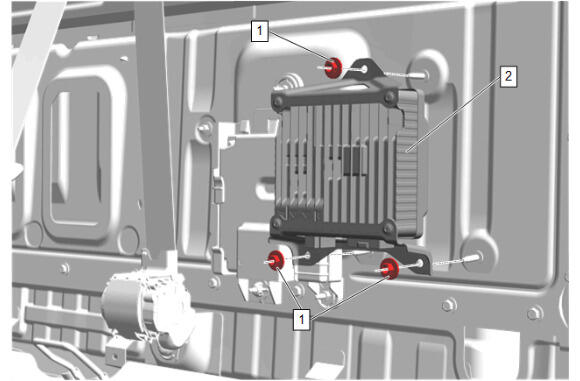

Accessory AC and DC Power Control Module (2) - Install

CAUTION:

Refer to Fastener Caution .

Accessory AC and DC Power Control Module Nut (1) - Install and tighten [ 3x] - Fastener Specifications
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

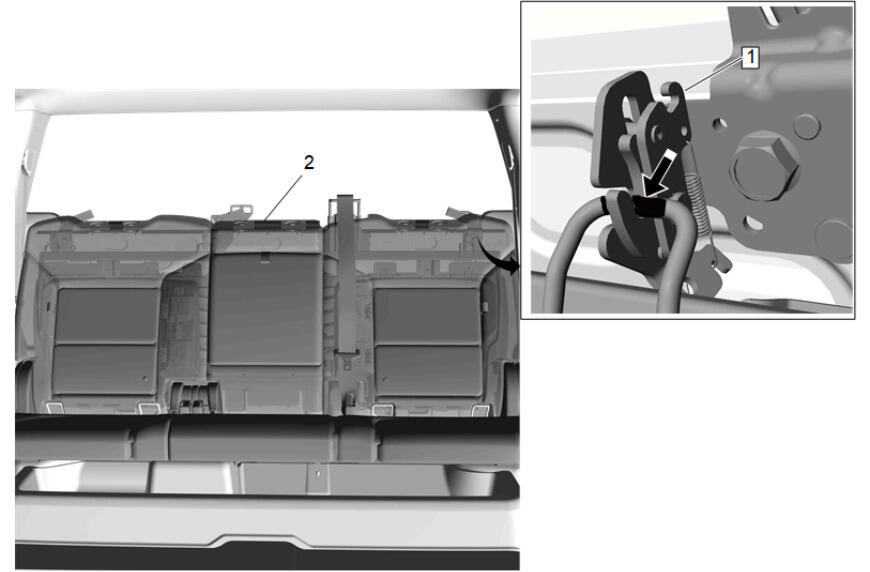

Rear Seat Back Cushion (2) - Install - Rear Seat Back Cushion Removal and Installation
