Installation Procedure

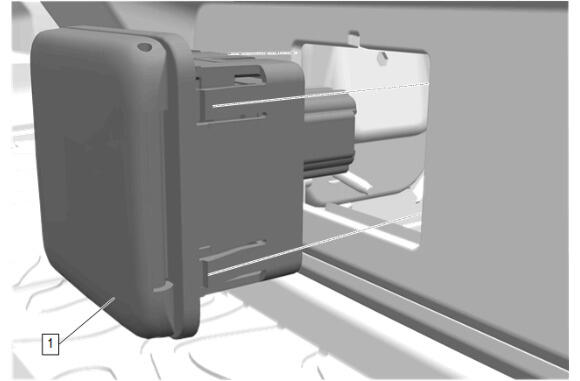

  1. GM5776756Courtesy of GENERAL MOTORS COMPANY

    Accessory Power Receptacle (1) - Install

  2. GM5786877Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  3. Front Floor Console Rear Trim Panel (1) - Install
  4. GM5786876Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Rear Cover Bolt (2) - Install and tighten [ 2x] - Fastener Specifications

  5. Front Floor Console Rear Trim Plate (1) - Install
  6. Close the armrest cover.
  7. GM5786875Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cover Bolt (2) - Install and tighten - Fastener Specifications

  8. Front Floor Console Bolt Access Hole Cover (1) - Install
  9. GM5786874Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cover Bolt (2) - Install and tighten - Fastener Specifications

  10. Front Floor Console Bolt Access Hole Cover (1) - Install
  11. Return the seat to its original position.
  12. GM6039681Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Mat (1) - Install

  13. GM6029241Courtesy of GENERAL MOTORS COMPANY

    Tire Air Compressor (2) - Install

  14. Tire Repair Sealer and Tire Air Compressor Retainer (1) - Install and hand tighten
