Fastener Specifications

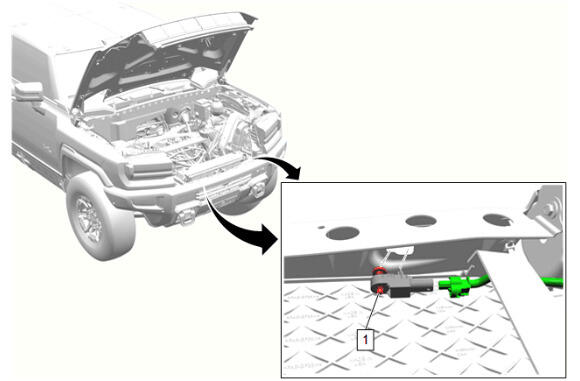

GM5815485Courtesy of GENERAL MOTORS COMPANY
Airbag Front End Discriminating Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Front End Discriminating Sensor - - 7.5 N.m (66 lb in) Airbag Front End Discriminating Sensor Replacement

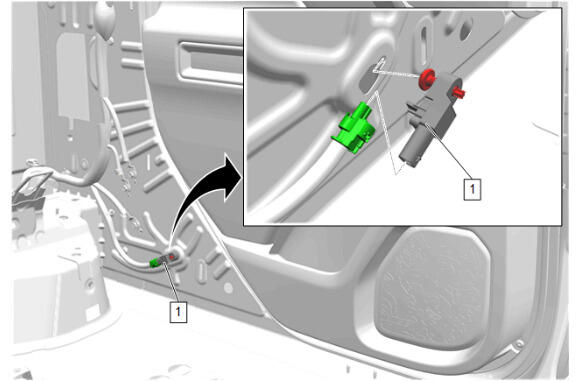

GM5812934Courtesy of GENERAL MOTORS COMPANY
Airbag Side Impact Rear Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Side Impact Rear Sensor - - 7.5 N.m (66 lb in) Airbag Side Impact Rear Sensor Replacement

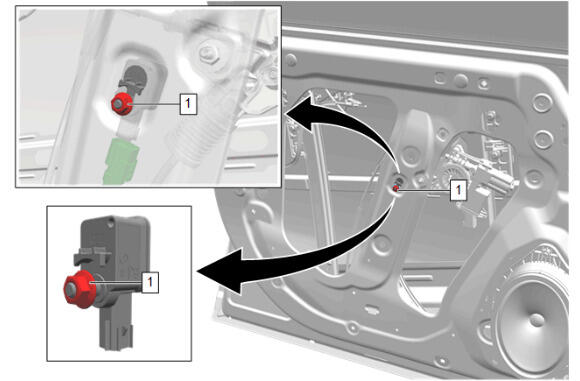

GM5815521Courtesy of GENERAL MOTORS COMPANY
Airbag Side Impact Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Side Impact Sensor - - 7.5 N.m (66 lb in) Airbag Side Impact Sensor Replacement

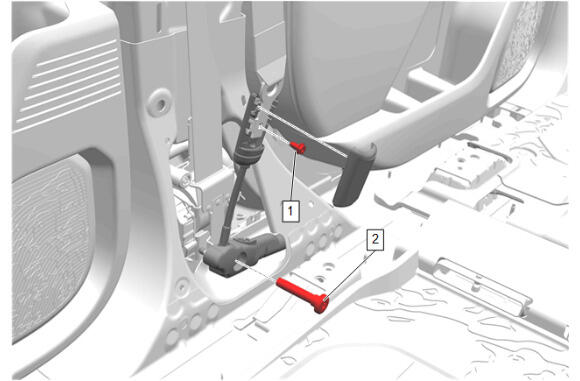

GM5810584Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Anchor Plate Tensioner

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Anchor Plate Tensioner Bolt- Upper - - 9 N.m (80 lb in) Front Seat Belt Anchor Plate Tensioner Replacement
2 Front Seat Belt Anchor Plate Tensioner Bolt- Lower - - 45 N.m (33 lb ft) Front Seat Belt Anchor Plate Tensioner Replacement

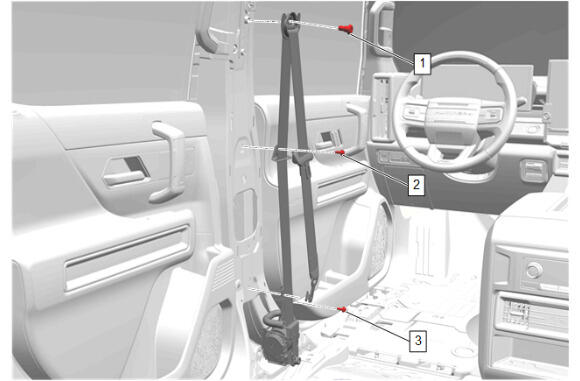

GM5838598Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Retractor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Retractor Bolt- Upper - - 45 N.m (33 lb ft) Front Seat Belt Retractor Replacement
2 Front Seat Belt Intermediate Guide Bolt - - 9 N.m (80 lb in) Front Seat Belt Retractor Replacement
3 Front Seat Belt Retractor Bolt- Lower - - 9 N.m (80 lb in) Front Seat Belt Retractor Replacement

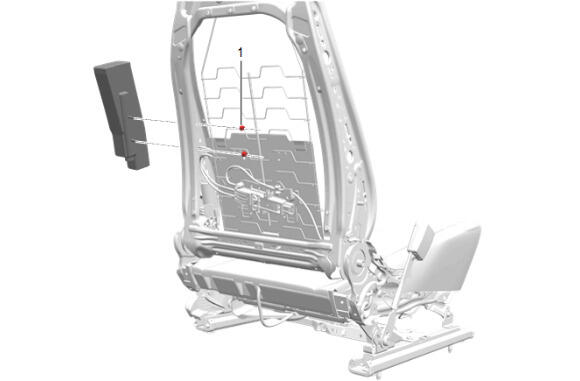

GM5816657Courtesy of GENERAL MOTORS COMPANY
Front Seat Outboard Seat Back Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Outboard Seat Back Airbag Nut [2x] - - 4 N.m (36 lb in) Front Seat Outboard Seat Back Airbag Replacement

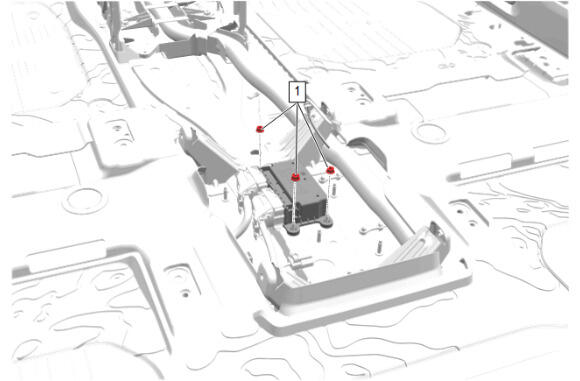

GM5821194Courtesy of GENERAL MOTORS COMPANY
Restraints Control Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Sensing and Diagnostic Module Nut [3x] - - 9 N.m (80 lb in) Restraints Control Module Replacement

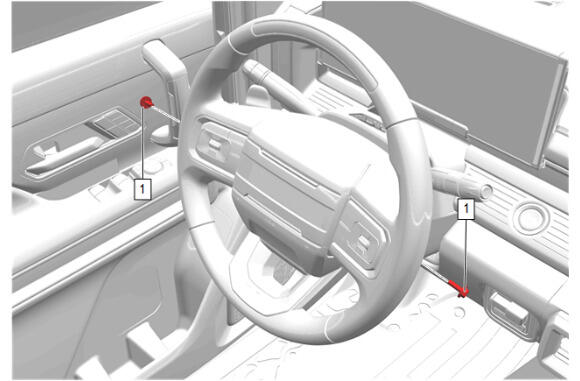

GM5810567Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Airbag Bolt [2x] - - 9 N.m (80 lb in) Steering Wheel Airbag Replacement
